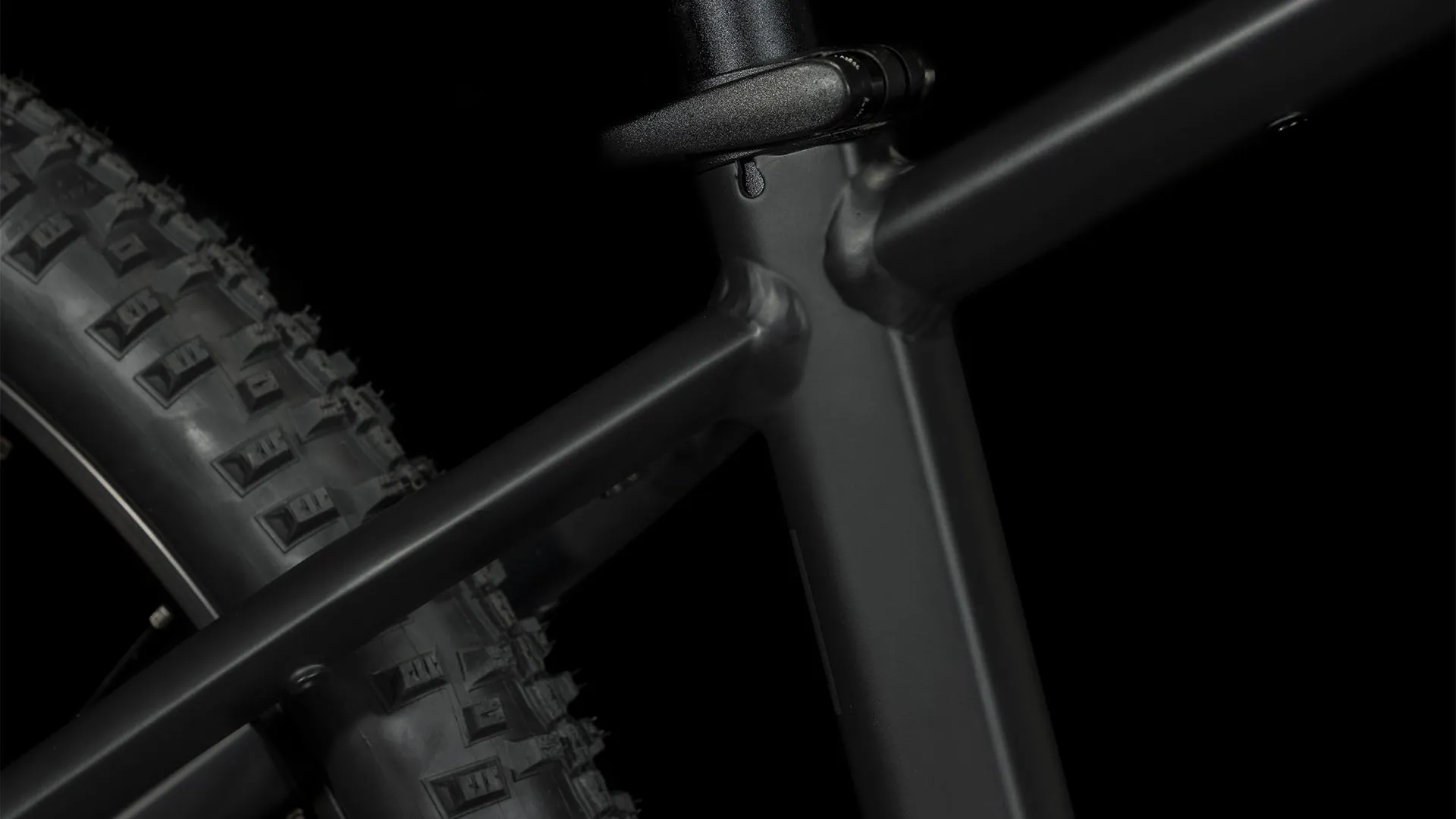

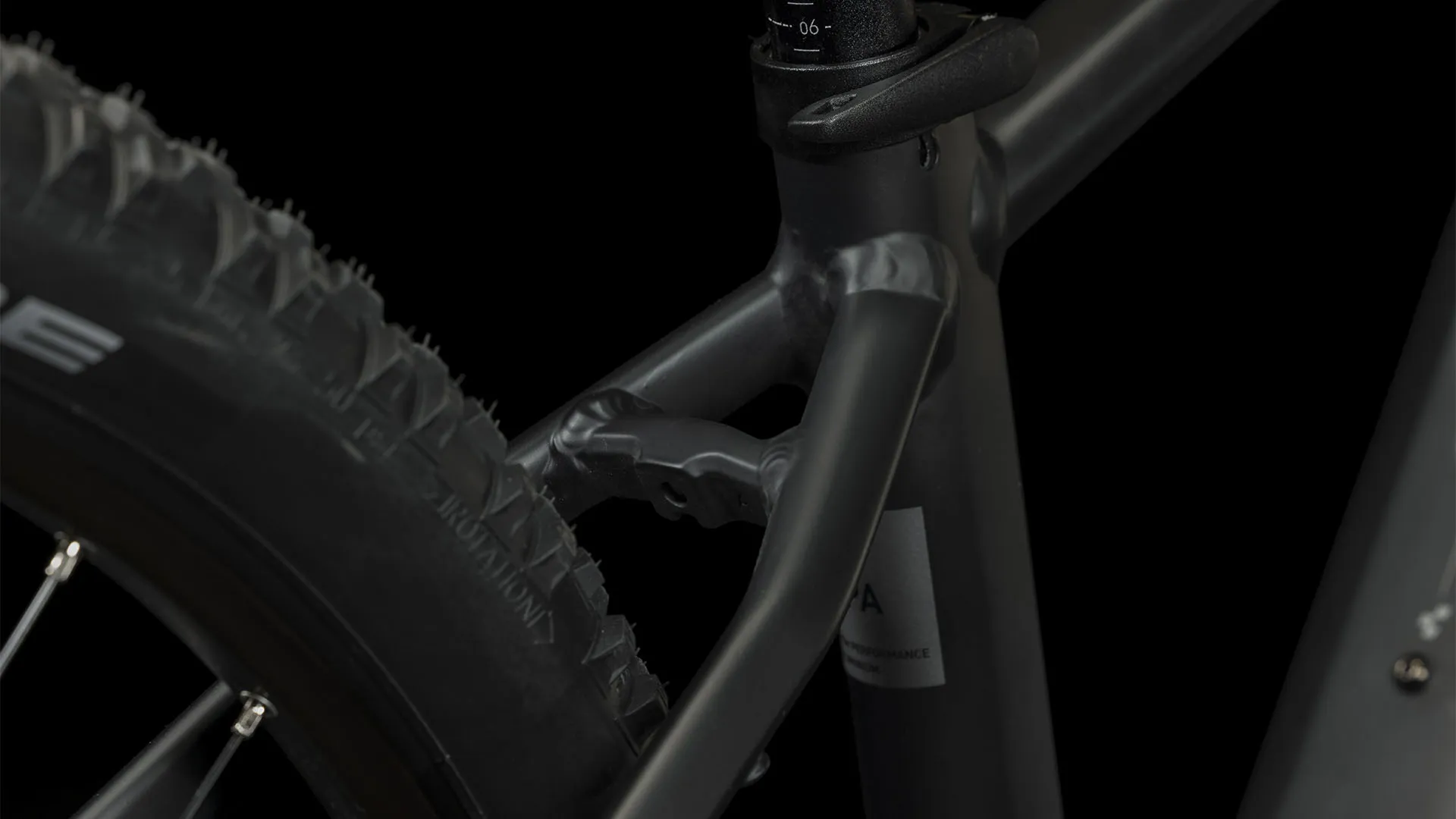

Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Fully Integrated Battery, Internal Cable Routing, Kickstand/Fender/Carrier Mounting Parts
Size

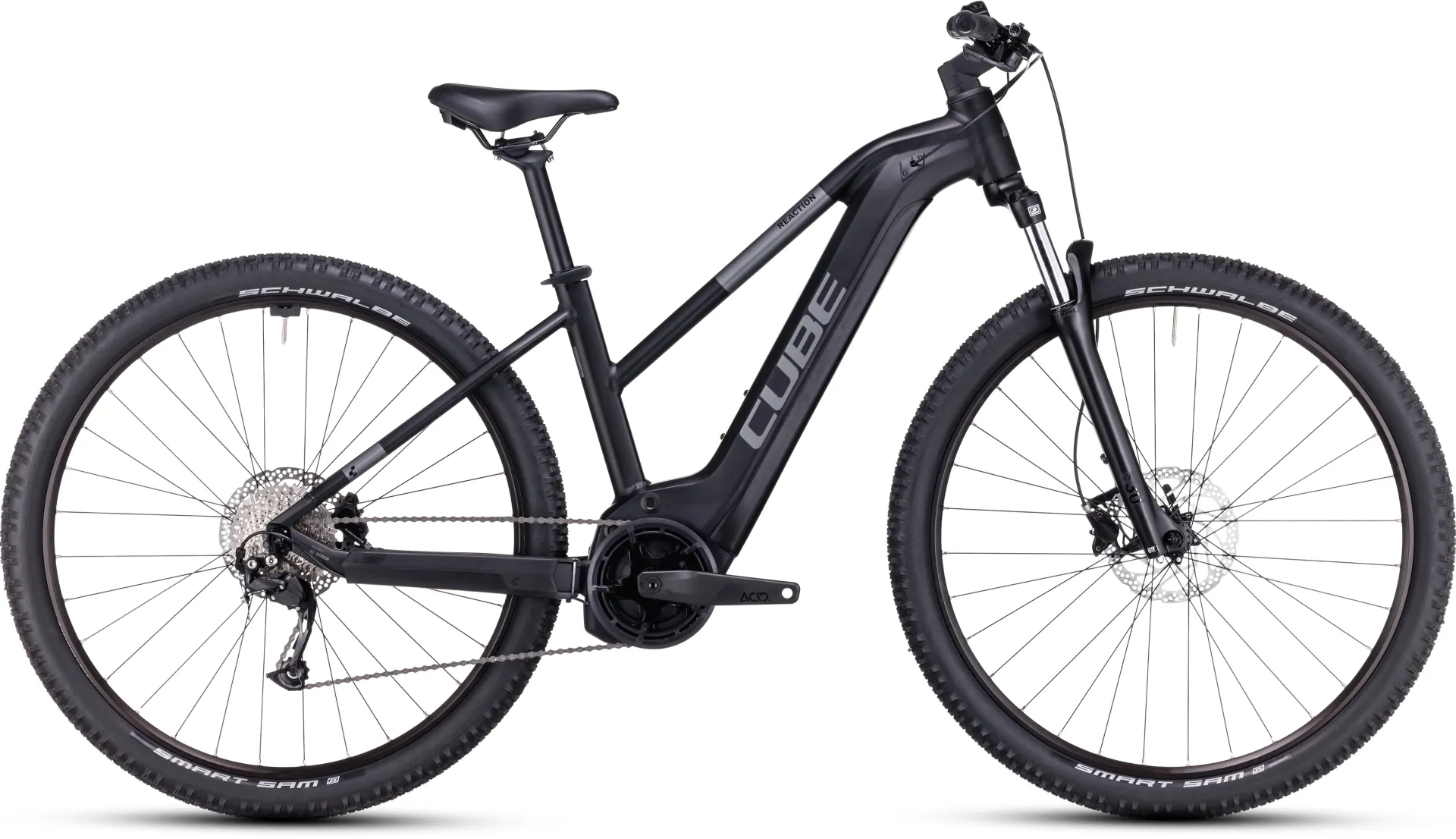

Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24"); Trapeze: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22")

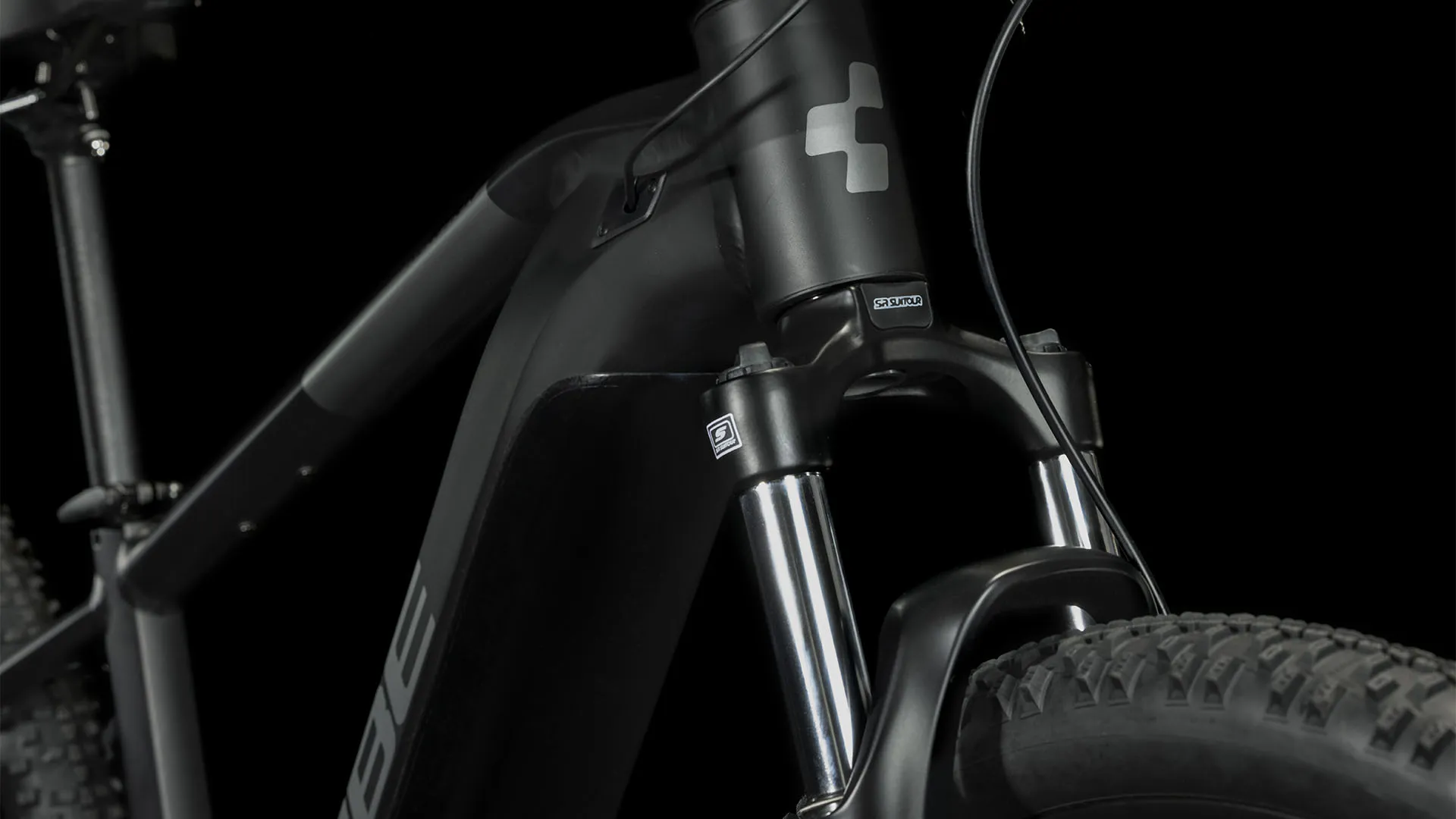

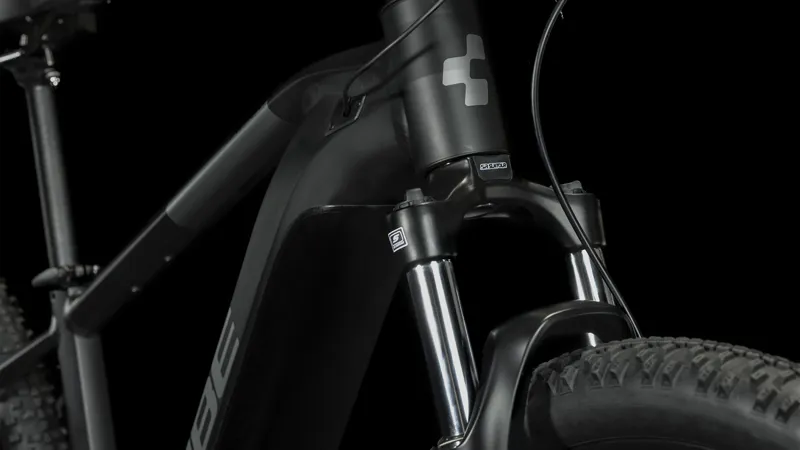

Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drive Unit
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 500
Remote
Bosch LED Remote
Charger
Bosch 4A
Brake System
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180)
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shifters
Shimano SL-M3100-R, Rapidfire-Plus
Crankset
ACID E-Crank, 38T, 175mm
Cassette
Shimano CS-HG201, 11-36T
Chain
KMC X9
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Stem
CUBE Performance Stem E-MTB, 31.8mm
Grips
ACID React Pro
Headset
ACROS AZF-1031, 1 1/8" straight, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
Rodi Blackrock 23, 32H, Disc, Tubeless Ready
Tyre
Schwalbe Smart Sam, Active, 2.35
Seat Post
CUBE Performance Post, 30.9mm
Saddle
Natural Fit Sequence
Pedals
ACID PP MTB
Weight
23,2 kg
Colour
black´n´grey
Art. No
633101
Price
SRP* 2499 GBP
*recommended retail price Because of the problems in the delivery chain arising from the current COVID-19 situation, the bike can be delivered with modifications.
