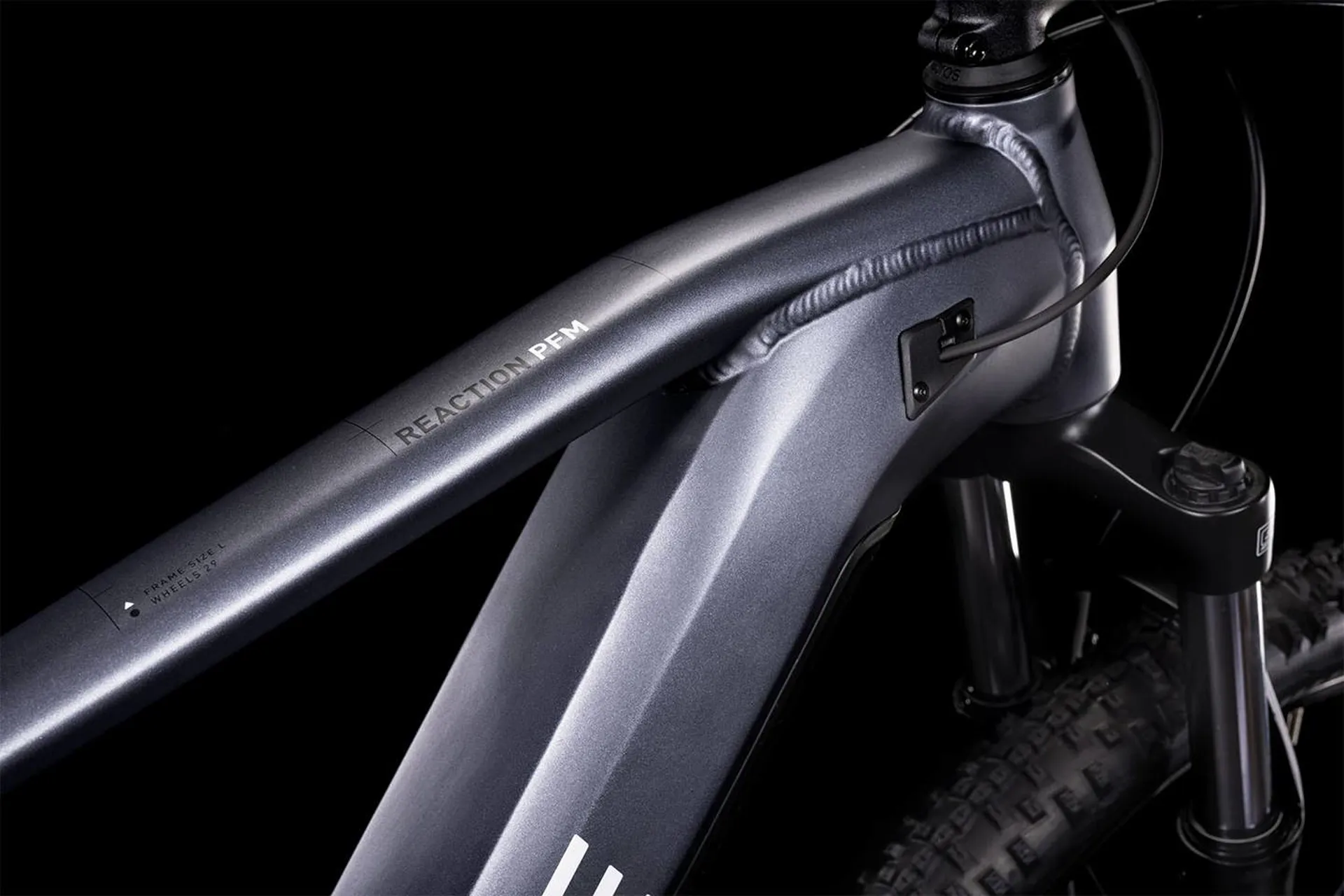

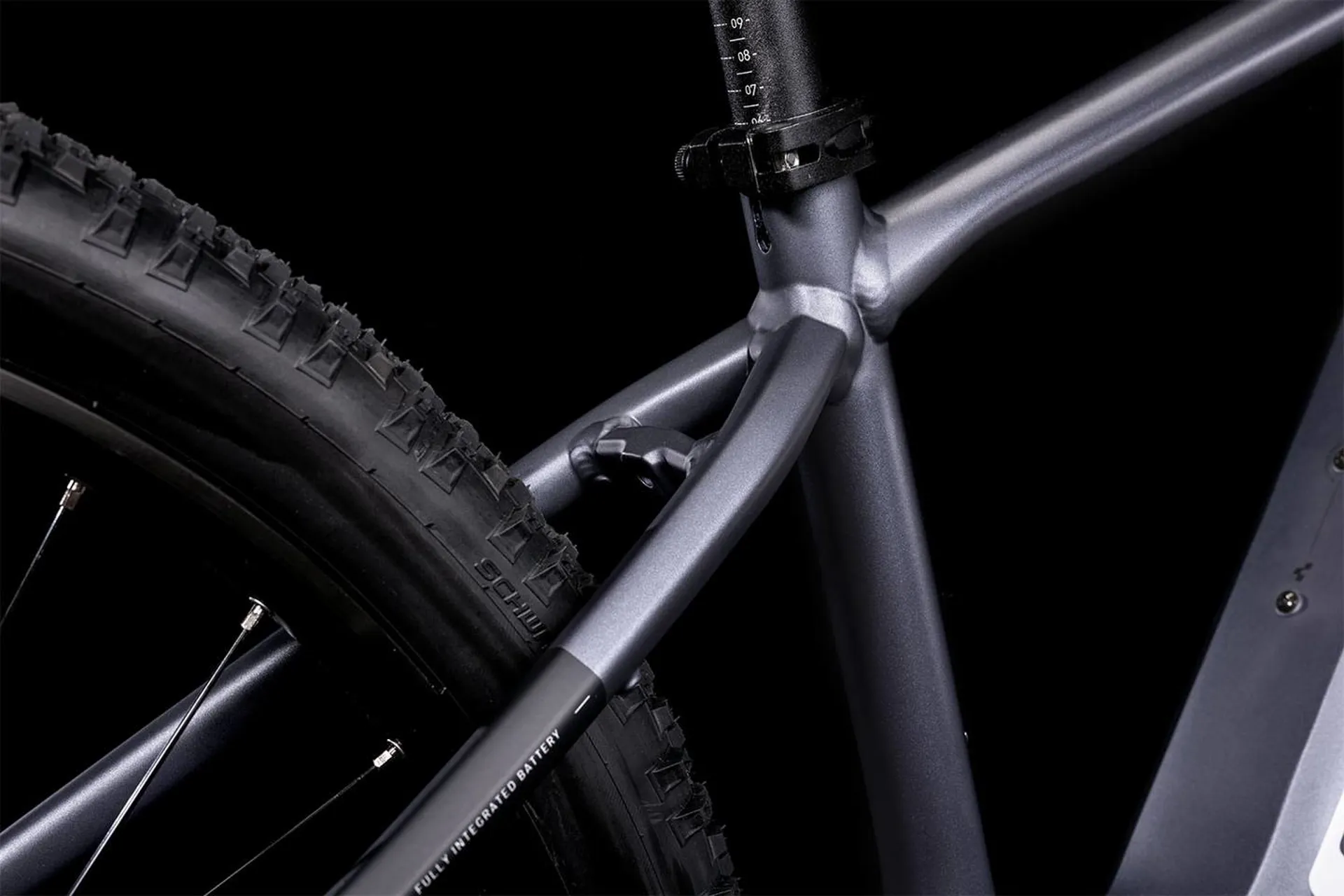

frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
size
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19")
fork
SR Suntour NVX30 Coil, 100mm
drive unit
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
battery
Bosch PowerTube 500
display
Bosch Purion
charger
Bosch 2A
brake system
Shimano BR-MT200, Hydr. Disc Brake (180/180)
rear derailleur
Shimano RD-M3100-SGS, 9-Speed
shifters
Shimano SL-M3100-R, Rapidfire-Plus
crankset
ACID E-Crank, 175mm, 38T
cassette
Shimano CS-HG201, 11-36T

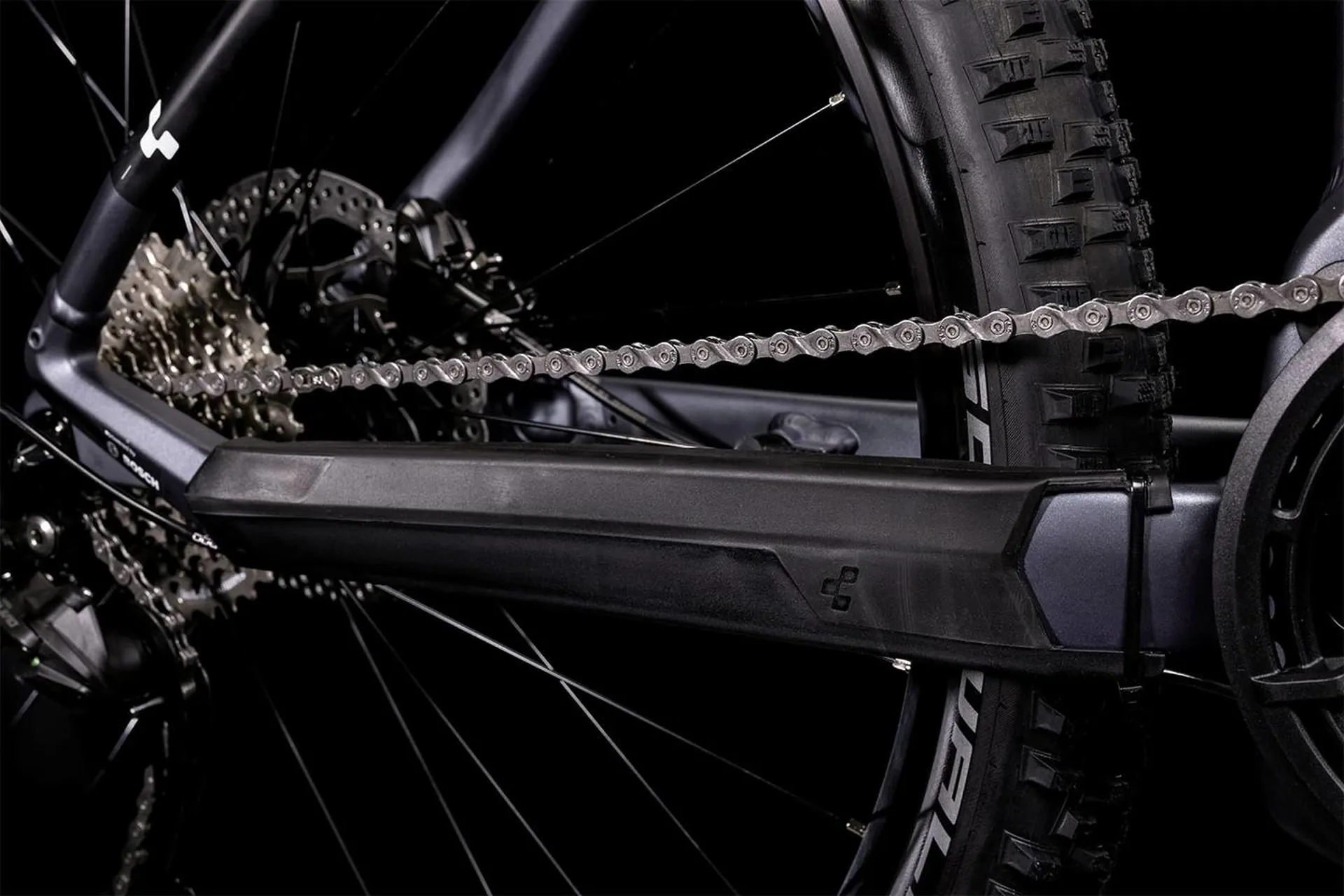

chain
KMC X9
front hub
Shimano HB-TX505, QR, Centerlock
rear hub
Shimano FH-TX505, QR, Centerlock
rims
Rodi Blackrock 23, 32H, Disc, Tubeless Ready
tyres
Schwalbe Smart Sam, Active, 2.35
Stem
CUBE Performance Stem Pro, 31.8mm
handlebar
CUBE Rise Trail Bar, 720mm
grips
CUBE Race Grip 31mm, 1-Clamp
seat post
CUBE Performance Post, 30.9mm
seatclamp
CUBE Varioclose, 34.9mm

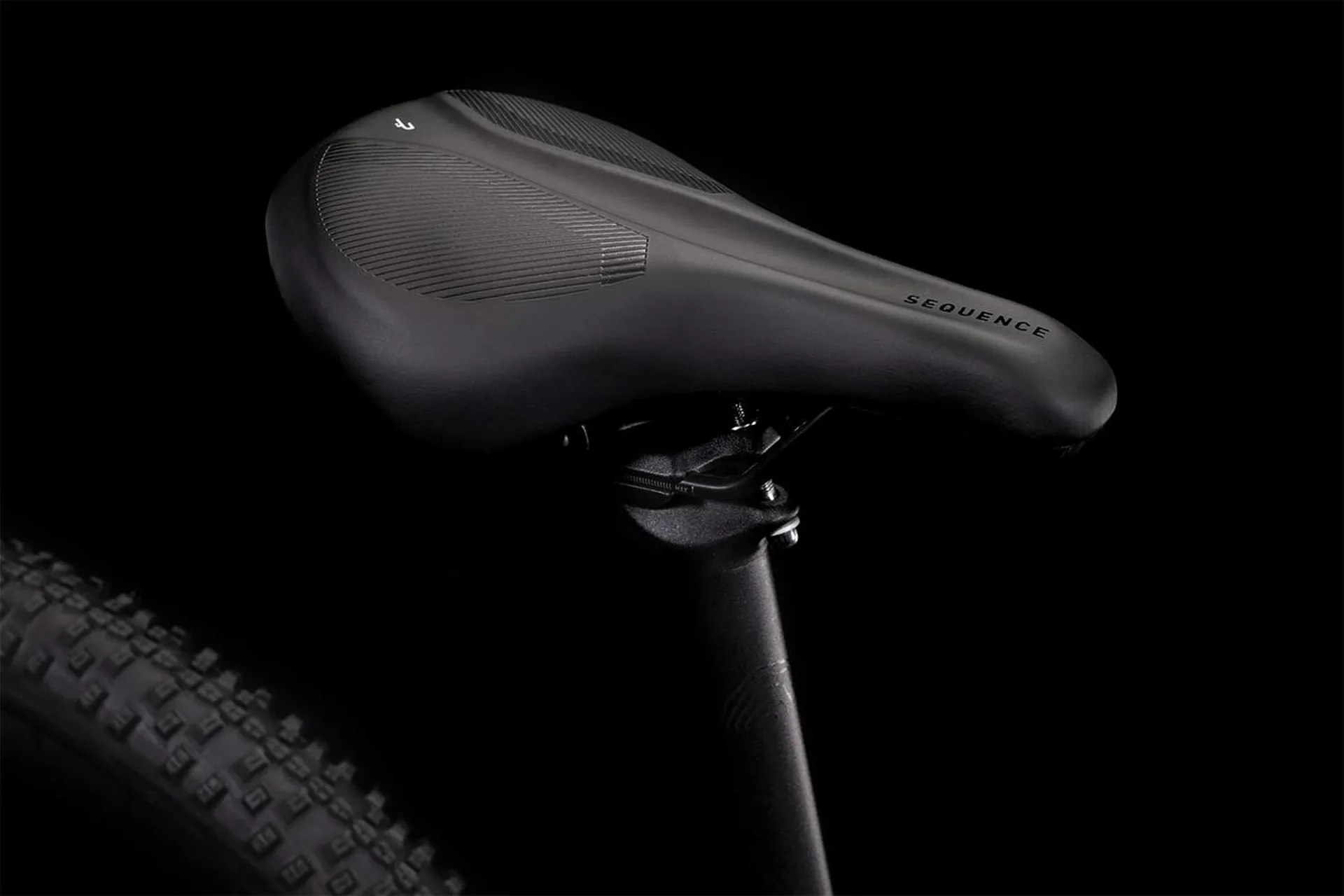

saddle
Natural Fit Sequence
headset
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
pedals
CUBE PP MTB
weight
23,2 kg
