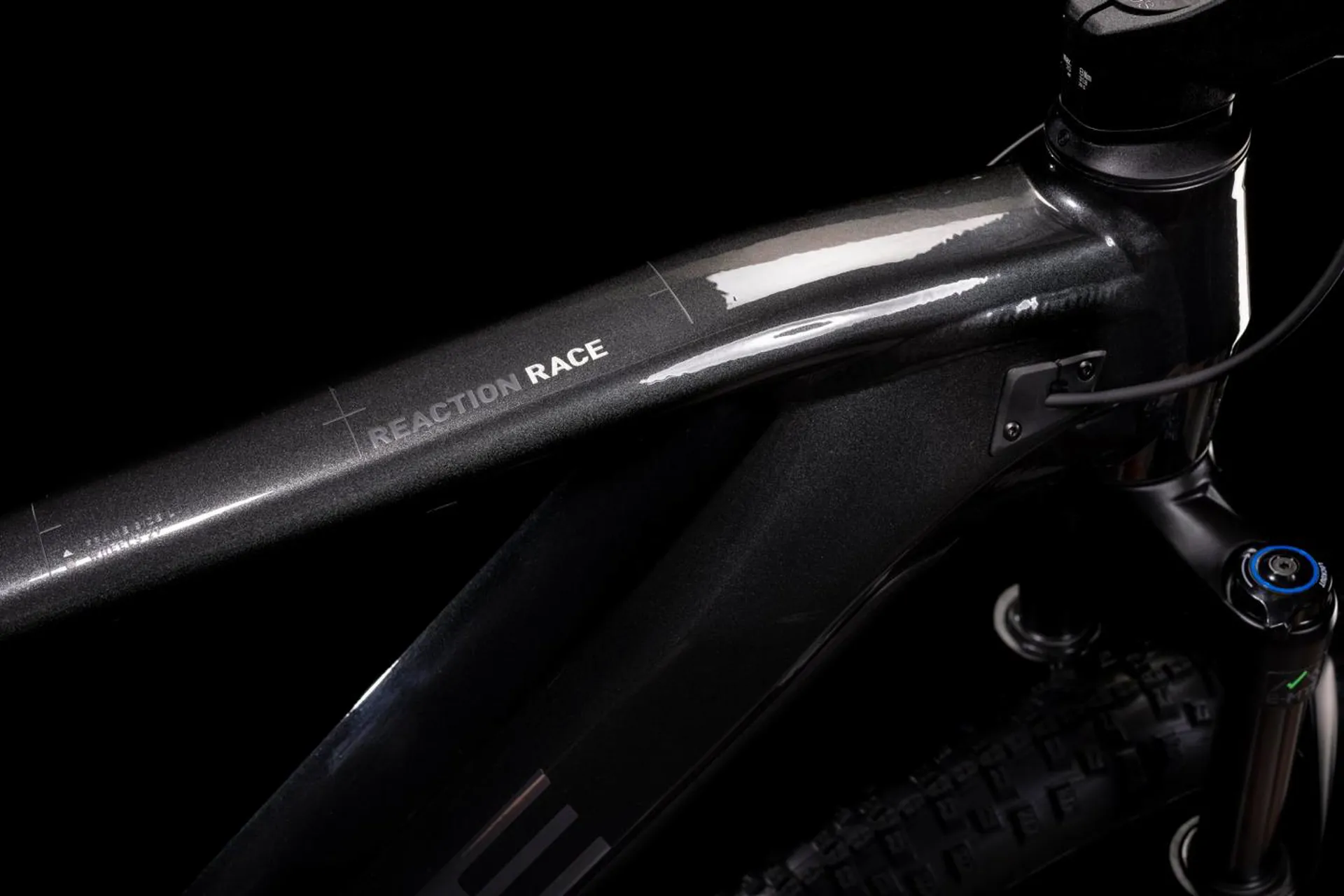

frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points, 1.5 Headtube (EE: Tapered Headtube)
size
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
fork
RockShox Judy Silver TK Air, Tapered, 15x110mm, eMTB Approved, 100mm, Lockout
drive unit
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
battery
Bosch PowerTube 625
display
Bosch Purion
charger
Bosch 2A
brake system
Shimano BR-MT420, Hydr. Disc Brake (203/203)
rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

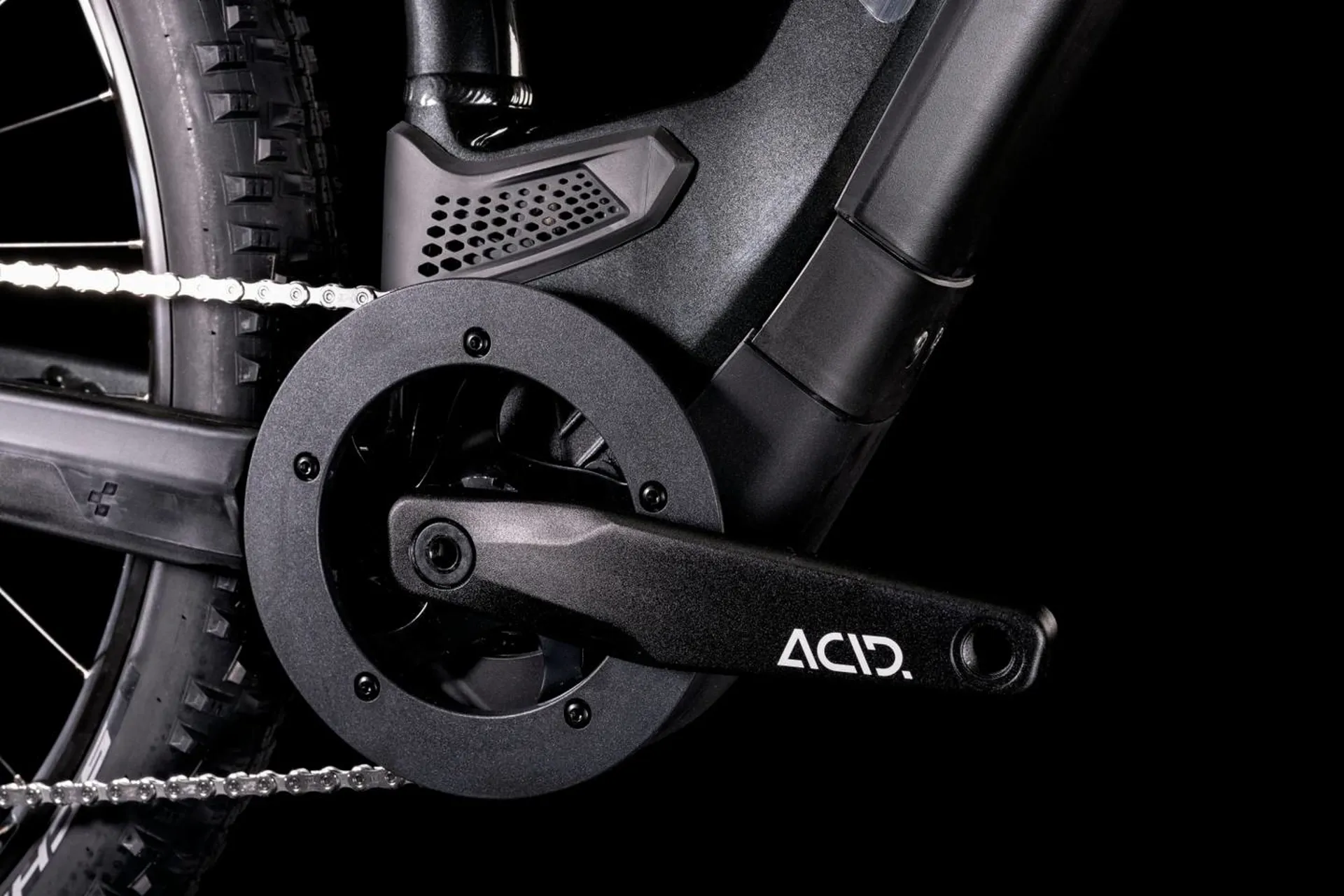

crankset
ACID E-Crank, 175mm, 38T
cassette
Shimano Deore CS-M6100, 10-51T
chain
Shimano CN-M6100
front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
rear hub
Shimano FH-MT401, QR, Centerlock
rims
CUBE EX30, 32H, Disc, Tubeless Ready
tyres
Schwalbe Smart Sam, Active, 2.6
Stem
CUBE Performance Stem E-MTB, 31.8mm, EE: CUBE Comfort Stem Pro, 31.8mm, Adjustable

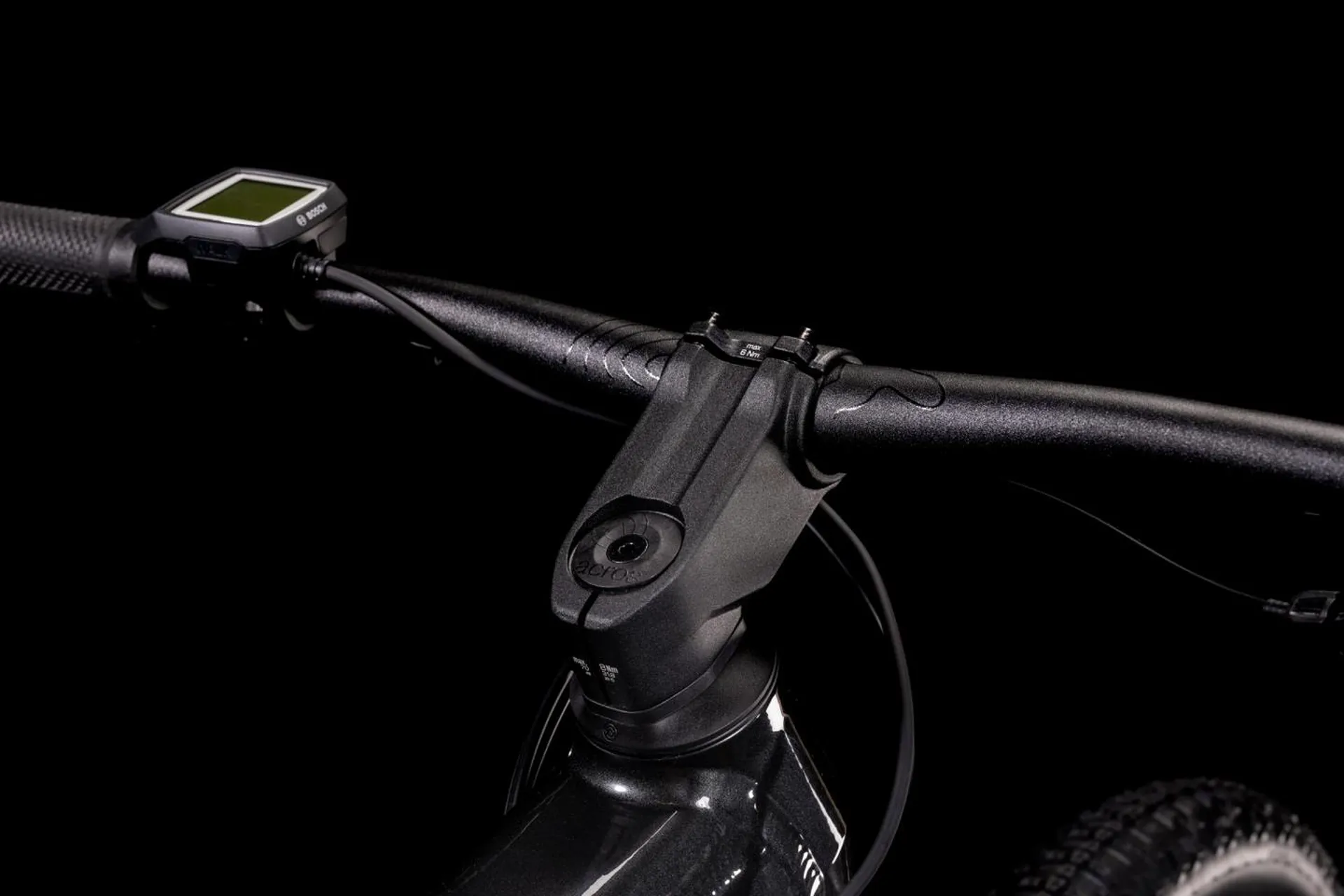

handlebar
CUBE Rise Trail Bar, 720mm, EE: CUBE Comfort Trail Bar, 720mm
grips
ACID React Pro (EE: Natural Fit All Terrain)
seat post
CUBE Performance Post, 30.9mm
seatclamp
CUBE Varioclose, 34.9mm

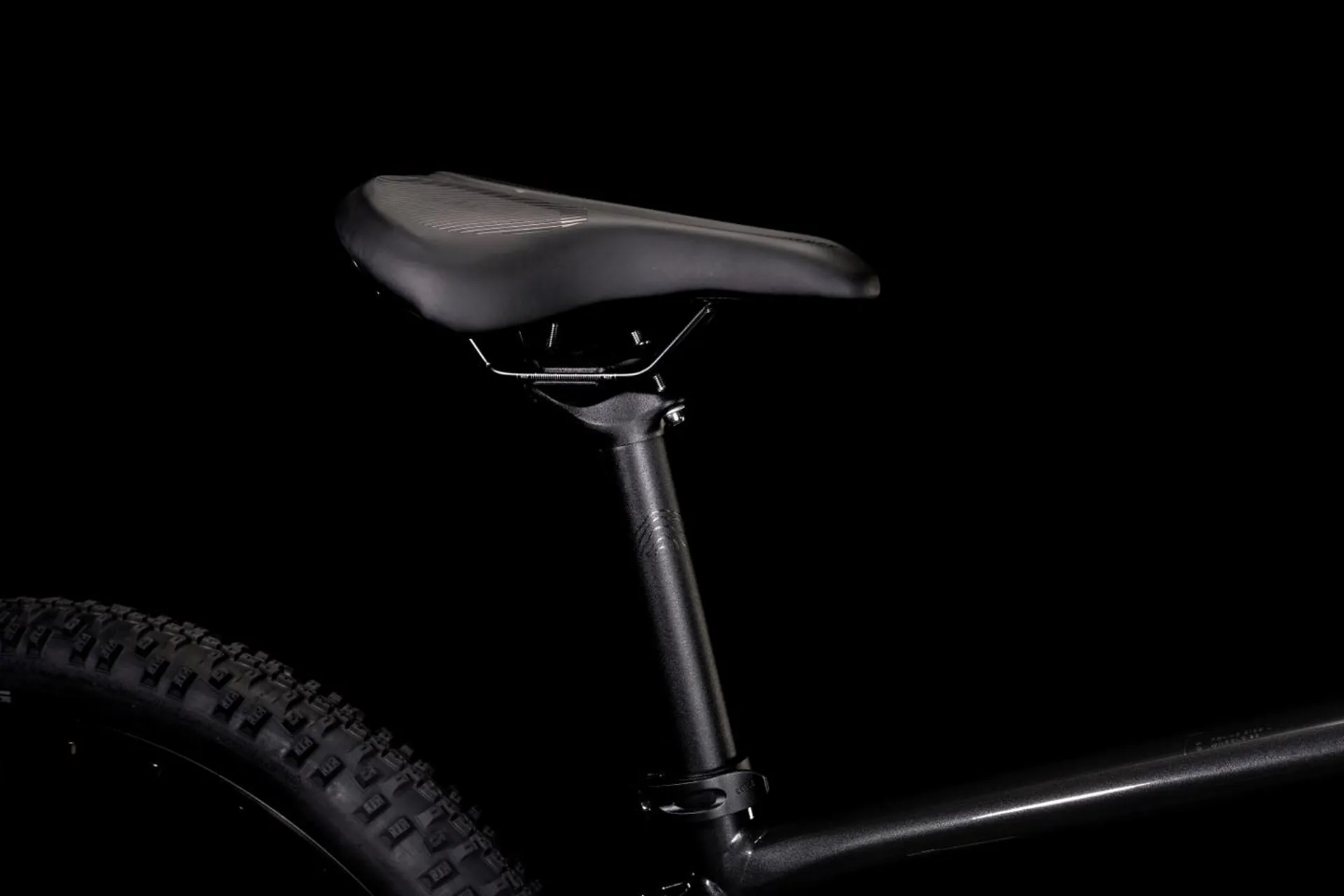

saddle
Natural Fit Sequence
headset
M: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
pedals
CUBE PP MTB
weight
23,3 kg
