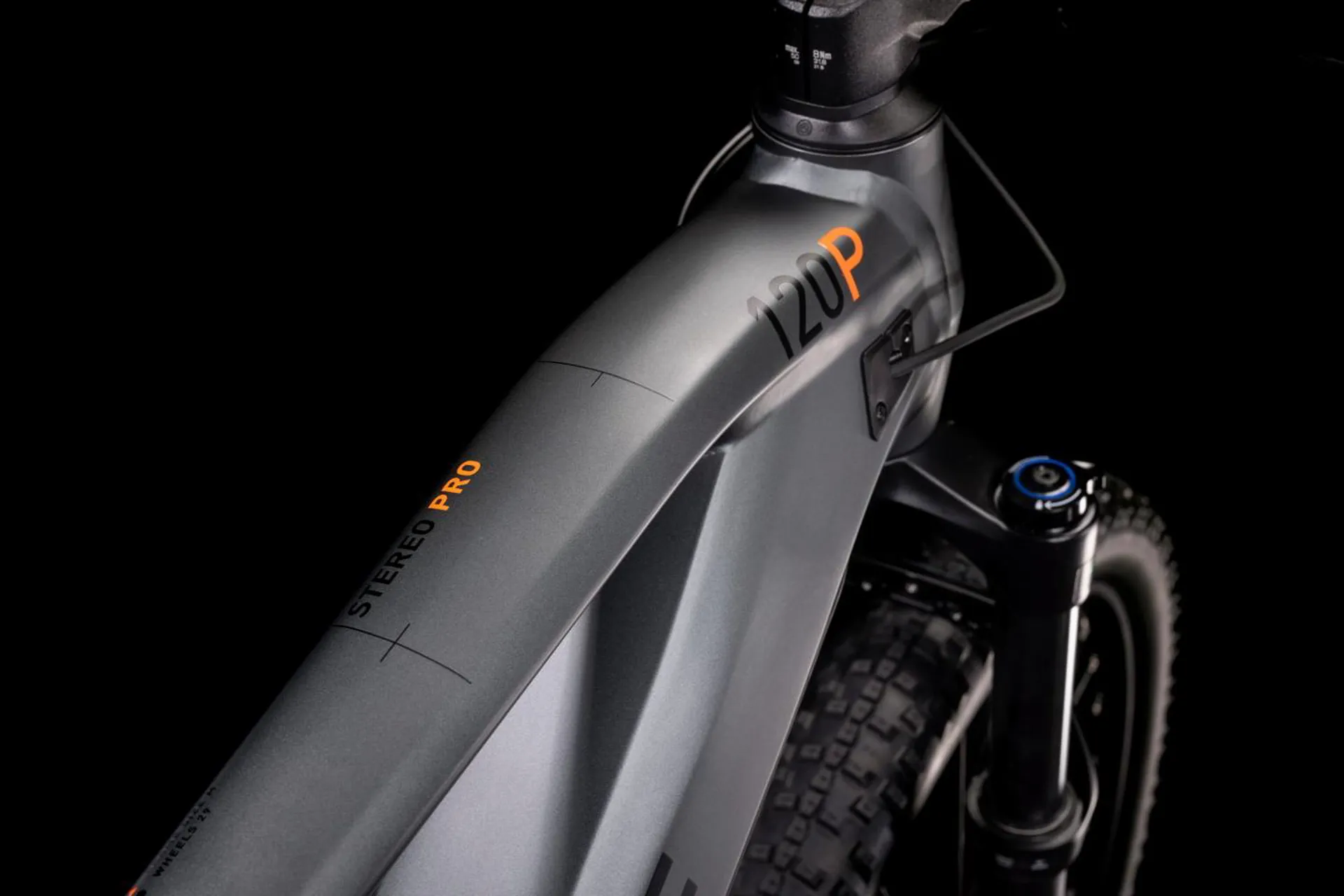

frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
size
Size Split: 27.5: XS (15"), S (17") // 29: M (18"), L (20"), XL (22")

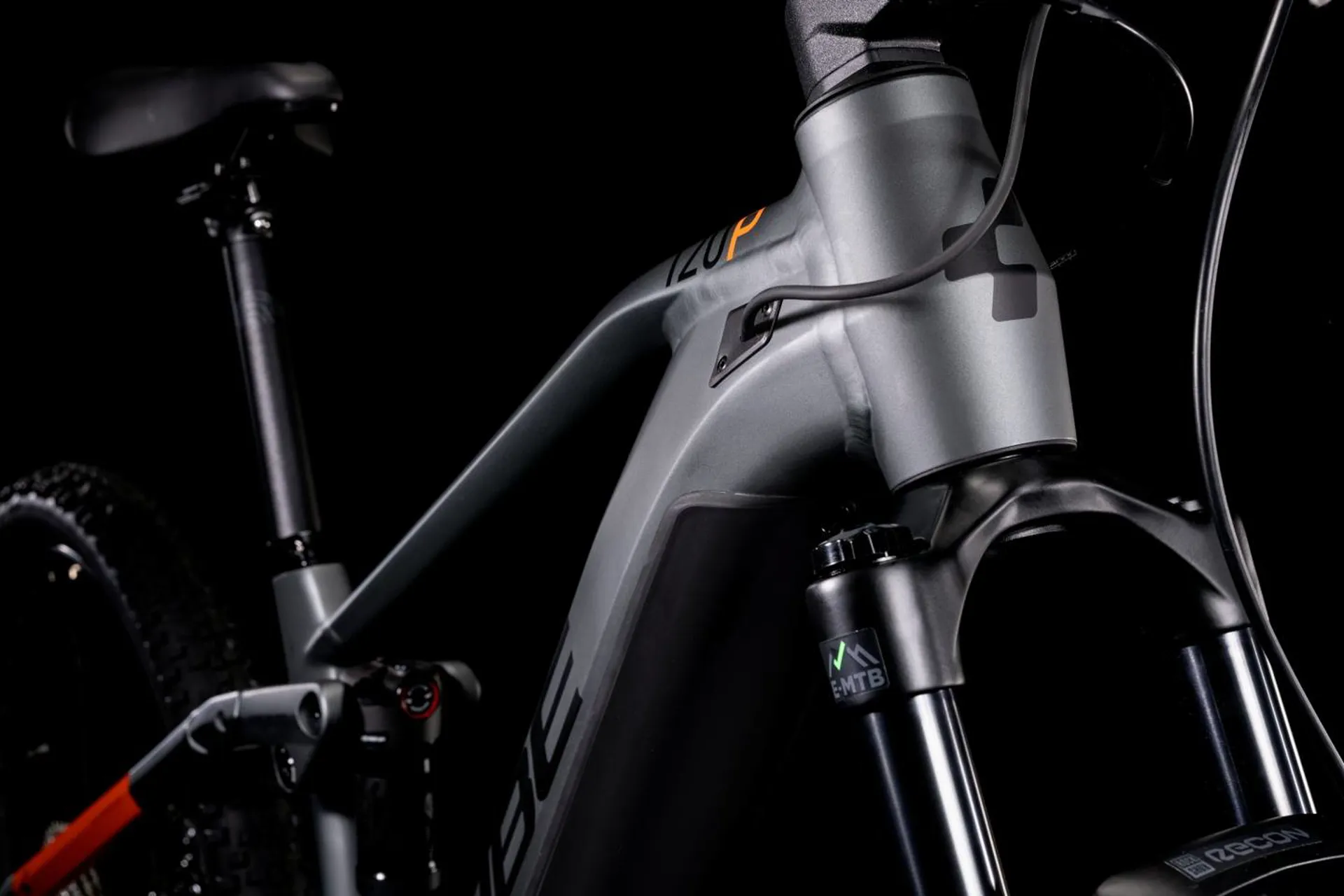

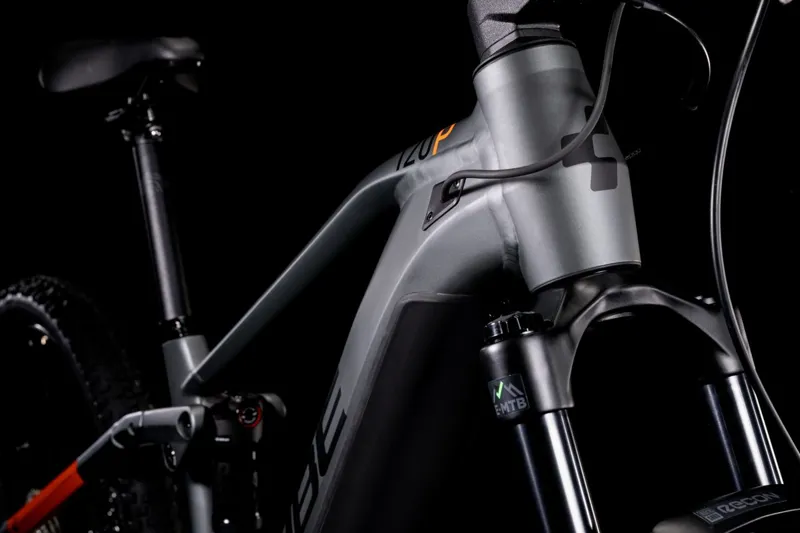

fork
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout

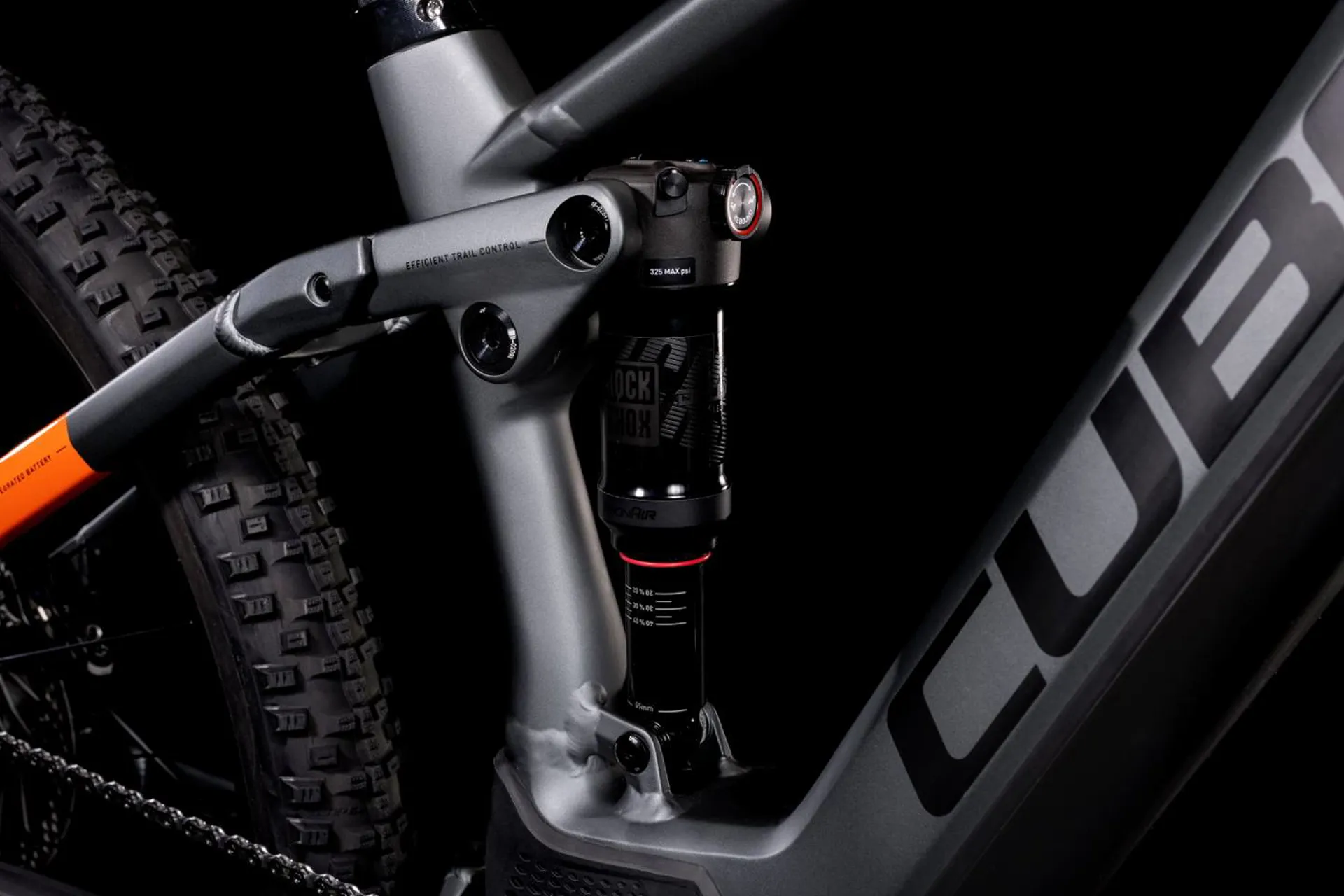

shock
RockShox Deluxe Select, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount
shock hardware
Top: 54mm Trunnion Mount, Bottom: 30x8mm
drive unit
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
battery
Bosch PowerTube 625
display
Bosch Purion
charger
Bosch 2A
brake system
Shimano BR-MT420, Hydr. Disc Brake (203/203)
rear derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

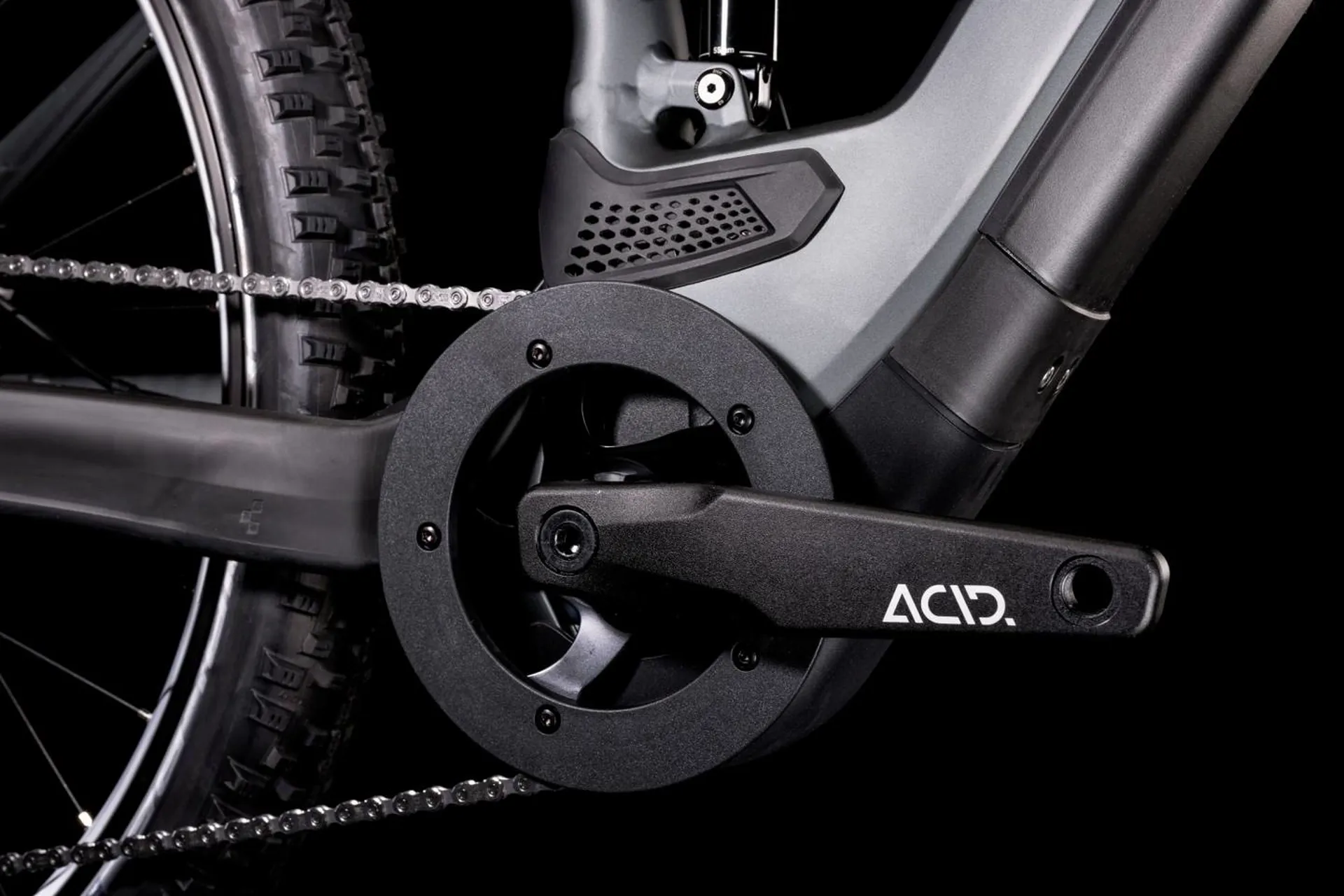

crankset
ACID E-Crank, 170mm, 38T
cassette
Shimano Deore CS-M6100, 10-51T
chain
Shimano CN-M6100
front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
rear hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
rims
CUBE EX30, 32H, Disc, Tubeless Ready
tyres
Schwalbe Smart Sam, Active, 2.6
Stem
CUBE Performance Stem E-MTB, 31.8mm
handlebar
Newmen Evolution SL 318.25, 760mm
grips
Natural Fit All Terrain
seat post
CUBE Performance Post, 30.9mm
seatclamp
CUBE Screwlock Semi Integrated, 34.9mm
saddle
Natural Fit Sequence
headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
pedals
CUBE PP MTB
weight
25,4 kg
