FRAME

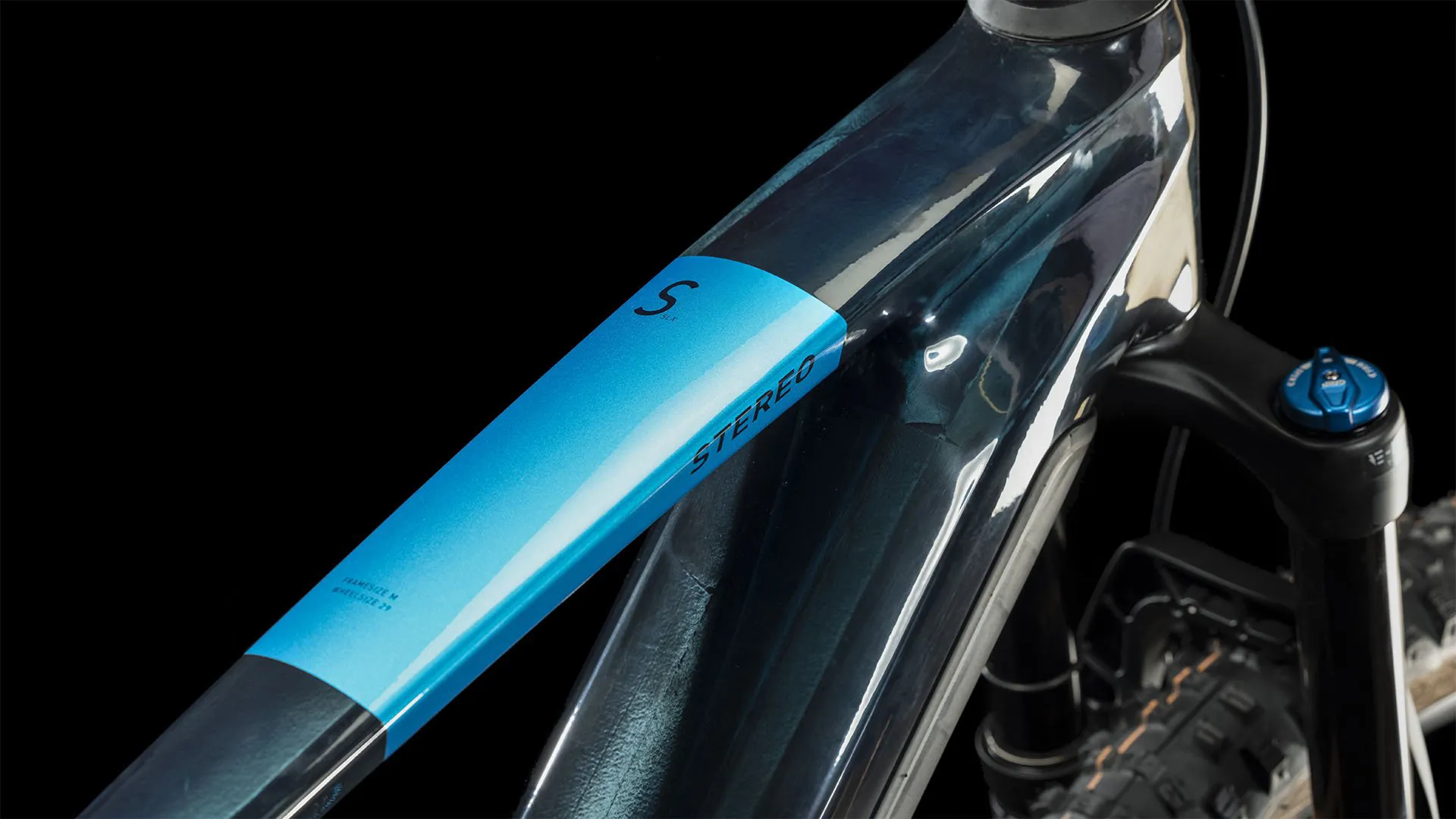

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION FORK

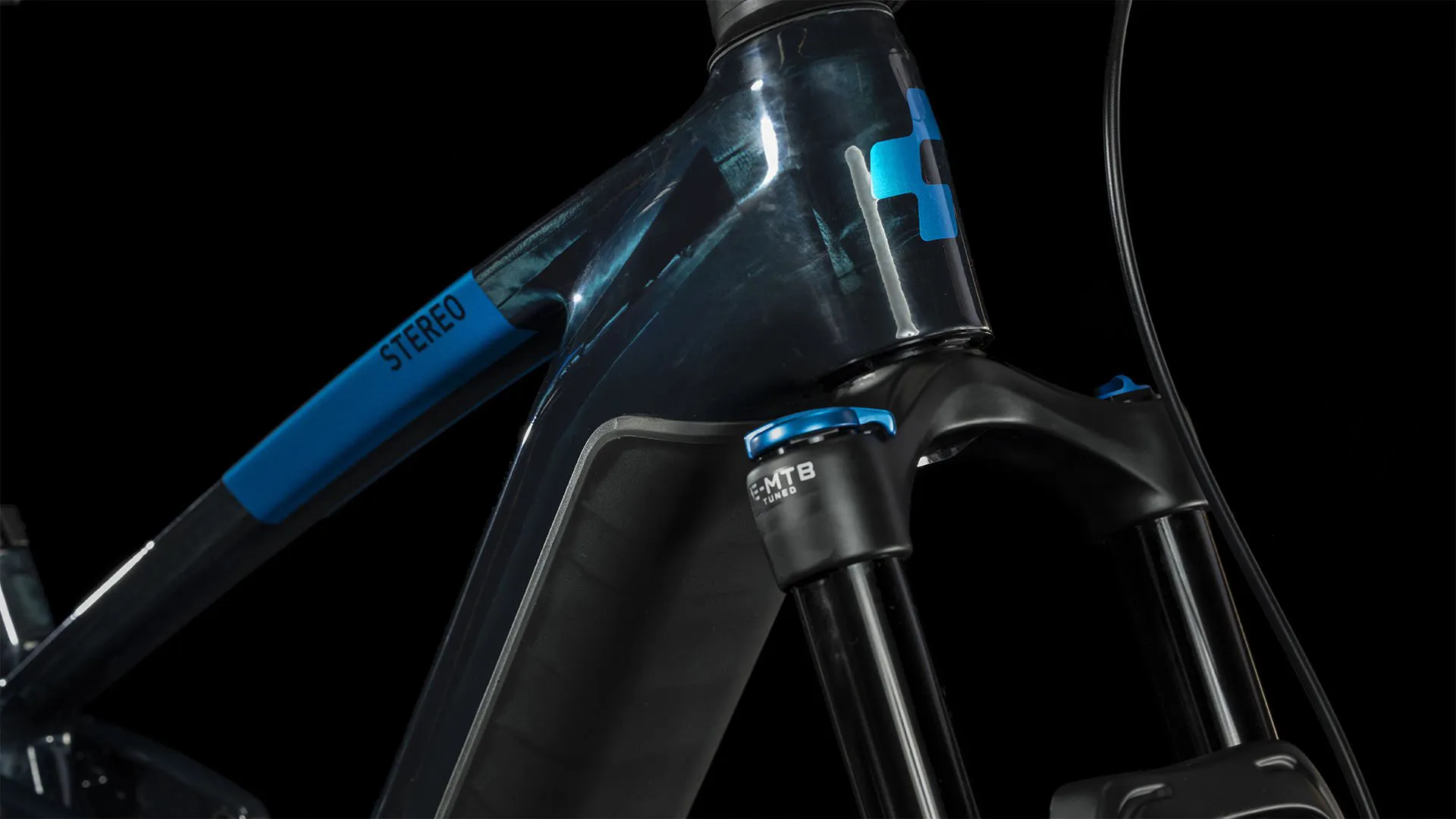

Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
SHOCK

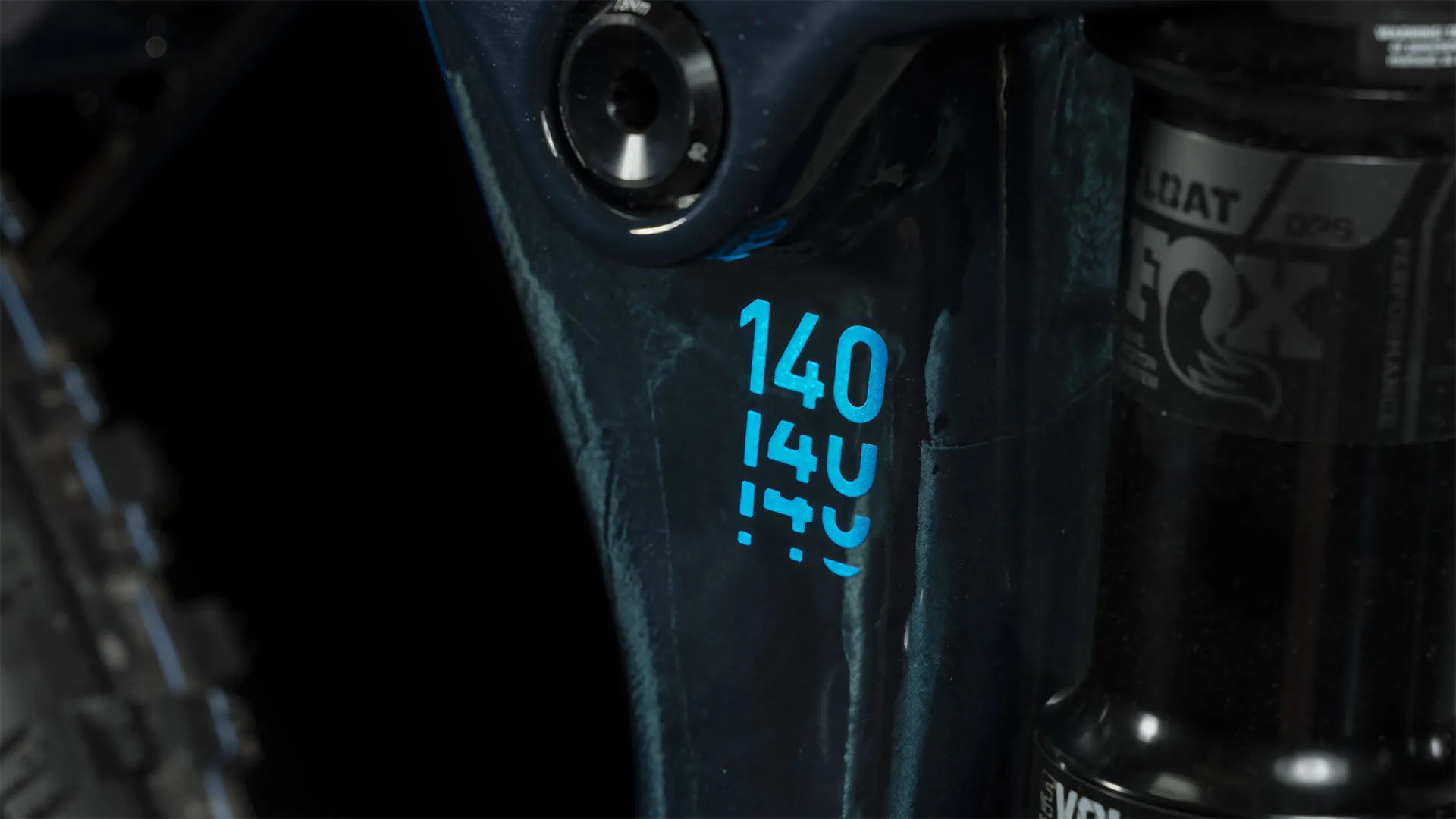

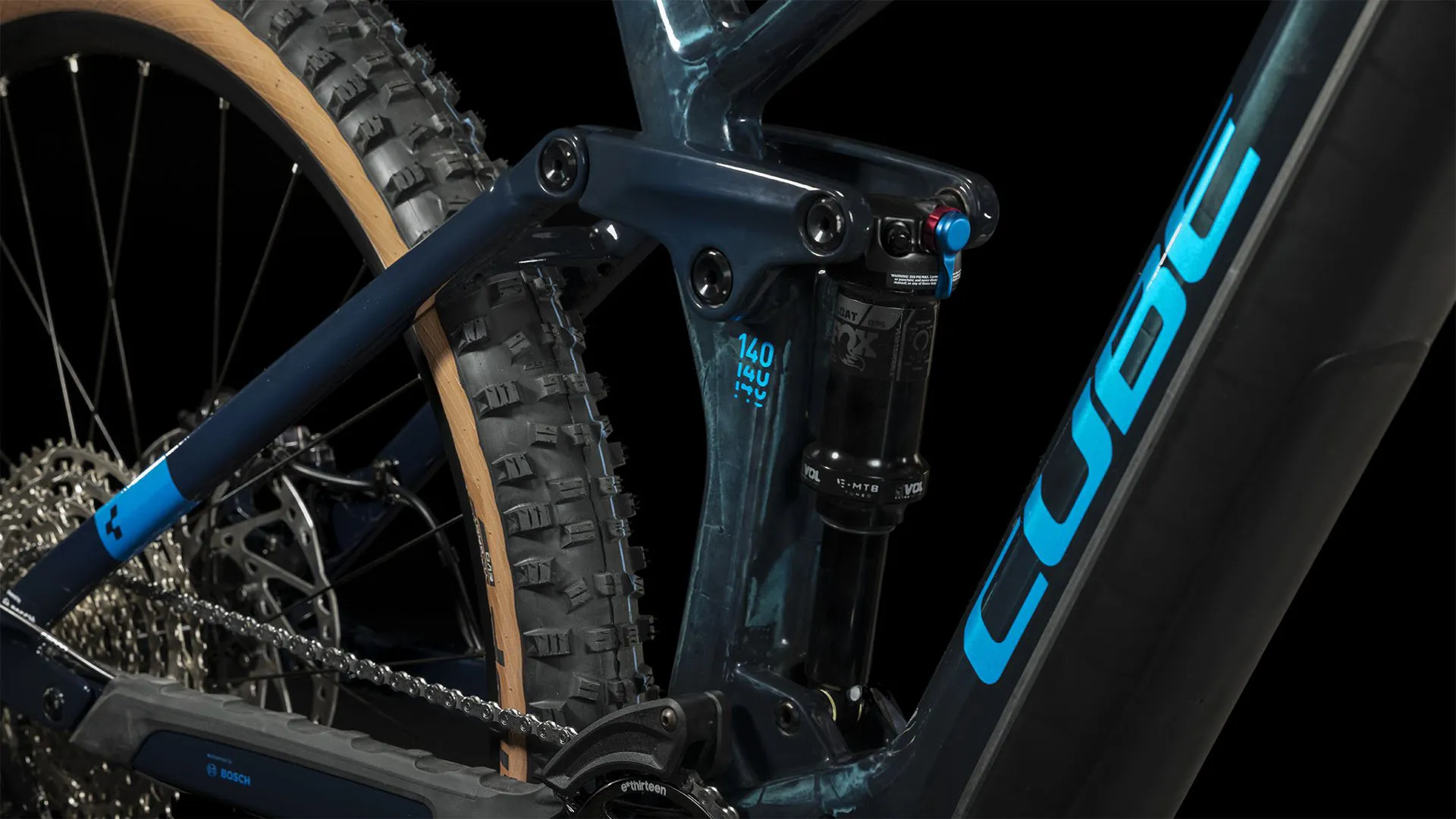

Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
BATTERY
Bosch PowerTube 750
REMOTE
Bosch LED Remote

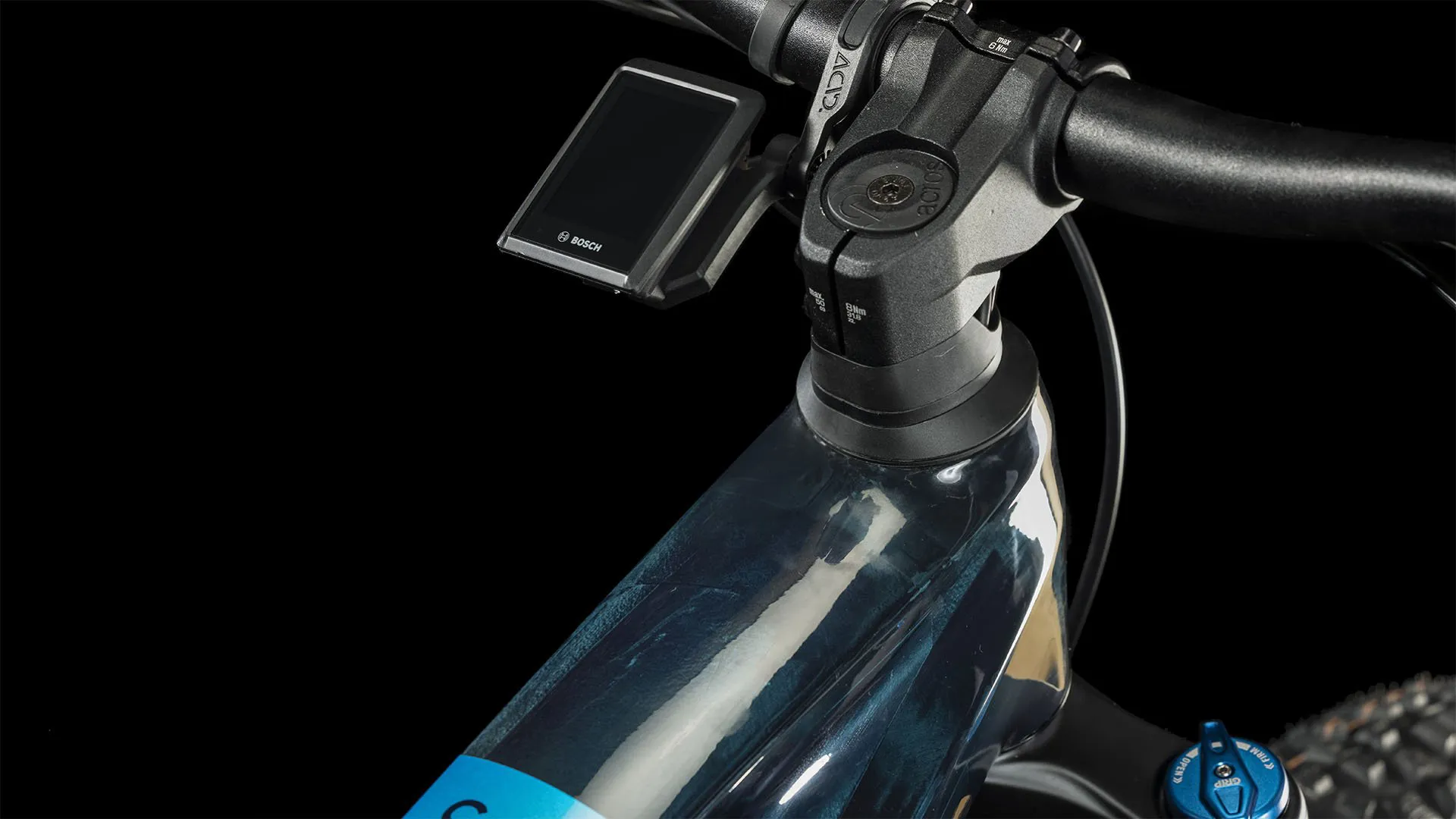

DISPLAY
Bosch Kiox 300
CHARGER
Bosch 4A
BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
HANDLEBAR
Newmen Evolution SL 318.25, 780mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID Disrupt, Soft Compound
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
REAR TYRE
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SADDLE
Natural Fit Venec
WEIGHT
24,1 kg
