Gear system description | Enviolo 380 Trekking Manual stepless gear system |
Engine model | Bosch Performance Line CX Smart System (85 Nm) |

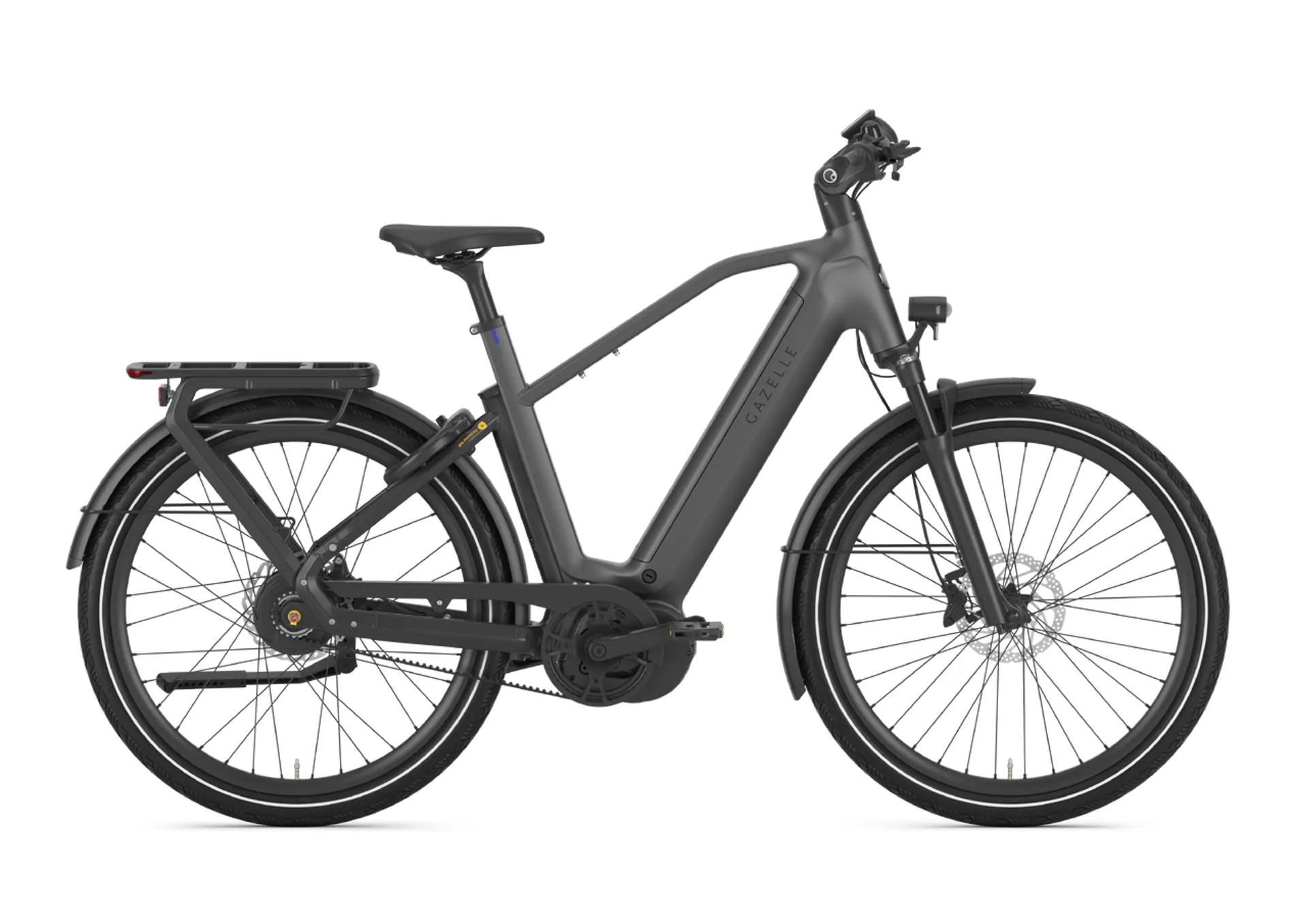

Model | Eclipse |
Colorname | Anthracite grey |
Fork suspension type | Telescopic, spiral spring |
Model | Eclipse |
Weight in kg. | 28.3 kgs |
Segment | Electric bicycles |
Sitting position | Active |
Maximum permissible weight | 130 kg |
Maximum permissible weight | 330 Lbs |
Frame shape | High-step |
Size | 45, 50, 55, 60 |

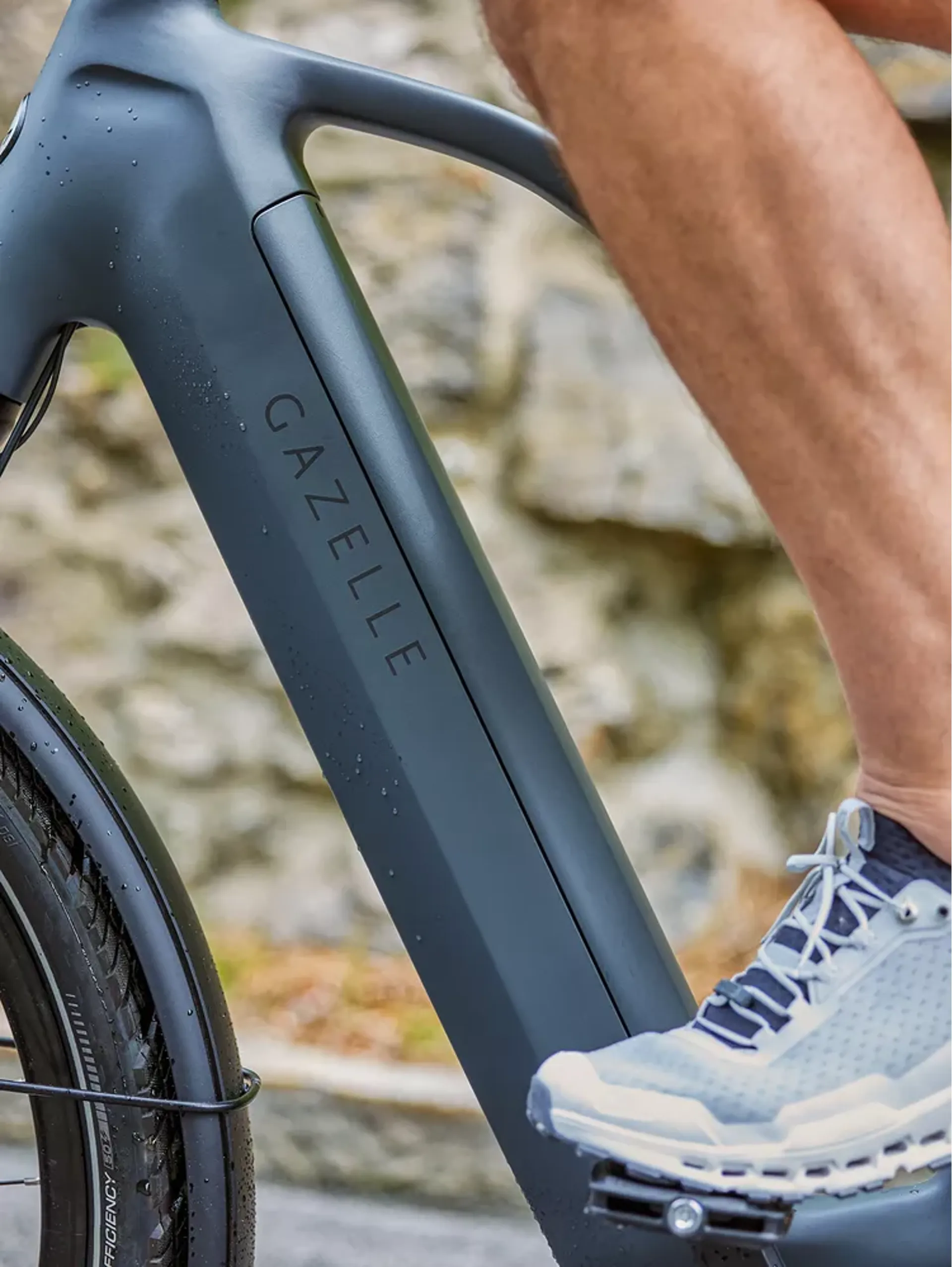

Frame description | Aluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Sporty seat and dynamic handling. Battery capacity of up to 750 Wh available for each ride. |
Frame material | Aluminium |
Cabels integrated | Yes |
Fork material | Aluminium |
Fork suspension type | Telescopic, spiral spring |
Travel of suspension fork | 75 mm |
Front fork suspension lock-out | Yes |
Wheelsize | 27,5" |
Rims | Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance |
Spoke description | Stainless steel, extra strong |
Tires | Schwalbe Marathon Efficiency |
Tire color | Black |
Tires puncture resistant | Yes |

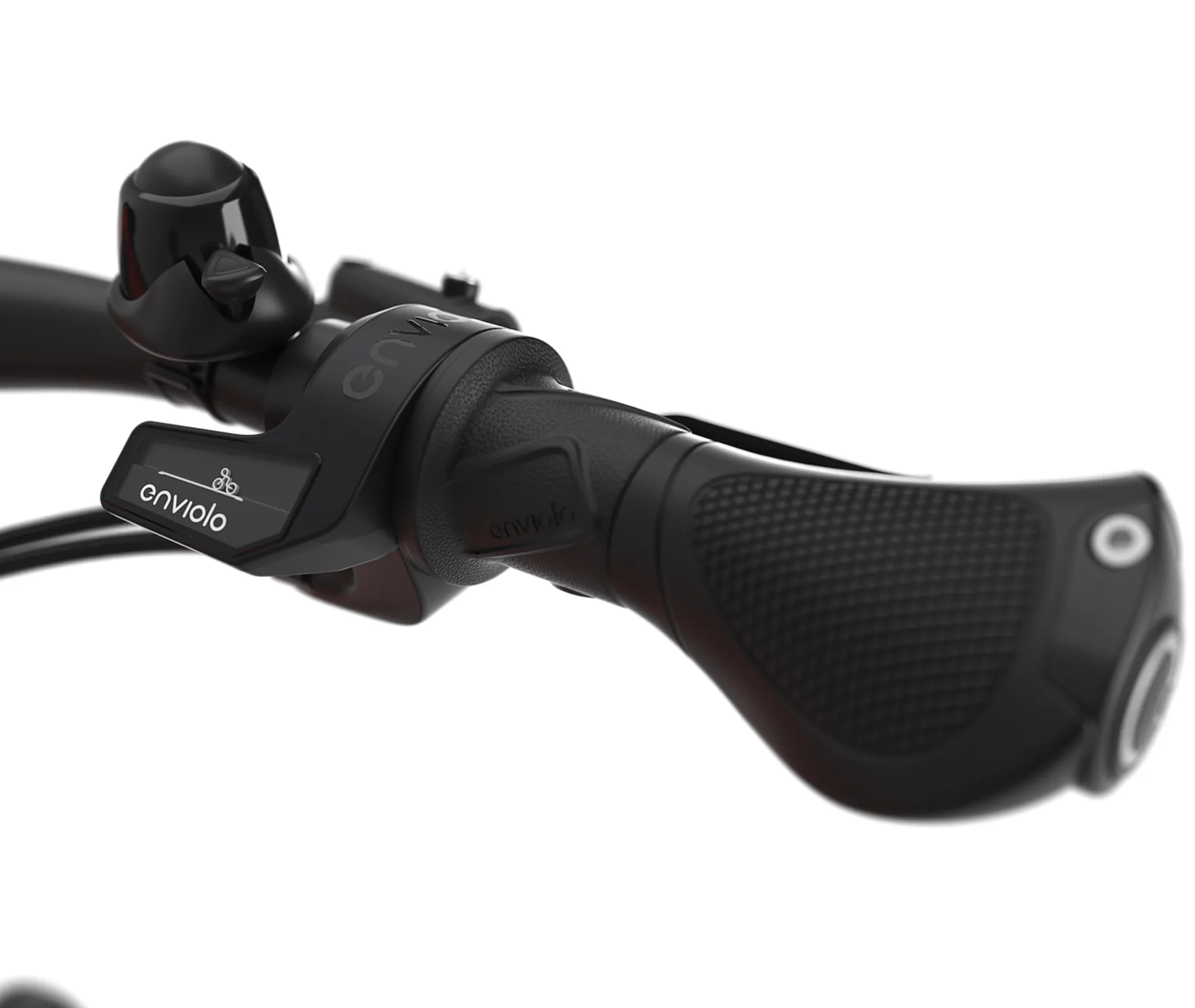

Gear system description | Enviolo 380 Trekking Manual stepless gear system |
Gear type | Hub |
Gears | Stepless |
Front chainwheel | 50 |
Rear chainwheel | 22 |
Brake Front | Disc brake with hydraulic control |
Brake Rear | Disc brake with hydraulic control |
Disc brake rotor size front | 180 mm |
Disc brake rotor size rear | 180 mm |
Brake system description front | Shimano BR-MT420, 4 piston |
Brake system description rear | Shimano BR-MT420, 4 piston |
Handlebar description | Aluminium, slightly curved model |
Adjustable stem | Yes |
Grip type | Ergon GP1-L, ergonomic |
Grips | Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands |
Saddle | Selle Royal Essenza Plus gel |
Seatpost description | Fixed |
Seatpost diameter | 31,6 mm |
Light front description | LED headlamp, on/off switching via display |
Front light type | Herrmans H-black PRO |
Ebike system short description | Bosch smart system |
Engine location | Mid-drive motor |
Max Speed (km/h) | 25 km/h |
Max speed (mph) | Class 3 (28 mph) |
Torque | 85 |

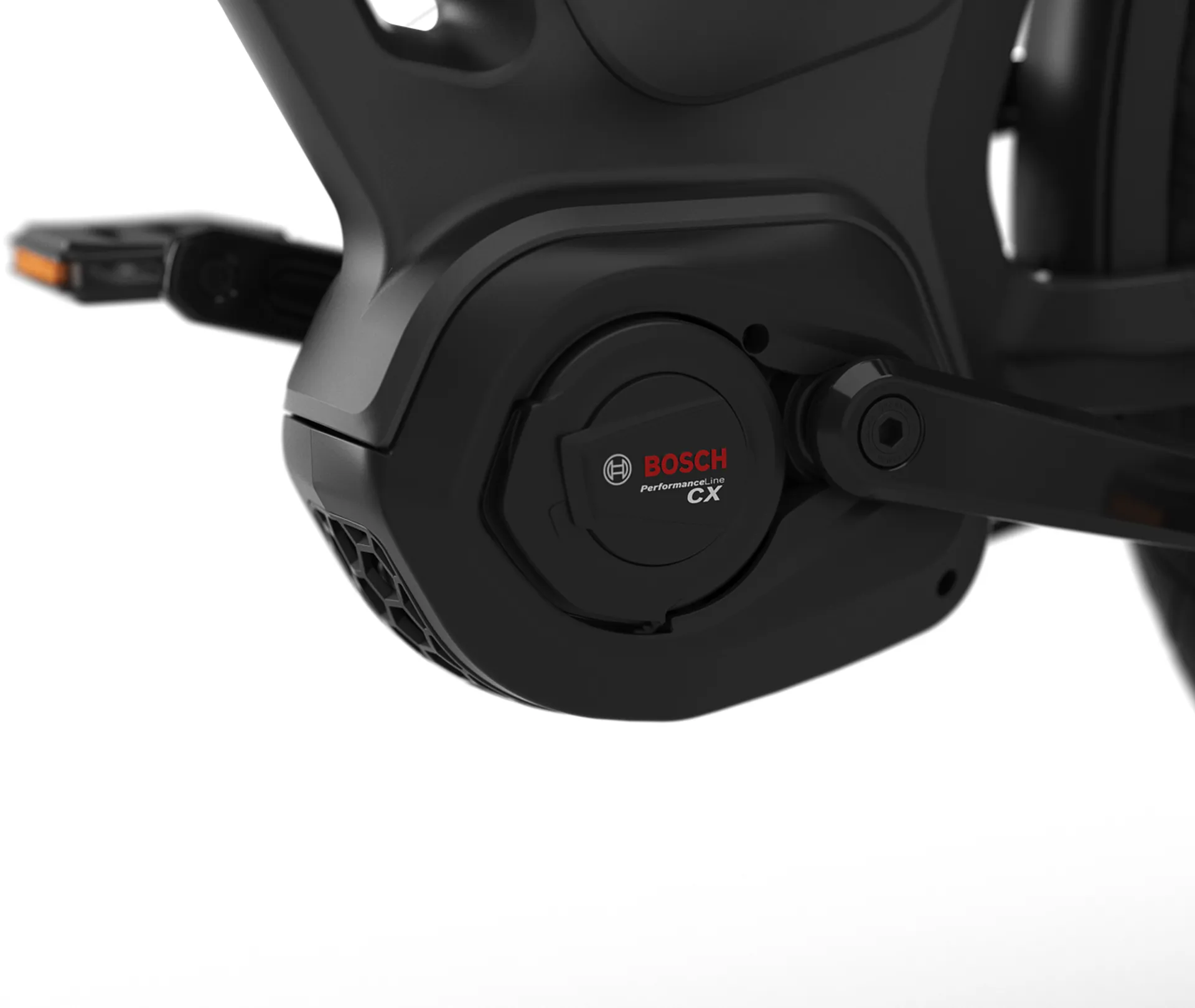

Engine model | Bosch Performance Line CX Smart System (85 Nm) |
Ebike sensors | Pedal force sensor, rotation sensor, speed sensor |
Battery type | Li-ion |
Battery position | Integrated into frame |
Battery replaceable | Yes |
Battery system | Bosch |
Ebike charger description | 4 Ah |
Amount of support levels | 4 |
Display control unit | Yes |
Walk assist | Yes |

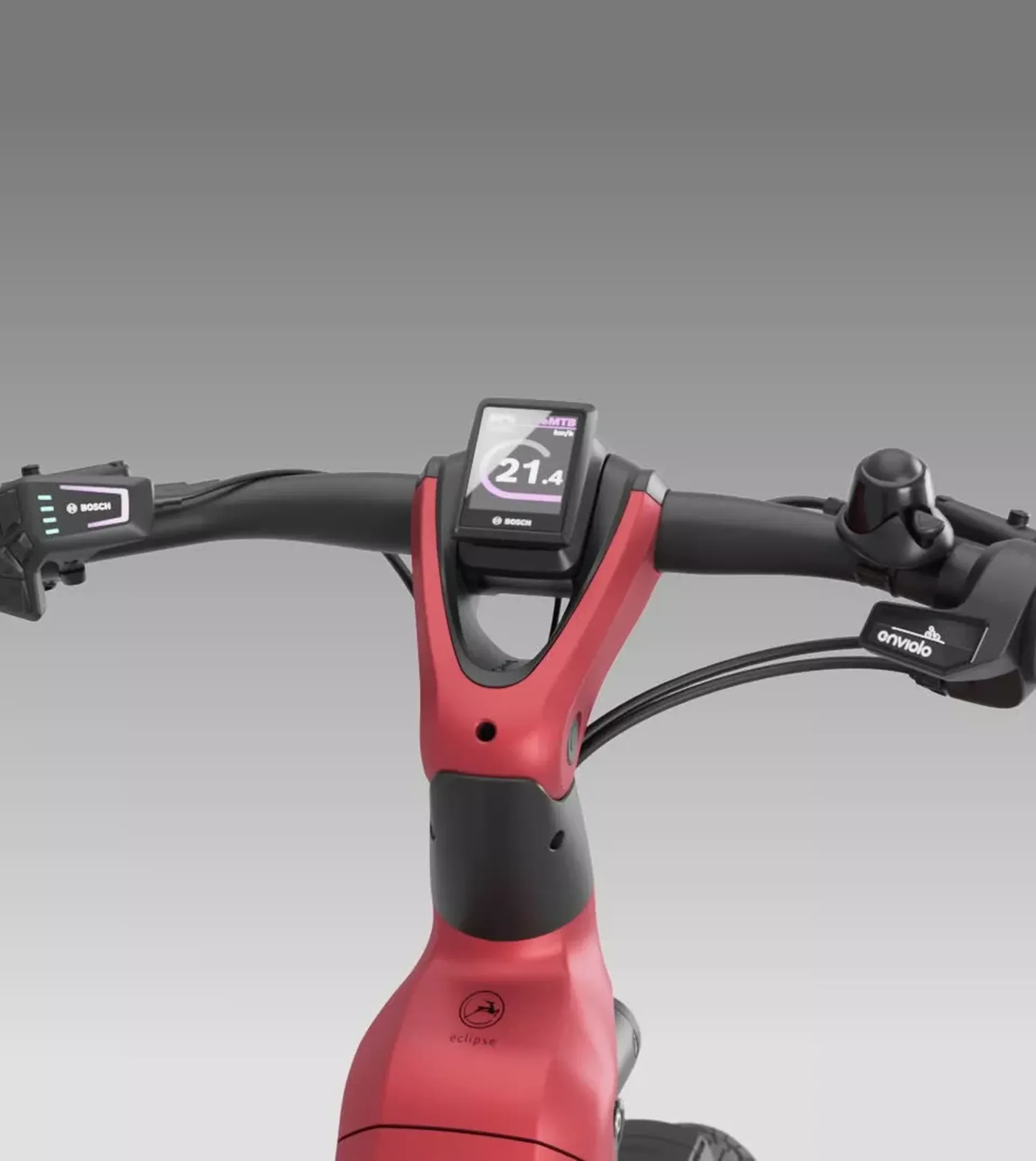

Display Model | Bosch Kiox 300 |
Display detachable | Yes |
Warranty frame | 10 years’ warranty |
Warranty fork | 5 years’ warranty |
Warranty paint | 5 years’ warranty |
Warranty other parts | 2 years’ warranty |
Warranty battery | 2 years’ warranty |
Warranty motor | 2 years’ warranty |
Warranty diplay | 2 years’ warranty |

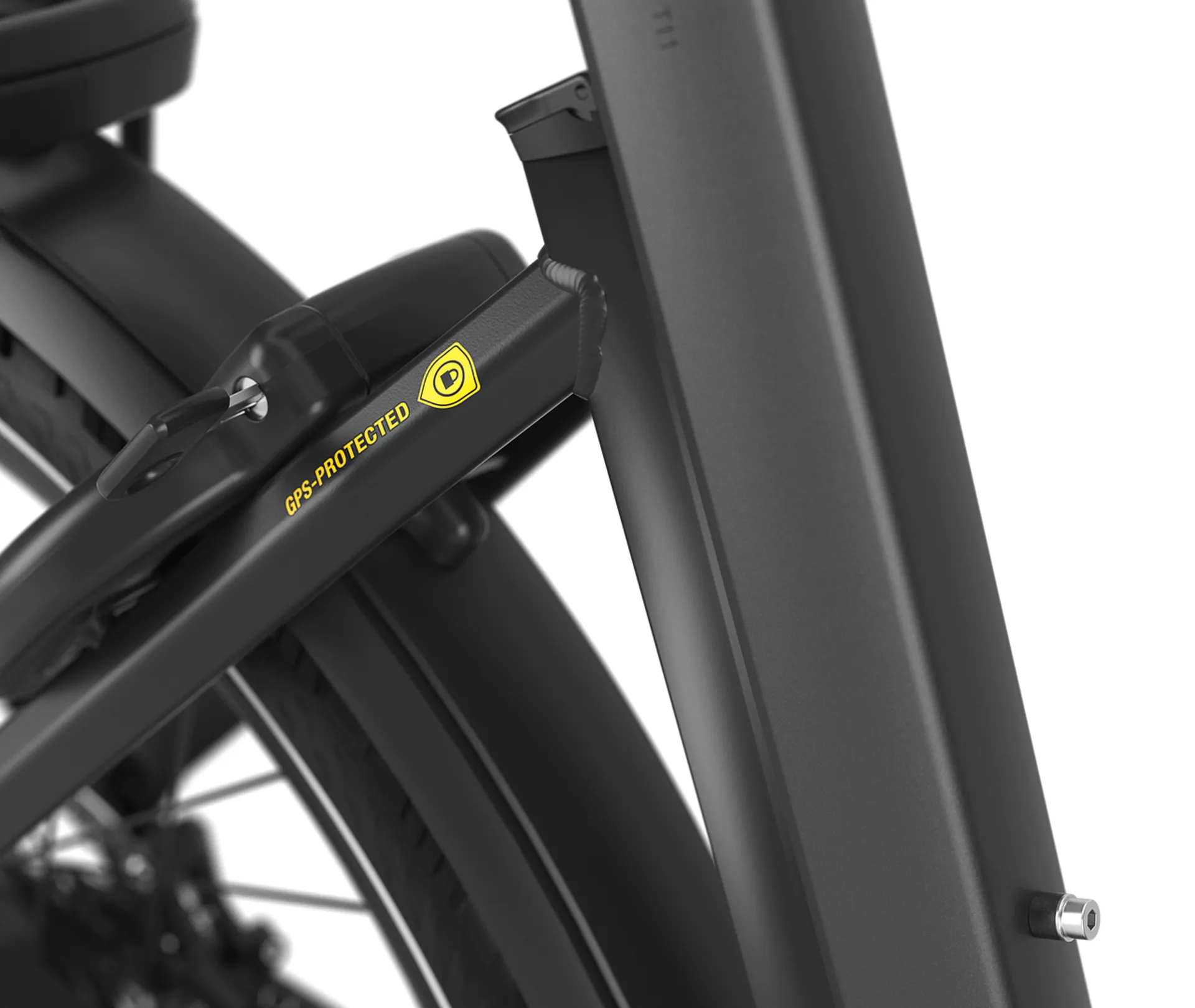

Lock description | Ring lock |
Lock safety level | ART ** certified |
Lock Type | Axa Imenso |
Chaincase description | 1Aluminum |
Kickstand type | Drop-down rear stand |
Kickstand | Ursus Mooi |
Chaincase type | Chain guard |
Rear carrier description | Aluminum MIK HD system carrier |
Carrier MIK system | Yes |
