Comfortable, safe and super powerful and with all the benefits of the latest Bosch eBike Smart System. The Gazelle Ultimate C5 is the best in class at this price point.
Comfortable, safe and super powerful and with all the benefits of the latest Bosch eBike Smart System. The Gazelle Ultimate C5 is the best in class at this price point.
Gazelle

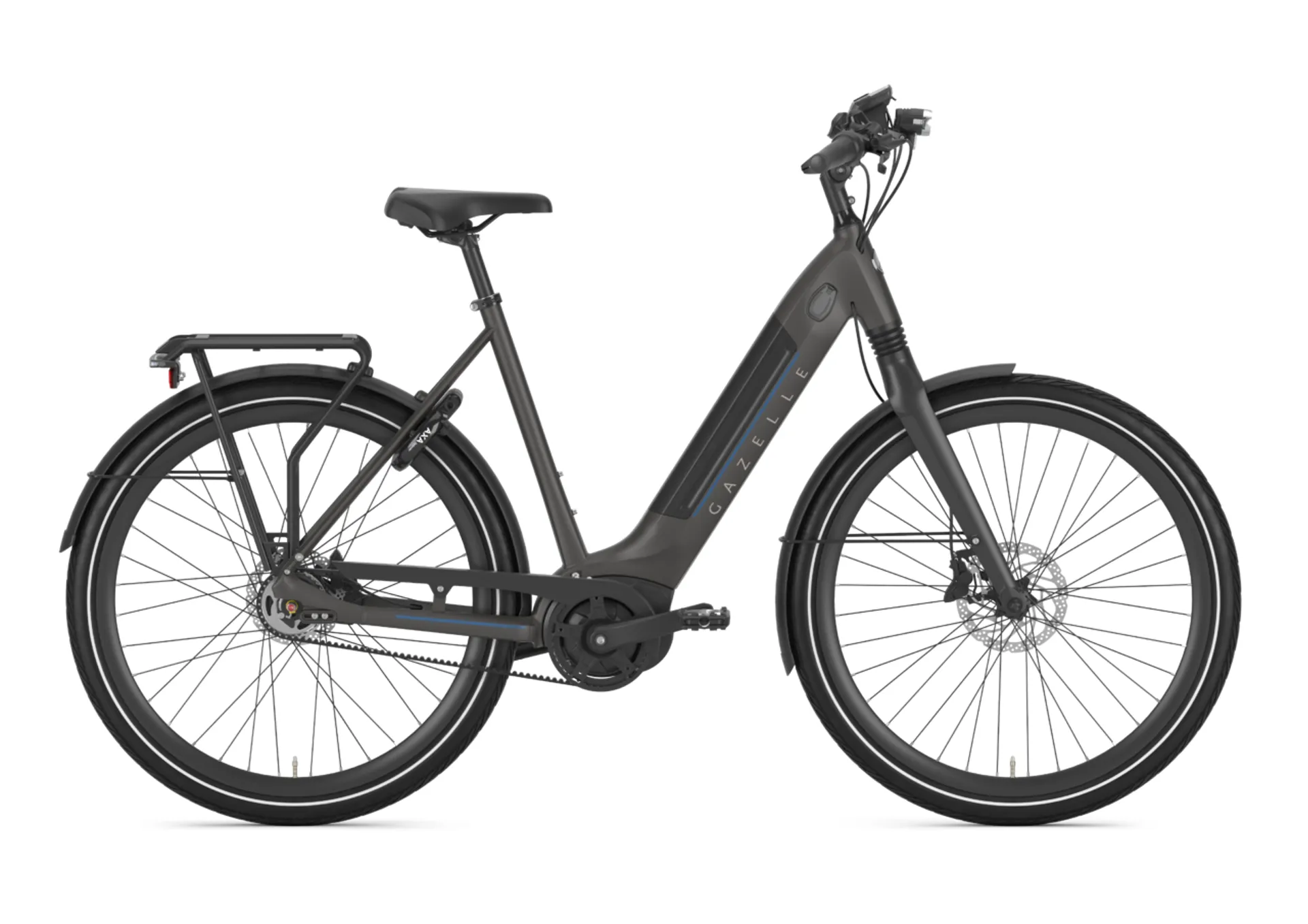

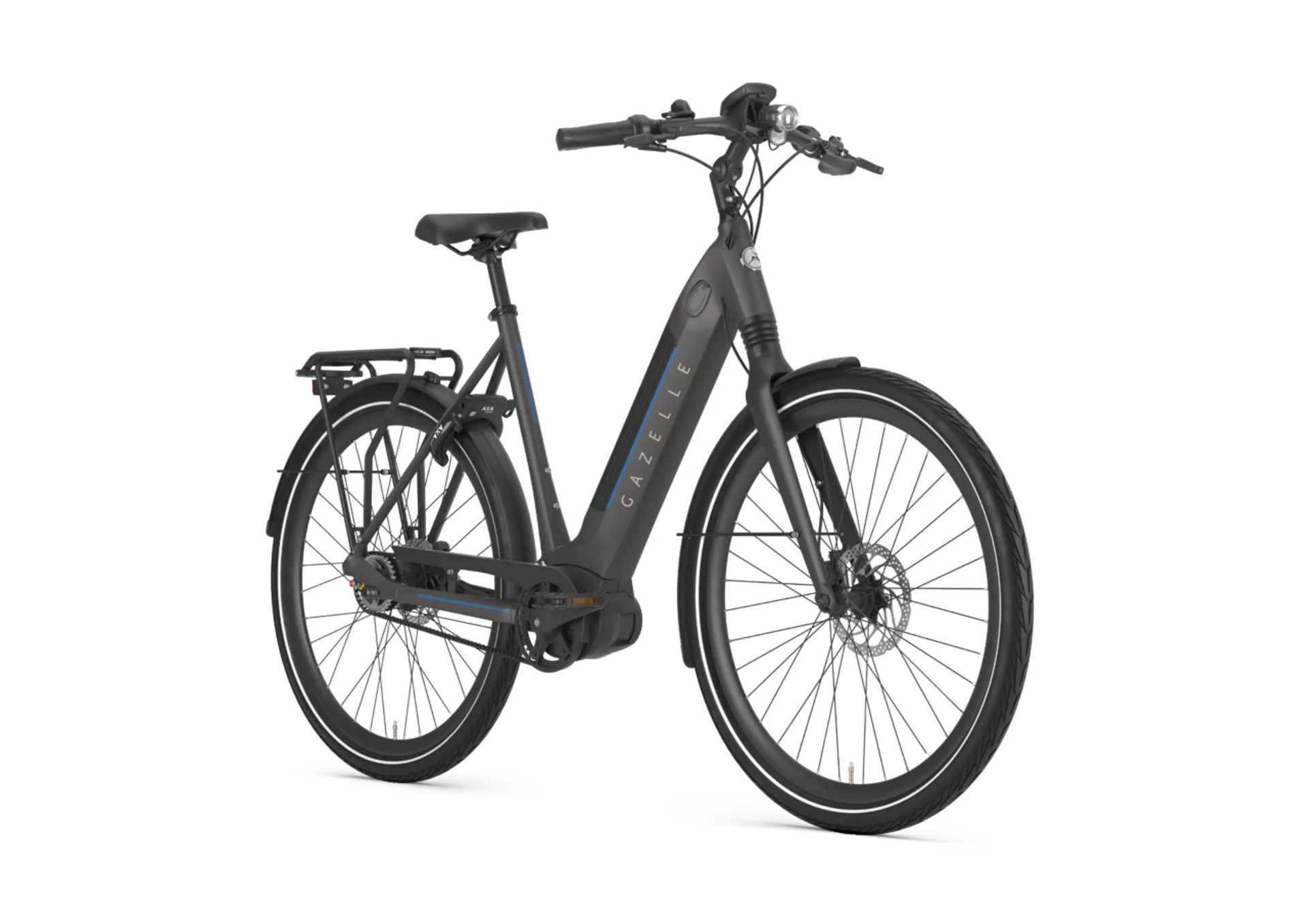

Gazelle Ultimate C5 HMB 500Wh Low Step Electric Bike Anthracite Grey

£3,699.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable. If shipping costs are subsidised the actual shipping costs incurred will be recovered from the original payment before any refund is issued. Any charges incurred by us will be recouped before a final eachange or refund value is settled.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. Our actual costs (not the subsidised amount you may have paid) for shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our stores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Gazelle Ultimate C5 HMB 500Wh Low Step Electric Bike Anthracite Grey

Season:2023

Brand:Gazelle

Code:G328

Discover the Ultimate C5 HMB

Whether you're on a weekend recreational trip, your daily commute to work or simply riding into the city centre, the Ultimate C5 HMB is prepared for every scenario. The excellent road holding delivers an effortless ride. The Bosch Performance Line motor, ShimanoNexus5 gear hub and the belt drive enhance comfort and require little maintenance.

Technical Information
Gear system description5-speed Shimano Nexus
Gear typehub
Gears5
Front chainwheel46
Rear chainwheel34
ShifterShimano Nexus 5
DrivetrainBelt
Engine modelBosch Performance Line (75Nm)
Brake systemhydraulic brakes, 2 piston
ModelUltimate
Colornameanthracite grey, denim blue
SegmentElectric bicycles
Sitting positionActive
Frame shapeHigh-step, low-step
Size46, 49, 53, 57, 61, 65
Frame descriptionStable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame materialAluminium
Fork suspension typeinternal to headset
Travel Fork40 mm
Wheelsize28"
RimsDutch 19, Double-walled aluminium for extra strong and efficient cycling performance
Spoke descriptionStainless steel, extra strong
Front HubShimano
Rear hubShimano Nexus, 5 speeds, freewheel
TiresSchwalbe Energizer Plus
Tire colorblack
Tires puncture resistantYes
Tire Size ETRTO50-622
Handlebar descriptionAluminium, slightly curved model
Adjustable stemYes
Grip typeGazelle Aero leather
GripsLuxury leather handlebar grips for a sophisticated feel and extra comfort
SaddleSelle Royal Essenza Plus
Seatpost descriptionFixed
Brake Frontdisc brake with hydraulic control
Brake RearDisc brake with hydraulic control
Disc brake rotor size front180 mm
Disc brake rotor size rear160 mm
Brake system description frontMagura CT4, 2 piston
Brake system description rearMagura CT4, 2 piston
Brake lever descriptionMagura CT4
Light front descriptionLED headlamp, on/off switching via display
Front light powersourceBattery
Seatpost descriptionFixed
Front light lux60
Front light typeHerrmans MR8
Rear light powersourceBattery
Rear light typeSpanninga Commuter Glow
Ebike system short descriptionBosch smart system
Engine locationmid-drive motor
Torque75
Ebike sensorspedal force sensor, rotation sensor, speed sensor
Battery typeLi-ion
Battery positionIntegrated into frame
Battery replaceableYes
Battery systemBosch
Ebike charger description4 Ah
Amount of support levels4
Display control unitYes
Walk assistYes
Display ModelBosch Kiox 300
Display detachableYes
Warranty frame10 years’ warranty
Warranty fork5 years’ warranty
Warranty paint5 years’ warranty
Warranty other parts2 years’ warranty
Warranty battery2 years’ warranty
Warranty motor2 years’ warranty
Warranty diplay2 years’ warranty
Lock descriptionRing lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
Lock safety levelART ** certified
Lock TypeAxa Imenso
Chaincase descriptionAluminum
Kickstand typedrop-down rear stand
KickstandUrsus Mooi
Chaincase typeChain guard
Rear carrier descriptionAluminum MIK HD system carrier
Carrier MIK systemYes
Max. load rear carrier (kg.)32 kg
Sizing Information
Professional Opinion

No need to worry about maintenance

Maintenance is not a worry with the Ultimate C5 HMB because it features the Shimano Nexus 5. This gear hub is specially designed for e-bikes and is therefore highly resistant to the tensile force of the powerful mid-drive motor. You can rack up the kilometres without giving it a single thought.

Belt lasts up to five times longer

The Ultimate C5 HMB has a Gates belt drive rather than a standard chain. This brings a number of benefits. You don't have to lubricate it, which means it doesn't attract dirt. The belt is also lighter than a chain and runs quietly, even when the e-bike is fully loaded. And last but not least: It lasts three to five times longer than a chain, making it a sustainable choice.

Controlled, safe braking

With an advanced e-bike like the Ultimate C5 HMB, you want to be able to brake safely without thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the braking power and the precision for controlled braking at all times. And that includes when it's raining or the roads are wet.

Maximum safety in the dark

If you use the bike at dusk or in the dark, you obviously want to see and be seen. After all, road safety is always a priority. The Ultimate C5 HMB is ideal for this too. You'll be noticed by other road users and have a perfect view of the road ahead. You turn the lights on and off using handlebar controls.

Bosch Performance Line (75Nm)

The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
