The Carrie.

The Carrie delivers on its promise: our compact cargo bike offers the largest-possible loading surface on as small a space as possible.

The Carrie.

The Carrie delivers on its promise: our compact cargo bike offers the largest-possible loading surface on as small a space as possible.
Riese and Muller

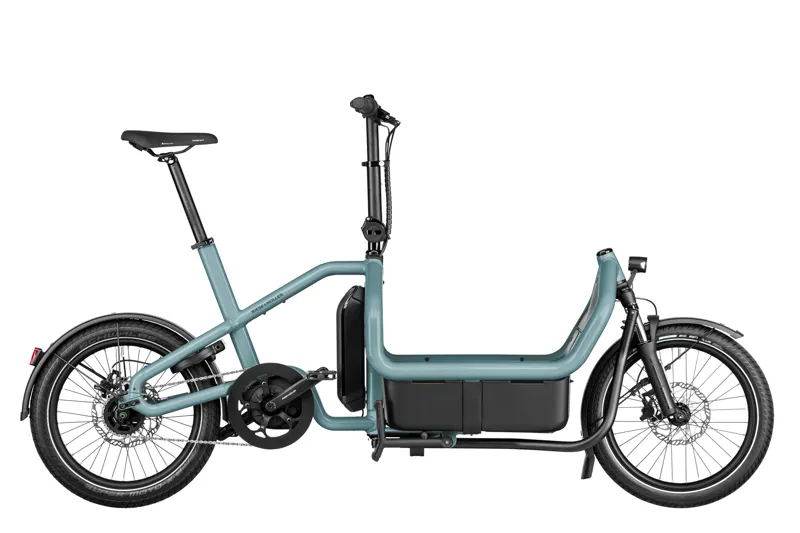

Riese and Muller Carrie Electric Bike Aqua

£5,469.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable. If shipping costs are subsidised the actual shipping costs incurred will be recovered from the original payment before any refund is issued. Any charges incurred by us will be recouped before a final eachange or refund value is settled.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. Our actual costs (not the subsidised amount you may have paid) for shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our sores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Riese and Muller Carrie Electric Bike Aqua

Season:2024

Brand:Riese and Muller

Code:RMCarAqu

The Carrie.

As versatile as your everyday life.

The Carrie delivers on its promise: our compact cargo bike offers the largest-possible loading surface on as small a space as possible. Forget heavy bags or rucksacks – you can choose from a wealth of transport accessories for all your needs. When folded out, the optional Flex Box provides plenty of storage space, yet you can effortlessly ride through narrow lanes and find a parking space almost anywhere when it is collapsed. And its minimalist frame in bold glossy colours simply needs to be seen.

The Carrie Options & Upgrades

Intuvia 100

Can be selected at no extra cost

Battery

Replaces PowerPack 545 with PowerPack 725

Carrier

Suspension seatpost

By.Schulz G.2 ST with cover

Additional chain lock with bag

Complements the standard frame lock, including chain bag

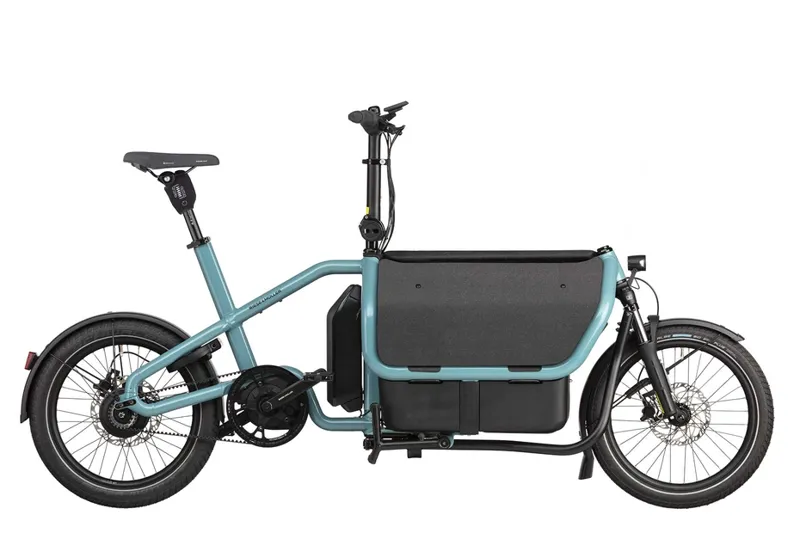

Flex Box

Box with foldable sides, made of EPP material

Child seat

Belts for two children, only in combination with flex box

Child seat with headrest

Belts for two children with headrest, flex box with not foldable, only in combination with flex box

Child cover

Child cover offers protection from rain or insects, fitted quickly, only in combination with flex box

Cargo bag

Bag with carrying straps for Basic Box & Flex Box, volume: max. 90 litres, not in combination with child seat
Technical Information

Specifications

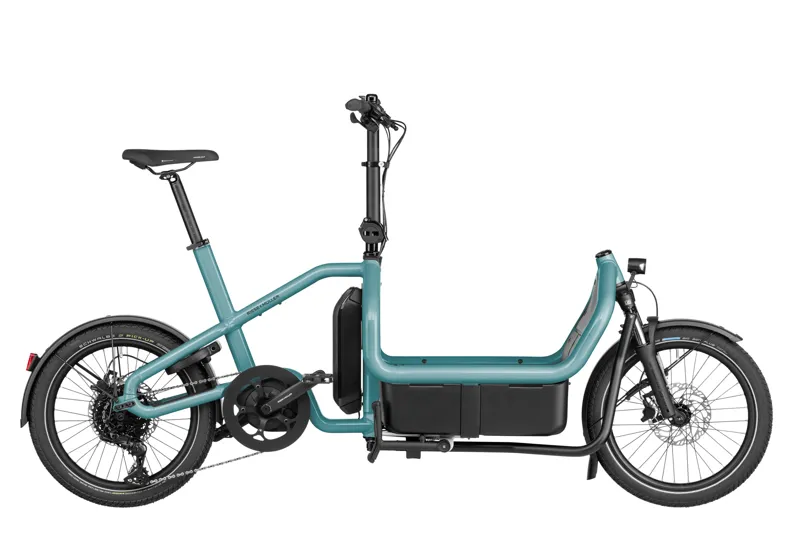

The Carrie Touring in Detail

  • Frame colour
    Aqua
  • Suspension fork
    SR Suntour Mobie A32 CGO, 20", 50mm
  • Headset
    Acros AZX-221, block lock; TH No. 9, semi-integrated
  • Seatpost
    JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
  • Seatclamp
    JD, 40,0 mm, QR
  • Tires
    Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Pick-Up 60-406
  • Tubes
    Schwalbe AV7
  • Rims
    Mach1 Trucky30 20" CNC
  • Spokes
    Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
  • Front hub
    Novatec Disc 32H
  • Rear hub
    Novatec Boost, QR, 36H
  • Battery
    Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
  • Motor
    Bosch Performance Line (smart system); Bosch Performance Line Sport 20mph+*
  • Display
    Bosch Purion 200; Bosch Intuvia 100*
  • Crankset
    FSA CK-601 170mm schwarz
  • Chain ring
    56T
  • Chain guard
    Chain guard
  • Chain
    KMC X10 ( 115x )
  • Cassette
    Microshift Microshift 10-speed, 11-42
  • Saddle
    Selle Royal Essenza Eco Male
  • Pedals
    M-Wave Steady Flat
  • Shifting system
    Microshift ADVENT X, 10-speed
  • Shifter
    Microshift ADVENT X, 10-speed
  • Handlebar
    Satori Horizon, 31,8 mm, 9°, B=620 mm
  • Stem
    Riese & Müller, adjustable height and angle
  • Grips
    Herrmans Grips Line
  • Brakes
    Magura MT4, disc brake
  • Front light
    Herrmans H-Black MR8
  • Tail light
    Büchel Z-Fire Mini
  • Mudguards
    SKS A69R; SKS A65R
  • Luggage rack
    Riese & Müller*K
  • Rubber
    Bibia*
  • Bell
    Billy
  • Kickstand
    Kickstand Riese & Müller
  • Lock
    ABUS Shield X+
  • RX Hardware
    RX Chip (für RX Services)*
  • Frame size [cm]
    Universal*

Specifications

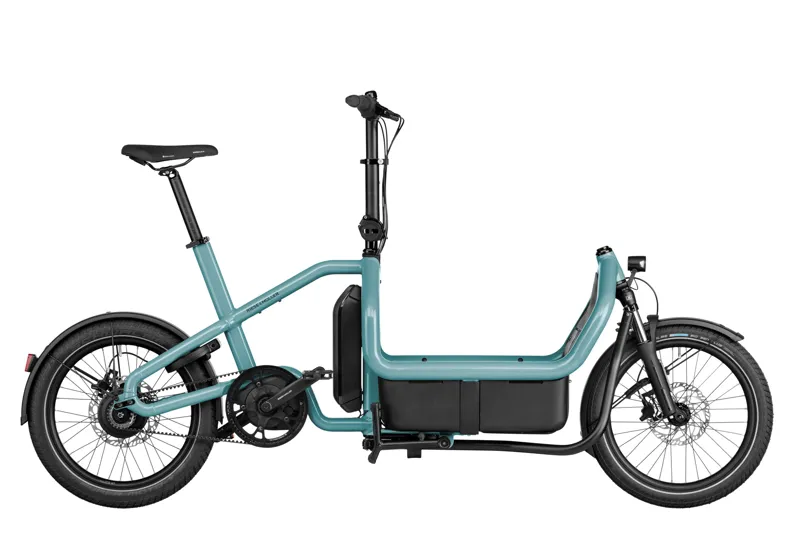

The Carrie Cario in Detail

  • Frame colour
    Aqua
  • Suspension fork
    SR Suntour Mobie A32 CGO, 20", 50mm
  • Headset
    Acros AZX-221, block lock; TH No. 9, semi-integrated
  • Seatpost
    JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
  • Seatclamp
    JD, 40,0 mm, QR
  • Tires
    Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Pick-Up 60-406
  • Tubes
    Schwalbe AV7
  • Rims
    Mach1 Trucky30 20" CNC
  • Spokes
    Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
  • Front hub
    Novatec Disc 32H
  • Rear hub
    Enviolo Heavy Duty
  • Battery
    Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
  • Motor
    Bosch Performance Line (smart system); Bosch Performance Line Sport 20mph+*
  • Display
    Bosch Purion 200; Bosch Intuvia 100*
  • Crankset
    FSA CK-601 170mm schwarz
  • Chain ring
    63T, for Gates drive belt CDX
  • Chain guard
    Riemenschutzring
  • Chain
    Gates drive belt CDX
  • Pinion
    24T, for Gates drive belt CDX
  • Saddle
    Selle Royal Essenza Eco Male
  • Saddle
    Selle Royal Essenza Eco Male
  • Pedals
    M-Wave Steady Flat
  • Shifter
    Enviolo grip shift Twist Pro, continuous
  • Handlebar
    Satori Horizon, 31,8 mm, 9°, B=620 mm
  • Stem
    Riese & Müller, adjustable height and angle
  • Grips
    Herrmans Grips Line
  • Brakes
    Magura MT4, disc brake
  • Front light
    Herrmans H-Black MR8
  • Tail light
    Büchel Z-Fire Mini
  • Mudguards
    SKS A69R; SKS A65R
  • Luggage rack
    Riese & Müller*
  • Rubber
    Bibia*
  • Bell
    Billy
  • Kickstand
    Kickstand Riese & Müller
  • Lock
    ABUS Shield X+
  • RX Hardware
    RX Chip (für RX Services)*
  • Frame size [cm]
    Universal*
The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits
* May differ depending on the availability in your country, design or configuration of the model.
Sizing Information

GEOMETRY

The Carrie Touring in numbers

Frame Height Universal

Top tube length [cm]53
Head tube angle [°]70
Seat tube angle [°]69,5
Trail [mm]56
Wheelbase [cm]155
Bottom bracket height [cm]28,5
Stand-over height [cm]58
Chainstay length [cm]40,6
Overall length [cm]209
Wheel size ["]20
Head tube length [mm]85
Front suspension travel [mm]50
Rear dropout width [mm]148
Weight [kg]34,4
Weight [lbs]75,6
Gross vehicle weight rating [kg]200
Gross vehicle weight rating [lbs]440,9
Max. rider weight [kg]110
Weight rating: Luggage rack [kg]27
Weight rating: Handlebar bag/basket [kg]no
Childseat compatibility carrieryes
Trailer compatibility: Single wheel/single attachment pointno
Trailer compatibility: Two wheel/single attachment pointyes
Compatibility: Tagalong trailer bikeno

GEOMETRY

The Carrie Vario in numbers

Frame Height Universal

Top tube length [cm]53
Head tube angle [°]70
Seat tube angle [°]69,5
Trail [mm]56
Wheelbase [cm]155
Bottom bracket height [cm]28,5
Stand-over height [cm]58
Chainstay length [cm]40,6
Overall length [cm]209
Wheel size ["]20
Head tube length [mm]58
Front suspension travel [mm]50
Rear dropout width [mm]135
Weight [kg]35,7
Weight [lbs]78,7
Gross vehicle weight rating [kg]200
Gross vehicle weight rating [lbs]440,9
Max. rider weight [kg]110
Weight rating: Luggage rack [kg]27
Weight rating: Handlebar bag/basket [kg]no
Childseat compatibility carrieryes
Trailer compatibility: Single wheel/single attachment pointno
Trailer compatibility: Two wheel/single attachment pointyes
Compatibility: Tagalong trailer bikeno
Professional Opinion

RIESE & MULLER CARRIE DETAILS


The Carrie.

As versatile as your everyday life.

Minimal parking space and tight curves: you no longer have these worries with the Carrie. Thanks to its narrow 43 cm Basic Box, you can now ride with as much agility as on a regular bike, and you’ll always find a place to park it in the bike area in the basement. And with its two-legged stand, you can simply jack up the cargo bike and safely park it even with it fully loaded. When collapsed, the optional Flex Box is high enough to transport a regular drinks crate – even up to three when folded out. However, go for the carrier with MIK system if you want to carry even more. (Loading space approved for up to max. 80 kg, carrier approved for up to max. 27 kg.)


Compact shape

A bike for any time and anywhere.

The Multicharger Mixte is ideal for transporting people. A passenger weighing up to 65 kg can grab a spot with the optional passenger kit. Even one or two little ones can come along for the ride – safe and secure thanks to the optional safety bar kit with its comfortable foam seat, safety bar, sideloader and wheel guard. The Multicharger Mixte offers the perfect solution for everyone: just select the right accessories and take your loved ones along with you. With its powerful Bosch motor with 85 Nm, you can reach your destination without problems even fully loaded.

Multifunctionality

Flexible transport options.

The inside of the Basic Box measures 45 x 30cm and comes with a hard-wearing rain cover to protect your load. With the Flex Box, its name says it all: folded out, it offers an extended area of 45 by 65cm, providing plenty of room for your sports bag or the weekly shopping. And you can conveniently load everything, thanks to the optional cargo bag that holds up to90 litres. Opt for the Flex Box and child seat if you want to transport younger passengers. The child cover reliably protects your passengers from the wind and weather. (It accommodates up to two children age seven or younger. Please observe national regulations for the transport of children on bikes before using.)

Sustainable materials

Built for the future.

We have based the design of the Carrie on circular design principles: Circular design aims to develop products for the longest-possible service life, at the end of which they enter a new product life cycle. Its compact frame is made of recycled aluminium and is powder-coated to conserve resources. We have dispensed with PVC that can be potentially harmful to health with the optional child cover. The Carrie accessories are designed to be easy to dismantle, clean and repair, if necessary, to keep you on the road trouble-free for years to come.

Equipment and accessories

Reliably practical.

The Bosch Performance Line motor and the PowerPack 545Wh battery mounted vertically on the frame give you up to 60 kilometresfrom a single charge. And you can comfortably ride over kerbs or potholes, thanks to its optional suspension seatpost. With its adjustable saddle height and angle- and height-adjustable stem, the seat position can be configured to accommodate riders from 1.50m to 2.00m tall, and sporty to comfortable riding preferences.


Motors, batteries and displays – great performance from a single source.


Cargo accessories

Flex Box

The Flex Box is an extension of the Basic Box (45 by 30cm) for transporting larger loads and offers numerous transport options both when folded out and in. When collapsed, it is high enough to transport a regular drinks crate. And when folded out, its extended area of approx. 45 by 65cm provides ample space for your weekly shopping or sports bag. It is fitted with a box lock that protects your load from unwanted access, if need be.

Child seat

A sturdy bench seat that can be suspended in the Flex Box in two different ways serves as a child seat. Depending on its position, it will accommodate either one taller or two smaller children age seven or younger – reliably protected by the five-point seat belts. And the comfortable back cushion automatically folds in when the Flex Box is closed. Please observe national regulations for the transport of children on bikes before using.

Child cover

The child cover reliably protects your younger passengers from the wind, rain and sun. It can be combined with the optional Flex Box, which can still be easily folded out and closed even when the child cover is fitted. The cover includes an additional panel that you can either use to darken the viewing window or as a rear panel. We have deliberately refrained from using fibreglass rods and PVC film material in the production process.

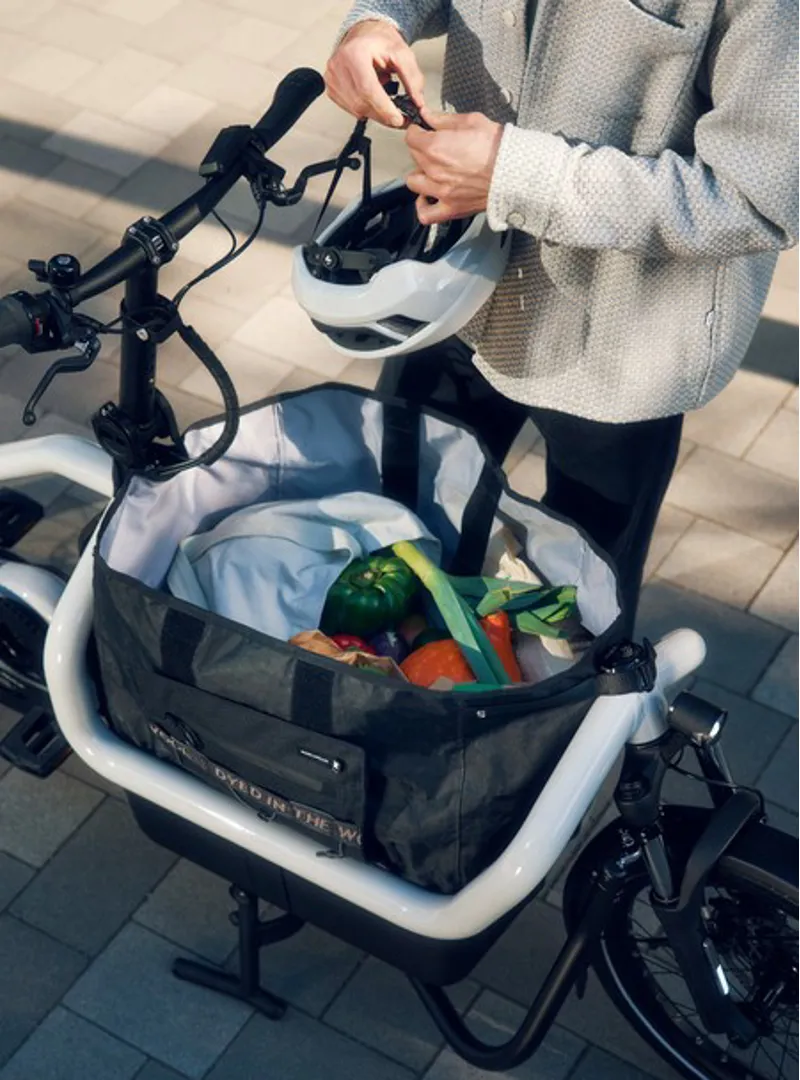

Cargo bag

The practical cargo bag with two handles is perfect for loading and unloading your cargo. Alternatively, pre-drilled holes mean that you can screw it permanently to the floor of the Basic Box. The cargo bag holds up to 90litres. There is also a zipped pocket on its outside that can hold smaller items.

Carrier

The carrier with MIK system provides even more storage space: you can quickly and securely attach pannier racks, baskets, bike accessories, and even a dog basket, to the sturdy adapter plate. Accessories can be obtained from your dealer.


Options

Intuvia 100

The Intuvia 100 display is simple and intuitive to use and offers a perfect overview of key riding data, including distance, trip duration, range, speed and riding mode. The Intuvia 100 also provides precise information on the battery charge level as a percentage. It can be conveniently operated using the LED Remote on the handlebars.

725 Wh

Carrier

The carrier with MIK system provides even more storage space: you can quickly and securely attach pannier racks, baskets, bike accessories, and even a dog basket, to the sturdy adapter plate. Accessories can be obtained from your dealer.

Suspension seatpost by.Schulz G.2 ST with cover

The by.Schulz G.2 ST parallelogram-shaped spring seatpost offers a degree of comfort that makes any dirt track feel like a freshly paved road. There are five different hardness levels of suspension element to choose from depending on the rider’s weight and comfort preferences. The neoprene cover supplied protects the suspension element from dirt.

Additional chain lock with bag

The sturdy Abus chain lock, in addition to the Abus Shield frame lock, provides twice the security for your E-Bike. The 130 cm long chain is latched onto the frame lock and you can quickly lock your bike to the nearest lamppost or lock it together with up to three other bikes. The chain thickness of 6mm ensures a high level of anti-theft protection. Especially practical: frame lock, chain lock and battery lock all use the same key. The bag is firmly attached to the saddle and allows quick and easy removal of the chain lock thanks to its ergonomic shape and Fidlock magnetic closure. Please note: for smaller frame sizes the lowest saddle position may not be usable when the lock bag is fitted.


The perfect gear for every pace.


RIESE AND MULLER UPGRADES & OPTIONS

FRAME COLOUR

Shadow, Aqua, Anise

BATTERY

545 Wh, 725 Wh

DISPLAY

Intuvia 100

The Intuvia 100 display is simple and intuitive to use and offers a perfect overview of key riding data, including distance, trip duration, range, speed and riding mode. The Intuvia 100 also provides precise information on the battery charge level as a percentage. It can be conveniently operated using the LED Remote on the handlebars.

Purion 200

Fully networked display and control unit in one: the Purion 200 provides compact and easy-to-read information about your speed, range and more. And, thanks to its ambient light sensor, you can quickly read the information even in bright sunshine and darkness. Located directly adjacent to your thumb on the handlebar, it lets you ergonomically and intuitively control your bike’s functions.

CARGO AREA

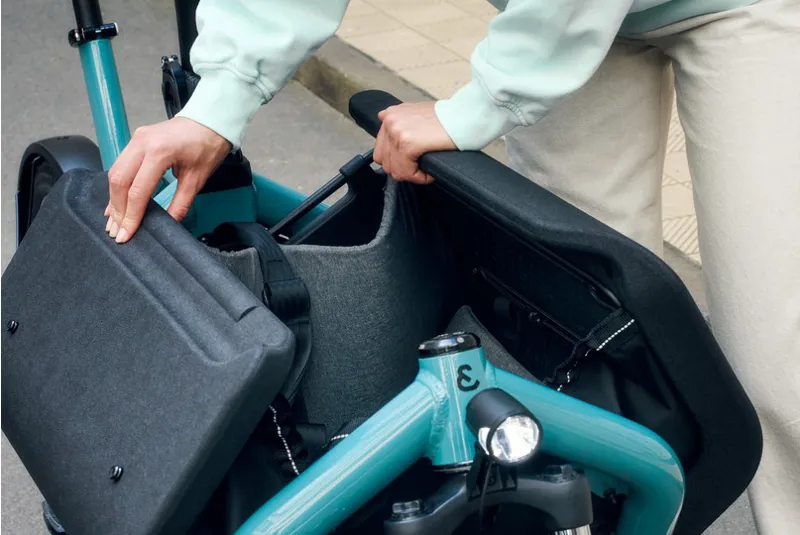

Basic Box

The inside of the eco-friendly polypropylene Basic Box, is 45cm long and 30cm wide making it perfectly suited for transporting a regular drinks crate. Its hard-wearing rain cover protects your load perfectly. There is a bungee cord on each inside wall of the Basic Box for stowing away the rain cover when it is not in use.

Flex Box

The Flex Box is an extension of the Basic Box (45 by 30 cm) for transporting larger loads and offers numerous transport options both when folded out and in. When collapsed, it is high enough to transport a regular drinks crate. And when folded out, its extended area of approx. 45 by 65 cm provides ample space for your weekly shopping or sports bag. It is fitted with a box lock that protects your load from unwanted access, if need be.

ACCESSORIES CARGO AREA

Child seat

A sturdy bench seat that can be suspended in the Flex Box in two different ways serves as a child seat. Depending on its position, it will accommodate either one taller or two smaller children age seven or younger – reliably protected by the five-point seat belts. And the comfortable back cushion automatically folds in when the Flex Box is closed. Please observe national regulations for the transport of children on bikes before using.

Child seatwith headrest

The headrest offers additional safety, especially when transporting taller children. A sturdy bench seat that can be suspended in the Flex Box in two different ways serves as a child seat. Depending on its position, it will accommodate either one taller or two smaller children age seven or younger – reliably protected by the five-point seat belts. And the comfortable back cushion automatically folds in when the Flex Box is closed. However, when the headrest is fitted, it cannot be closed. Please observe national regulations for the transport of children on bikes before using.

Cargo bag

The practical cargo bag with two handles is perfect for loading and unloading your cargo. Alternatively, pre-drilled holes mean that you can screw it permanently to the floor of the Basic Box. The cargo bag holds up to 90litres. There is also a zipped pocket on its outside that can hold smaller items.

WEATHER PROTECTOR

Rain cover

The durable rain cover can be used with the Basic Box and Flex Box – whether open or closed. It reliably protects your cargo from water and dirt. When not in use, the rain cover can be stored on the inside walls of the Basic Box with the lashing strap.

Child cover

The child cover reliably protects your younger passengers from the wind, rain and sun. It can be combined with the optional Flex Box, which can still be easily folded out and closed even when the child cover is fitted. The cover includes an additional panel that you can either use to darken the viewing window or as a rear panel. We have deliberately refrained from using fibreglass rods and PVC film material in the production process.

CARRIER

Carrier

The carrier with MIK system provides even more storage space: you can quickly and securely attach pannier racks, baskets, bike accessories, and even a dog basket, to the sturdy adapter plate. Accessories can be obtained from your dealer.

SEATPOST

Unsuspended seatpost

Suspension seatpost by.Schulz G.2 ST with cover

The by.Schulz G.2 ST parallelogram-shaped spring seatpost offers a degree of comfort that makes any dirt track feel like a freshly paved road. There are five different hardness levels of suspension element to choose from depending on the rider’s weight and comfort preferences. The neoprene cover supplied protects the suspension element from dirt.

LOCK

Additional chain lock with bag

The sturdy Abus chain lock, in addition to the Abus Shield frame lock, provides twice the security for your E-Bike. The 130 cm long chain is latched onto the frame lock and you can quickly lock your bike to the nearest lamppost or lock it together with up to three other bikes. The chain thickness of 6mm ensures a high level of anti-theft protection. Especially practical: frame lock, chain lock and battery lock all use the same key. The bag is firmly attached to the saddle and allows quick and easy removal of the chain lock thanks to its ergonomic shape and Fidlock magnetic closure. Please note: for smaller frame sizes the lowest saddle position may not be usable when the lock bag is fitted.
