Haibike

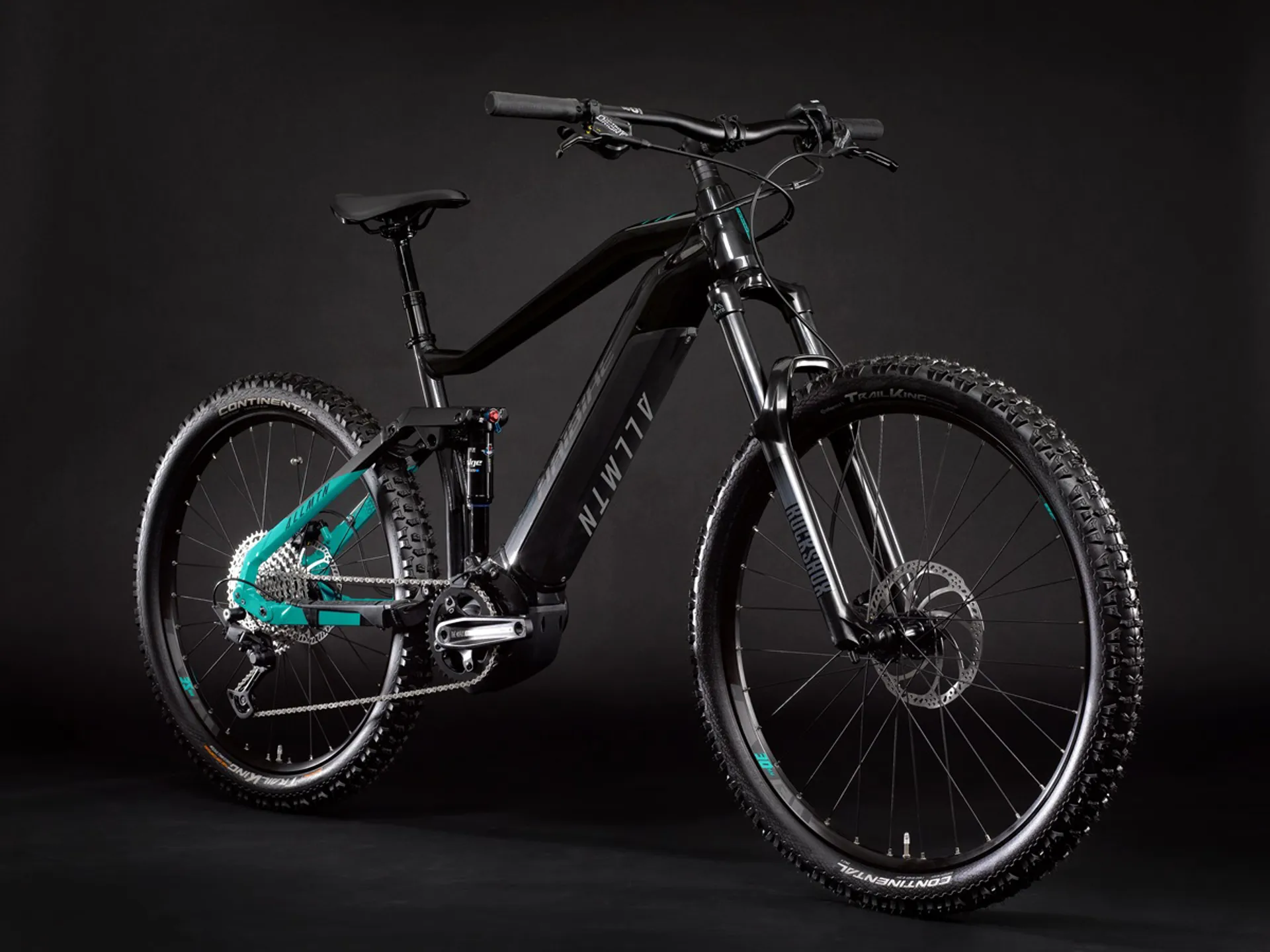

Haibike AllMtn 1 630Wh Electric Mountain Bike in Anthracite

£3,949.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable. If shipping costs are subsidised the actual shipping costs incurred will be recovered from the original payment before any refund is issued. Any charges incurred by us will be recouped before a final eachange or refund value is settled.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. Our actual costs (not the subsidised amount you may have paid) for shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our stores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Haibike AllMtn 1 630Wh Electric Mountain Bike in Anthracite

Season:2021

Brand:Haibike

Code:28735ANTBLU

The Haibike ALLMTN 1 is the entry into the all mountain area. An agile frame, Yamaha ePerformance and powerful components make this eMTB a perfectly balanced and dynamic mountain bike. Whether the home trail after work or the panorama tour in the Alps, the AllMtn1 is available for everything. Yamaha Motor together with the know-how of Haibike. That can only be good. The AllMtn 1 e-bike wants one thing above all: to be pushed to its limits! Whether uphill or downhill, you can fully extend this e-bike with 160 mm of travel on any type of trail and experience the optimal flow without having to do without the extra lap. Modern, well thought-out e-bike design at a fair price, that's Haibike

Technical Information
Specifications

The AllMtn 1 in detail
Frame colour
aquamarine/black, anthracite/turqoise

Frame Family
aluminium, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 160mm

Fork
RockShox 35 Silver, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost

Battery
InTube, 630Wh

Motor
Yamaha PW-ST System, 250W, 70Nm, 25km/h

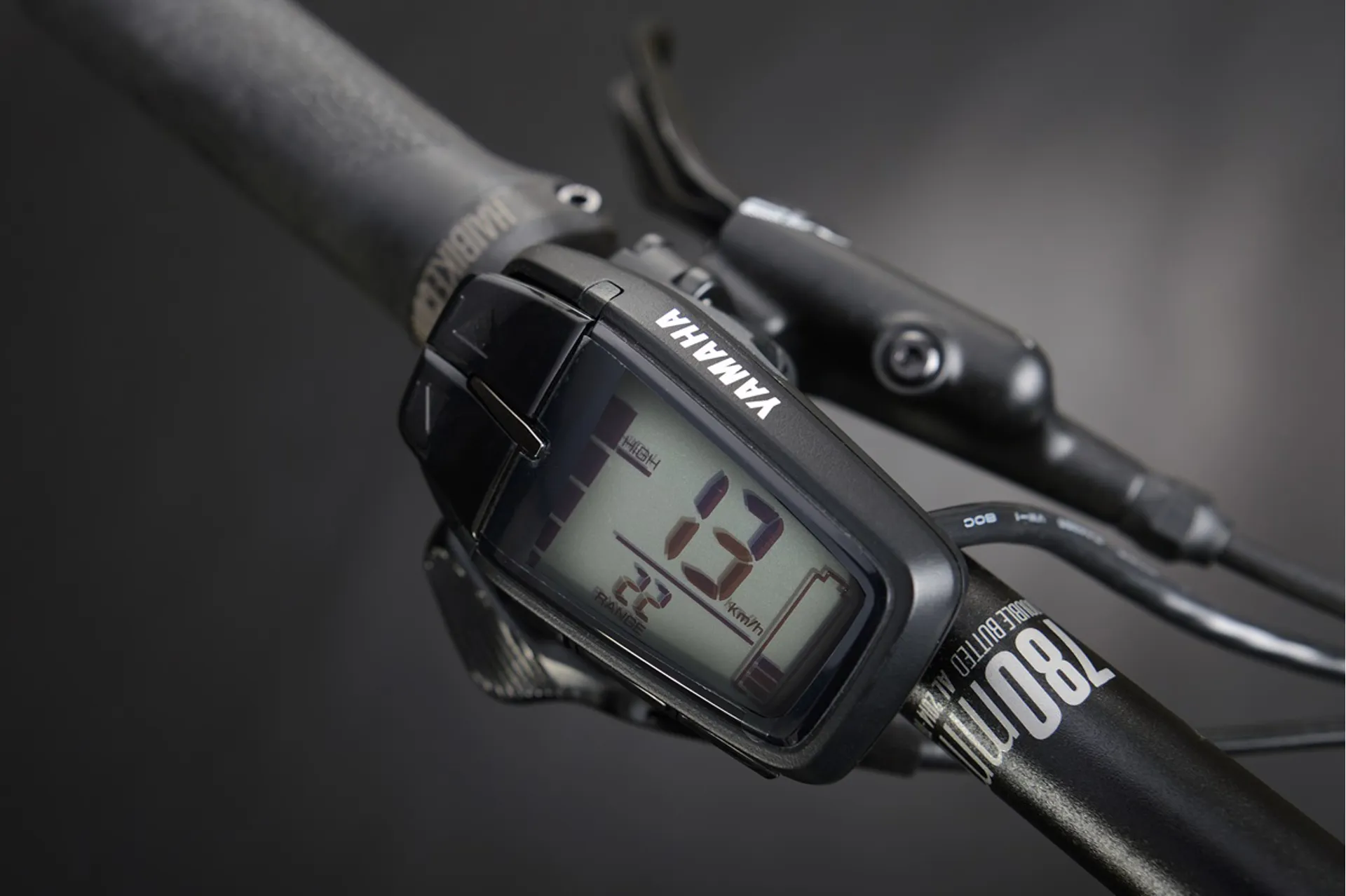

Display
Yamaha Side Switch

Wheel size ['']
29/27.5

Sprocket
Shimano HG5100, 11-51 teeth

Chain
KMC X11

Chain Ring
steel, 38

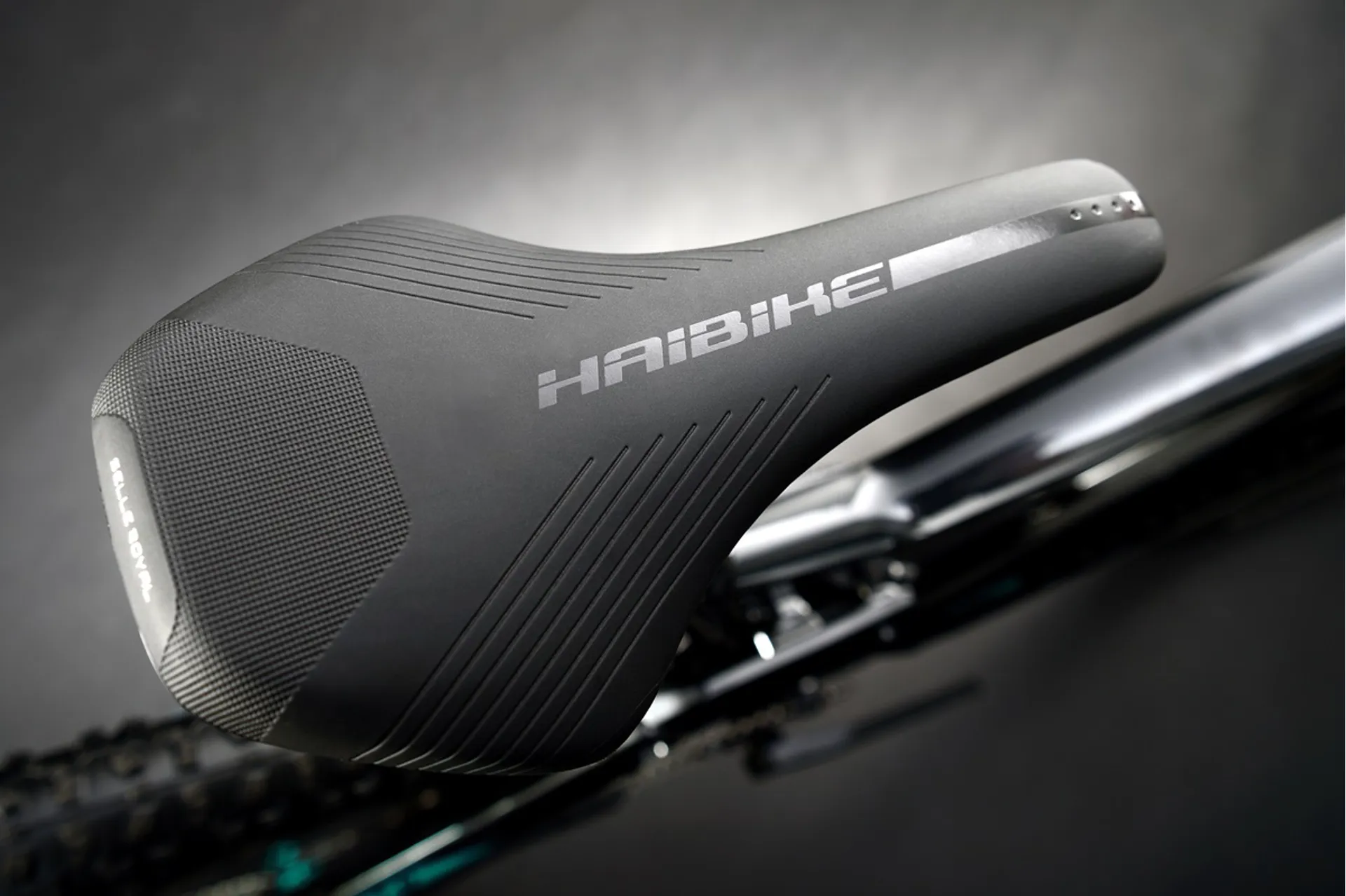

Saddle
Selle Royal Vivo

Shift Lever
Shimano Deore M5100, trigger switch

Frame Type
MTB Fully

Charger
Schnellladegerät 4A

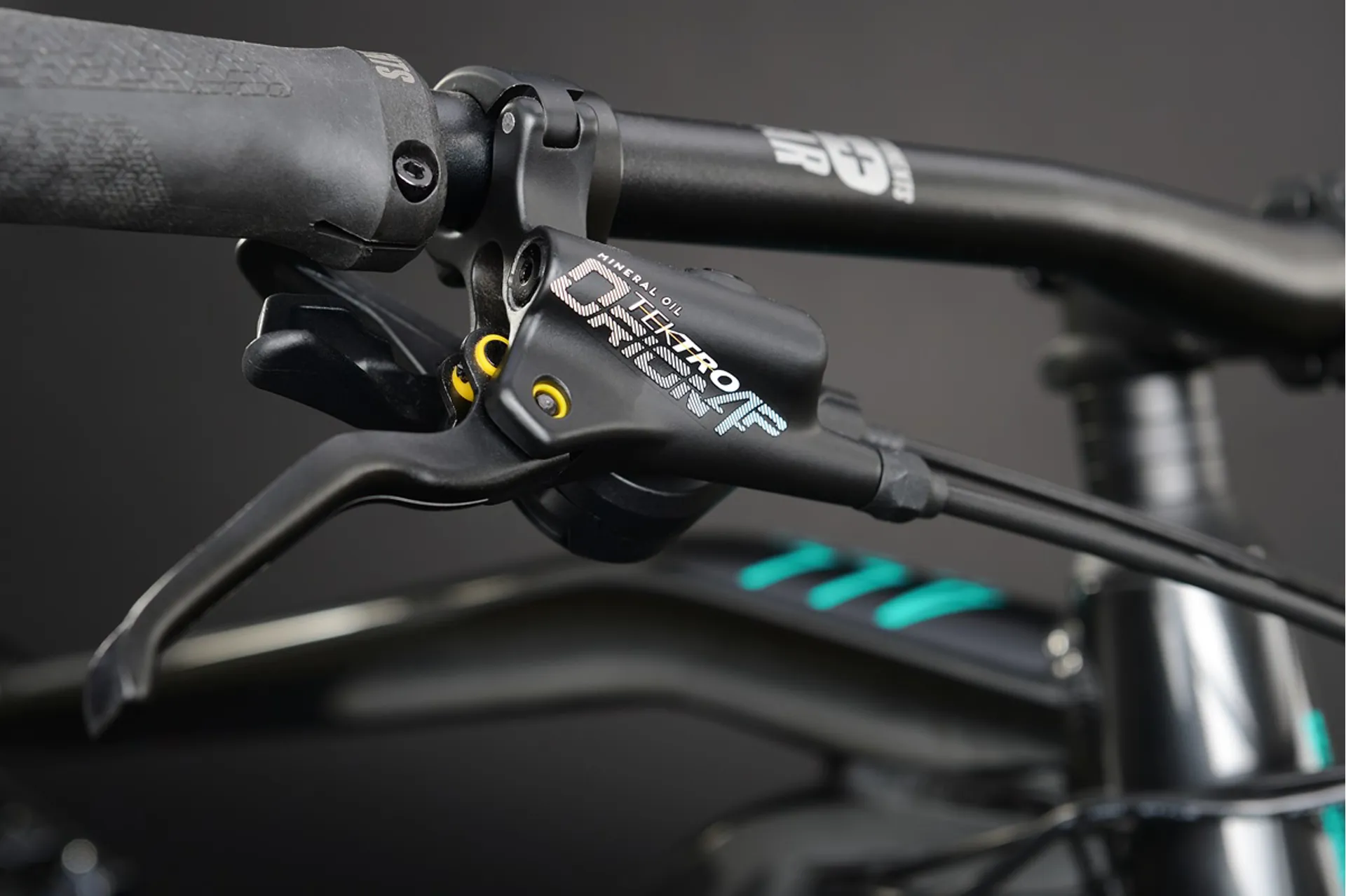

Brake Lever
Tektro Orion M745, aluminium

Brake (Front)
Tektro Orion M745, 203mm

Brake (Rear)
Tektro Orion M745, 180mm

Tyre
Continental Trail King, 60-622 / Continental Trail King, 65-584

Rims
Rodi Tryp 30, eyed, double-walled rim, aluminium

Front Wheel Hub
Haibike Components TheHub ++

Rear Wheel Hub
Haibike Components TheHub ++ Steckachse 12x148

Spokes
Sapim Leader, black

Handlebar
Haibike Components TheBar +++ Gravity 780mm

Grips
Haibike MTB grips

Stem
Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 7˚

Headset
A-Head Tapered

Seat Post
Haibike Components TheSeatpost ++, 31.6mm, aluminium

Pedals
Freeridepedal aluminium, mit Reflektor

Permitted Total Weight
120.0 kg
Bicycle Type
MTB All Mountain

Frame height [cm]
42 cm*; 44 cm*; 47 cm*; 50 cm*
Sizing Information
GEOMETRY


FRAME SIZE (I.E. S, M, ...)SMLXL

A

FRAME HEIGHT (CM)

42.0 cm

44.0 cm

47.0 cm

50.0 cm

B

SEAT TUBE ANGLE

73.0 degrees

73.0 degrees

73.0 degrees

73.0 degrees

C

SEAT ANGLE

73.0 degrees

73.0 degrees

73.0 degrees

73.0 degrees

D

HEAD TUBE LENGTH

115.0 mm

120.0 mm

130.0 mm

145.0 mm

E

HEAD TUBE ANGLE (DEGREES)

65.0 degrees

65.0 degrees

65.0 degrees

65.0 degrees

F

TOP TUBE HORIZONTAL

600.0 mm

630.0 mm

660.0 mm

690.0 mm

G

CHAIN STAY LENGTH

460.0 mm

460.0 mm

460.0 mm

460.0 mm

H

BOTTOM BRACKET DROP

-20.0 mm

-20.0 mm

-20.0 mm

-20.0 mm

I

WHEELBASE

1202.0 mm

1232.0 mm

1264.0 mm

1296.0 mm

J

STACK

636.0 mm

641.0 mm

650.0 mm

663.0 mm

K

REACH

406.0 mm

434.0 mm

461.0 mm

487.0 mm

Professional Opinion


THE BEST ePERFORMANCE: eMOUNTAINBIKES FROM HAIBIKE


Are you at home in the mountains? Do you long to discover and scale new trails with your eBike – pushing further and higher than ever before? With our eMountainbikes, it's only the stunning mountain views that will take your breath away, not the climb. All our eMTBs are fitted with powerful motors from Bosch, Yamaha and TQ give you that extra power uphill, ensuring countless unforgettable experiences among the peaks. And, there are no limits downhill either: with our eMTBs you have everything totally under control, even if the terrain becomes more challenging. Our products are among the best and most innovative in the market and constantly set new standards in terms of technology and design. They have already won numerous prizes, ranked top in tests, and garnered craftsmanship awards. Our eBikes ensure you will have more fun off-road, on steep climbs well as downhill. Whether All Mountain, Enduro, Downhill, Trail or Fat eBike: we have the right eMountainbike for you and for every type of use – from a Tourenfully for Transalp tours to a downhill eBike for the bike park.


Do you want to experience ePerformance? Take a look at our 2021 models and find the right eMTB for your next adventure.
