FRAME
Aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm
FRAME TYPE
MTB Fully
FRAME HEIGHT
41 cm, 44 cm, 47 cm, 50 cm
WHEEL SIZE
29" / 27,5"
MOTOR
Yamaha PW-X3, 250W, 85Nm, 25km/h

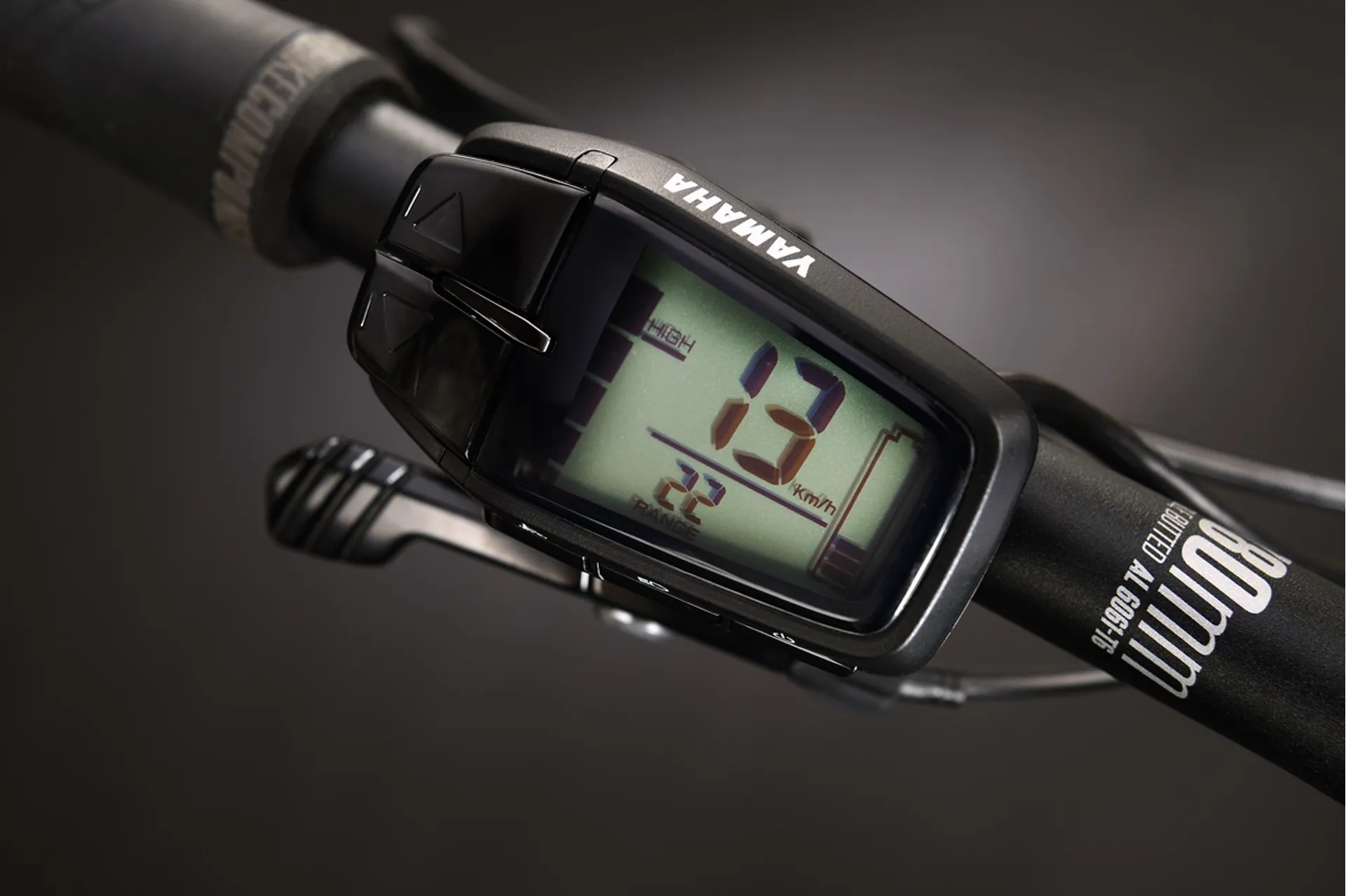

DISPLAY
Yamaha Interface - X
BATTERY
InTube 720Wh
CHARGER
Fast Charger 4A
FORK
FOX 36 Float Performance Luft 160 Lockout, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost
DAMPER
FOX Float DPS Performance EVOL LV Trunnion, air
REAR DERAILLEUR
Sram GX Eagle, 12-speed
SHIFT LEVER
Sram GX Eagle, trigger switch
SPROCKET
Sram Eagle PG1230, 11-50 teeth
CHAIN
Sram SX Eagle
CHAINRING
Sram X-Sync 2, 38
CHAIN GUIDE
Nylon directmount

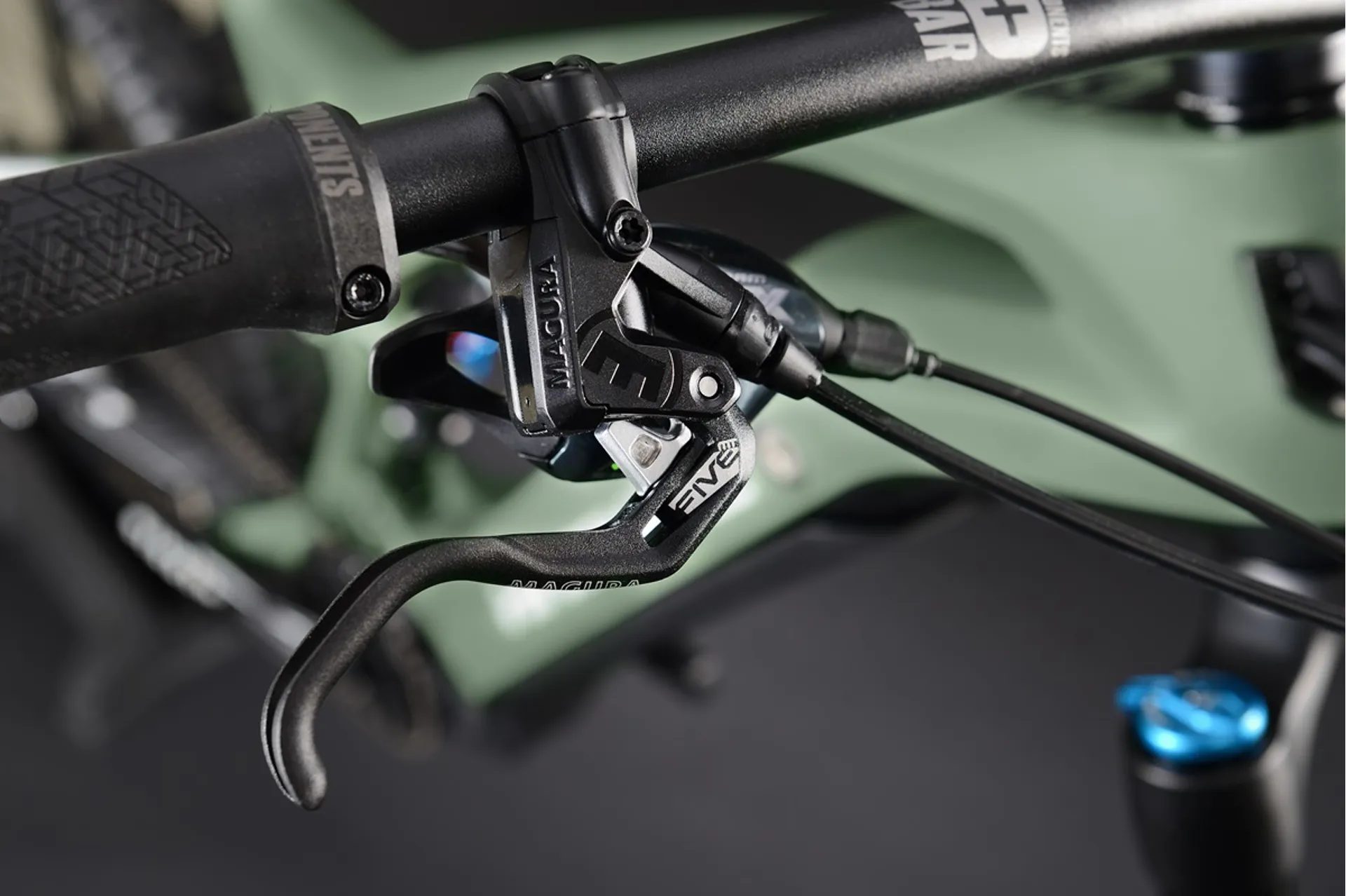

BRAKE LEVER
Magura MT7 HC-lever, aluminium
BRAKE FRONT
Magura MT7, 203mm
BRAKE REAR
Magura MT7, 203mm
TYRES FRONT
Maxxis Minion DHF, 63-622
TYRES REAR
Maxxis Minion DHR II, 66-584
RIMS FRONT
WTB ST i30 TCS, double-walled rim
RIMS REAR
WTB ST i35 TCS, double-walled rim
FRONT WHEEL HUB
Haibike Components The Hub ++ Steckachse 15x110mm
REAR WHEEL HUB
Haibike Components TheHub ++ Steckachse 12x148
SPOKES
Sapim Race, black
HANDLEBAR
Haibike Components TheBar +++ 780mm
GRIPS
Haibike MTB grips
STEM
Haibike Components TheStem +++, Bar bore: 31.8mm
HEADSET
Acros BlockLock
SADDLE
fi'zi:k Terra Aidon X5-160
SEAT POST
Dropper-Post Remote, telescope, 34.9mm, aluminium
PEDALS
Freeridepedal aluminium, mit Reflektor
PERMITTED TOTAL WEIGHT
150.0 kg
BICYCLE TYPE
MTB All Mountain
