Motor - Yamaha PW-X3, 250W, 85Nm, 25km/h
Display - Yamaha Side Switch
Battery - InTube 720Wh
Charger - 4A
Frame - Aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount
Fork - RockShox Yari RC, air, Aluschaft 1 1/8 - 1 1/2'' tapered, thru-axle Boost
Damper - RockShox Deluxe Select Plus, air
Rear derailleur - Shimano SLX M7100, 12-speed
Shift lever - Shimano Deore SLX M7100
Sprocket - Shimano M6100, 10-51 teeth
Chain - Shimano CN-M6100
Chainring - Aluminium, Haibike Components, 36
Chain guide - Nylon directmount
Brake lever - Shimano Deore M6100, aluminium
Brake front - Shimano Deore M6120, aluminium, 203mm
Brake rear - Shimano Deore M6120, aluminium, 203mm
Tyres front - Maxxis Minion DHF, 63-622
Tyres rear - Maxxis Minion DHR II, 66-584
Rims front - WTB ST i30 TCS, double-walled rim
Rims rear - WTB ST i35 TCS, double-walled rim
Front wheel hub - Shimano MT410-B
Rear wheel hub - Shimano MT410-B
Spokes - Sapim Race, black
Handlebar - Haibike Components TheBar +++ 780mm
Grips - Haibike MTB grips
Stem - Haibike Components TheStem +++, Bar bore: 31.8mm
Headset - Acros BlockLock
Saddle - Selle Royal Vivo
Seat post - Dropper-Post Remote, telescope, 34.9mm, aluminium
Pedals - Freeridepedal aluminium, mit Reflektor
Permitted total weight - 150kg

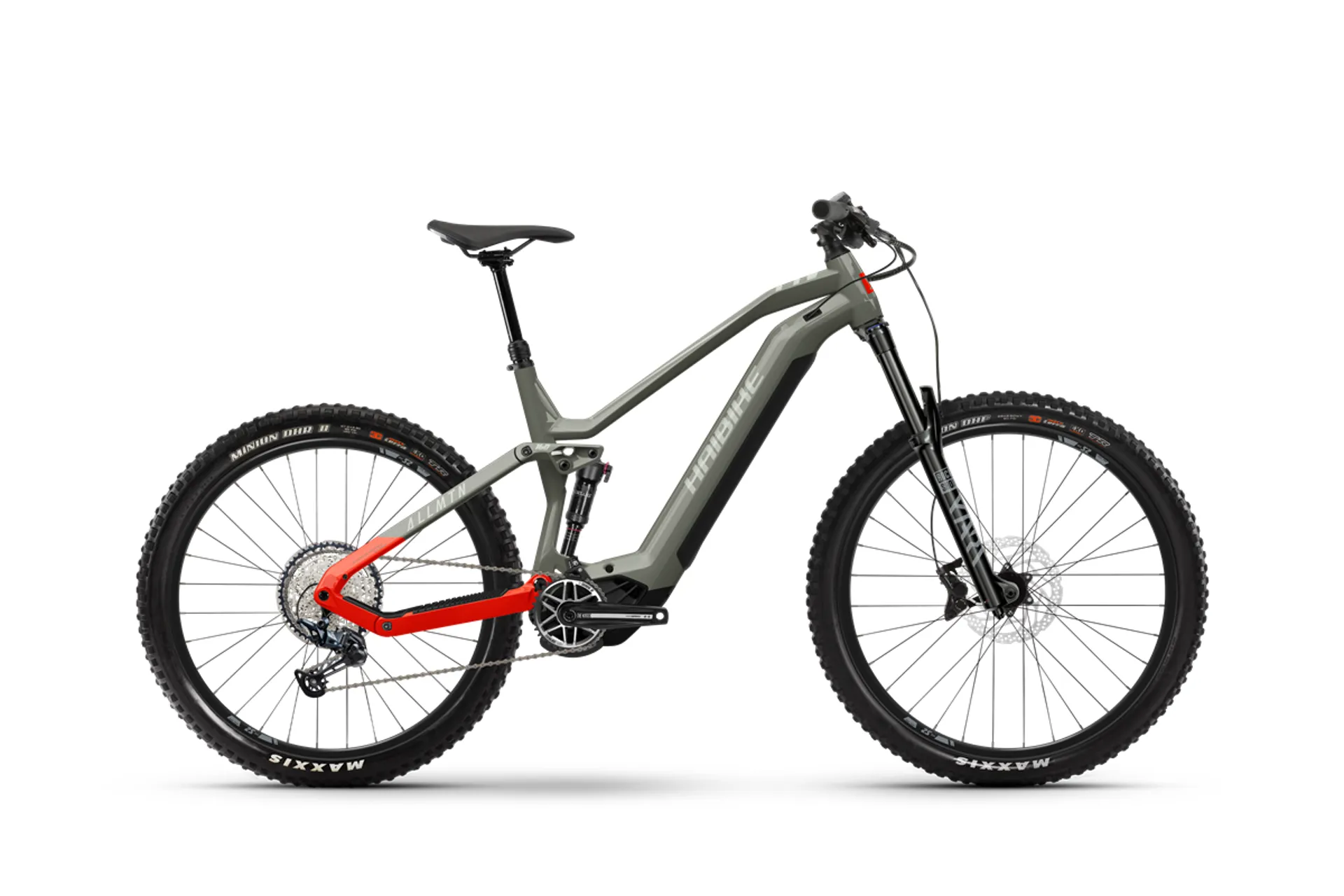

Bicycle type - MTB All Mountain
* Please note that manufacturers retain the right to change specification without notice to solve any supply chain issues that arise.
