With the Yamaha PW-X3 85Nm motor system and 720Wh battery sleekly wrapped in a super strong alloy frame and 160 travel f&r this machine is amazing value for money and a whole lot of fun. Finance, cycle to work and good stock from April 2023.
With the Yamaha PW-X3 85Nm motor system and 720Wh battery sleekly wrapped in a super strong alloy frame and 160 travel f&r this machine is amazing value for money and a whole lot of fun. Finance, cycle to work and good stock from April 2023.
Haibike

Haibike AllMtn 3 eMTB Yamaha PWX3 85Nm 720Wh

£4,799.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable. If shipping costs are subsidised the actual shipping costs incurred will be recovered from the original payment before any refund is issued. Any charges incurred by us will be recouped before a final eachange or refund value is settled.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. Our actual costs (not the subsidised amount you may have paid) for shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our stores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

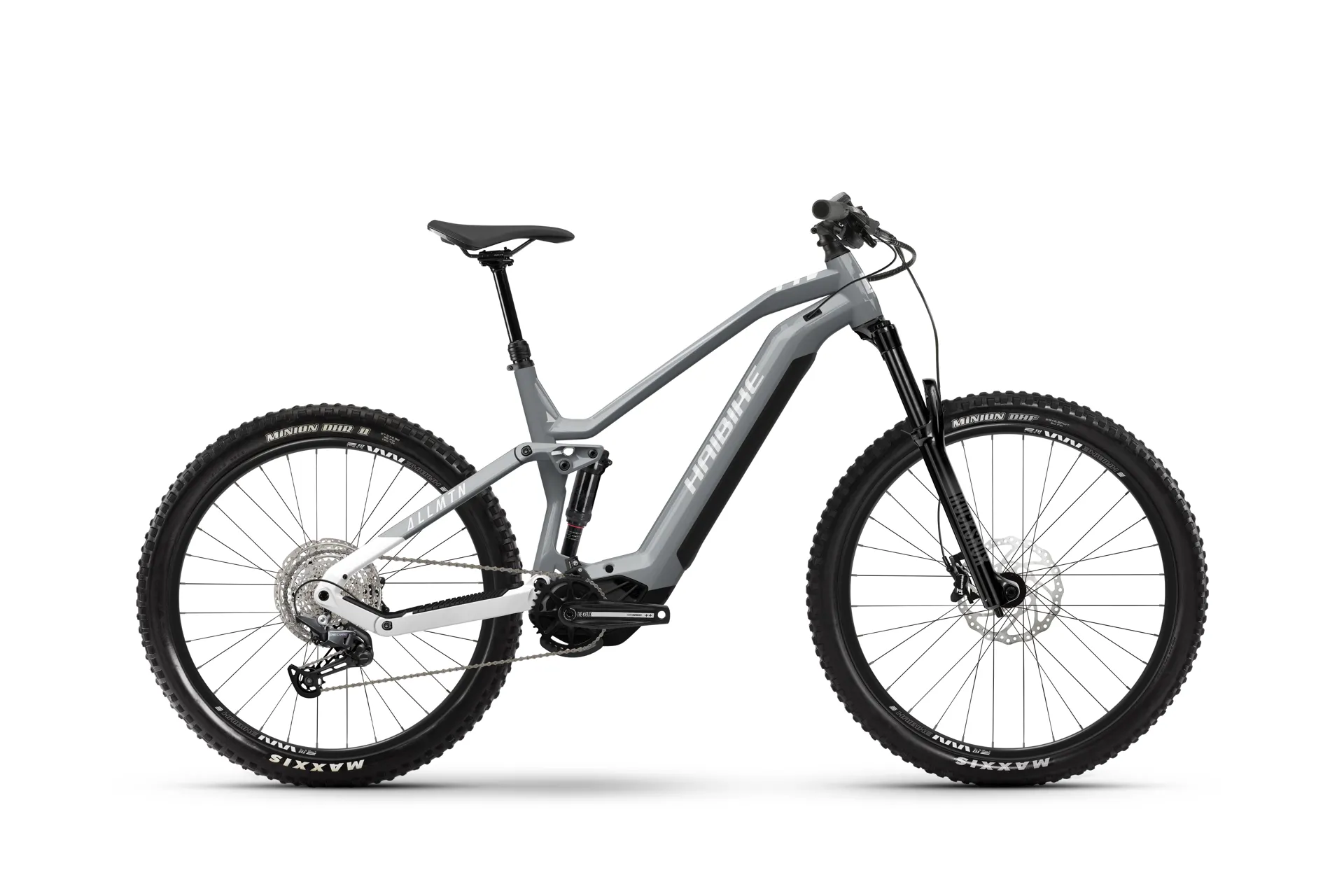

Haibike AllMtn 3 eMTB Yamaha PWX3 85Nm 720Wh

Season:2023

Brand:Haibike

Code:HMBP1SIL

Looking for a robust full suspension emtb for taking on any terrain? Our new allmtn 3 is the perfect all-rounder for you: with 160mm suspension travel front and rear, powerful 4-piston Shimano disc brakes and a robust yamaha pw-x3 drive
Technical Information
  • ENGINE
    Yamaha, PW-X3, 250W, 85 Nm
  • DISPLAY
    Yamaha, Side Switch, 1.7" LCD, 7 functions
  • BATTERY
    InTube, 720 Wh
  • FORK
    RockShox, 35 Gold RL, Air, travel= 160 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • DAMPER
    RockShox, Deluxe select, Air, Trunnion Mount
  • CRANK ARM
    Haibike Components, The Crank ++, Aluminium
  • BRAKE (FRONT)
    Shimano, MT420, 4-piston disc brake
  • BRAKE (REAR)
    Shimano, MT420, 4-piston disc brake
  • TUBE
    Presta valve
  • RIM
    WTB, ST i30 TCS, Double Wall
  • CLAMPING RING
    Internal hexagon, 38 mm
  • REAR DERAILLEUR
    Shimano, Deore M6100
  • SHIFT LEVER
    Shimano, Deore M6100, Trigger switch
  • BOTTOM BRACKET
    integrated in the motor
  • SPROCKET
    Shimano, M6100, 10 - 51 teeth
  • CHAIN
    Shimano, CN-M6100
  • CHAINRING
    Steel, 36 teeth
  • CHAIN GUIDE
    Nylon directmount
  • BRAKE LEVER
    Shimano, MT401, Aluminium,
  • BRAKE DISC (FRONT)
    Shimano, RT EM300L, 203 mm
  • BRAKE DISC (REAR)
    Shimano, RT30-L, 203 mm
  • TYRE
    Maxxis, Minion DHF II, 63-622, 29" x 2.5"
  • FRONT WHEEL HUB
    Shimano, MT400-B, Centerlock
  • REAR WHEEL HUB
    Shimano, MT410, Centerlock
  • SPOKES
    Sapim, Race, Black
  • HANDLEBAR
    Haibike Components, TheBar +++, 780 mm
  • STEM
    Haibike Components, TheStem ++, A-head, 31.8 mm
  • HEADSET
    Acros, BlockLock, Aluminium
  • SADDLE
    Selle Royal, Vivo
  • SEAT POST
    Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
  • PEDALS
    Freeridepedal, Aluminium, with Reflector
  • PERMITTED TOTAL WEIGHT
    120.0 kg
  • GEAR SHIFT
    Shimano, Nexus
  • TYRE (REAR)
    Maxxis, Minion DHR II, 66-584, 27.5" x 2.6"
  • RIM (REAR)
    WTB, ST i35 TCS, double wall
Sizing Information
GEOMETRY


SMLXL

A

FRAME HEIGHT (CM)

41.0 cm

44.0 cm

47.0 cm

50.0 cm

B

SEAT TUBE ANGLE

75.0 degrees

75.0 degrees

75.0 degrees

75.0 degrees

C

SEAT TUBE OFFSET (MM)

23.0 mm

23.0 mm

23.0 mm

23.0 mm

D

SEAT ANGLE

77.0 degrees

77.0 degrees

77.0 degrees

76.9 degrees

E

HEAD TUBE LENGTH

120.0 mm

120.0 mm

130.0 mm

140.0 mm

F

HEAD TUBE ANGLE (DEGREES)

64.5 degrees

64.5 degrees

64.5 degrees

64.5 degrees

G

TOP TUBE HORIZONTAL

570.0 mm

600.0 mm

627.0 mm

659.0 mm

H

CHAIN STAY LENGTH

460.0 mm

460.0 mm

460.0 mm

460.0 mm

I

BOTTOM BRACKET DROP

-20.0 mm

-20.0 mm

-20.0 mm

-20.0 mm

J

WHEELBASE

1220.0 mm

1250.0 mm

1279.0 mm

1313.0 mm

K

STACK

646.0 mm

646.0 mm

655.0 mm

664.0 mm

L

REACH

421.0 mm

451.0 mm

475.0 mm

505.0 mm

Professional Opinion

Are you looking for a robust eFully that takes on any terrain? Then our new ALLMTN 3 is the perfect all-rounder for you: With 160 mm travel front and rear, burly 4-piston disc brakes from Shimano and the powerful Yamaha PW-X3 drive, this eMTB takes you smoothly over all trails. Thanks to the mixed wheel sizes of 29" front / 27.5" rear, you will always enjoy perfect traction and master even the steepest uphills and downhills without a problem.
