Frame colour
black/ titan matte/glossy, coffee/ black/ blue

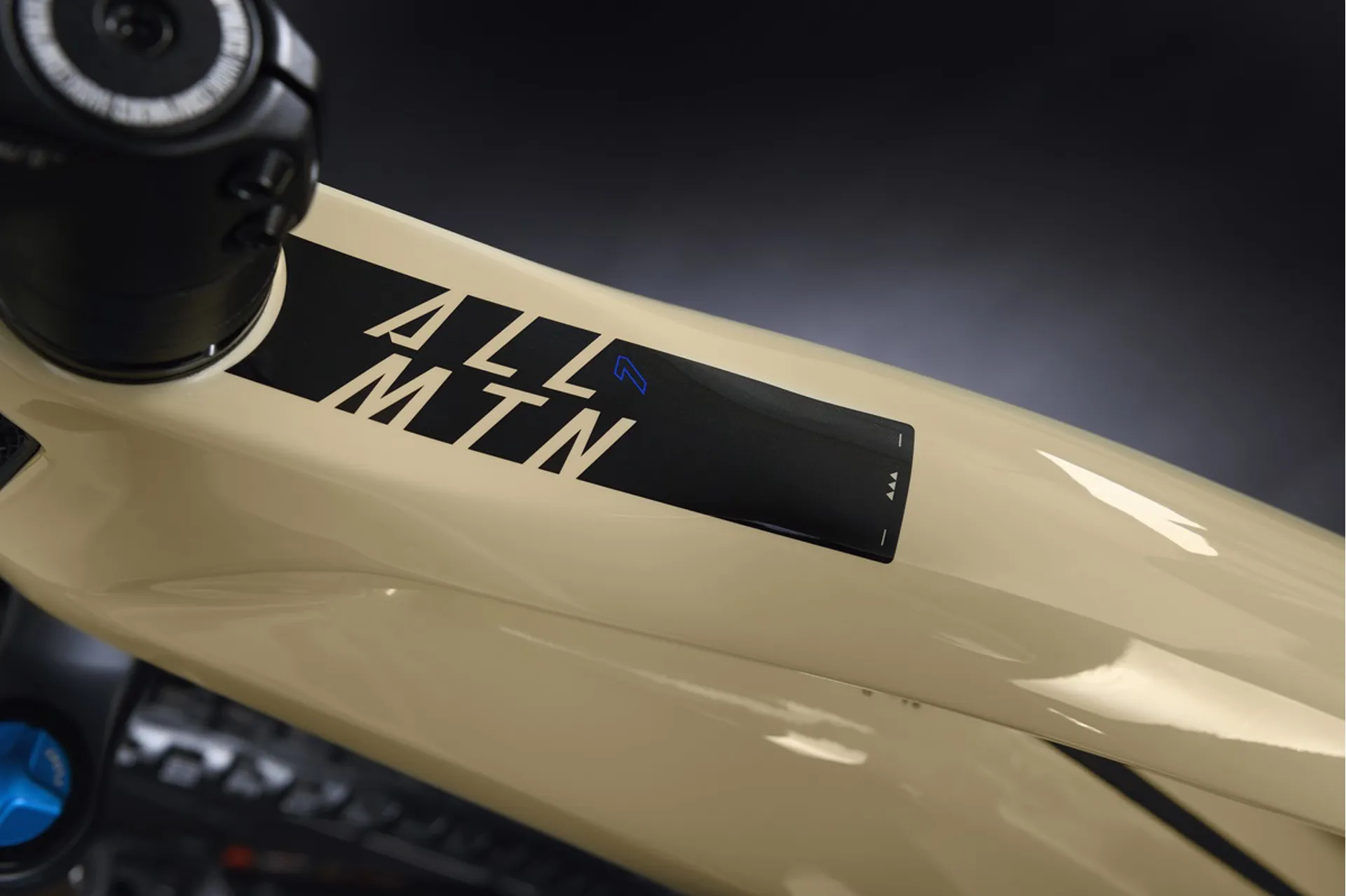

Frame Family
carbon, SkidPlate, Integrated Motor, UD-Carbon Frame, FullCarbon Interface, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 160mm
Fork
FOX 38 Factory Kashima, air, Travel: 160mm
Battery
Yamaha InTube, 750Wh

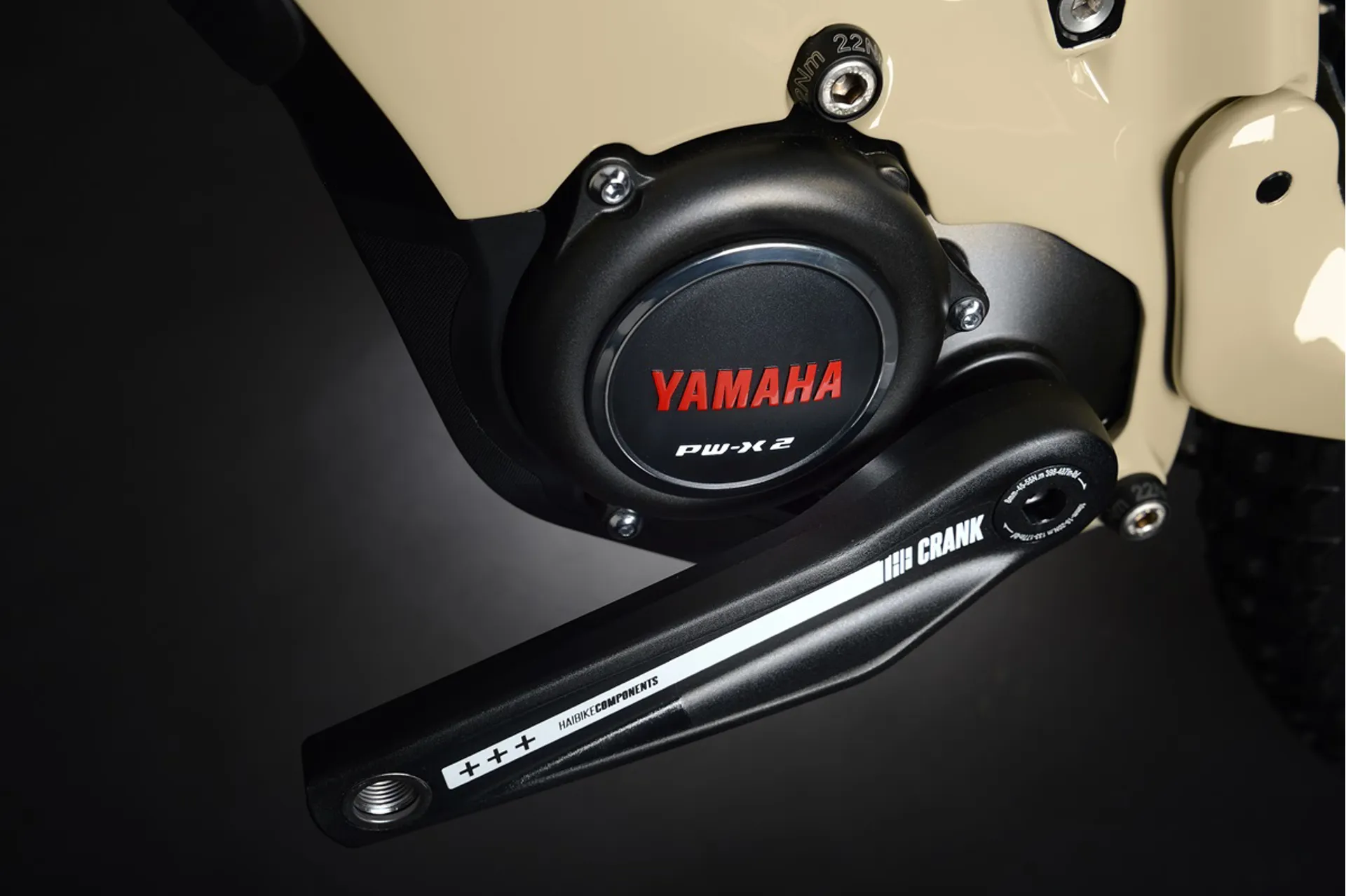

Motor
Yamaha PW-X2, 250W, 80Nm, 25km/h

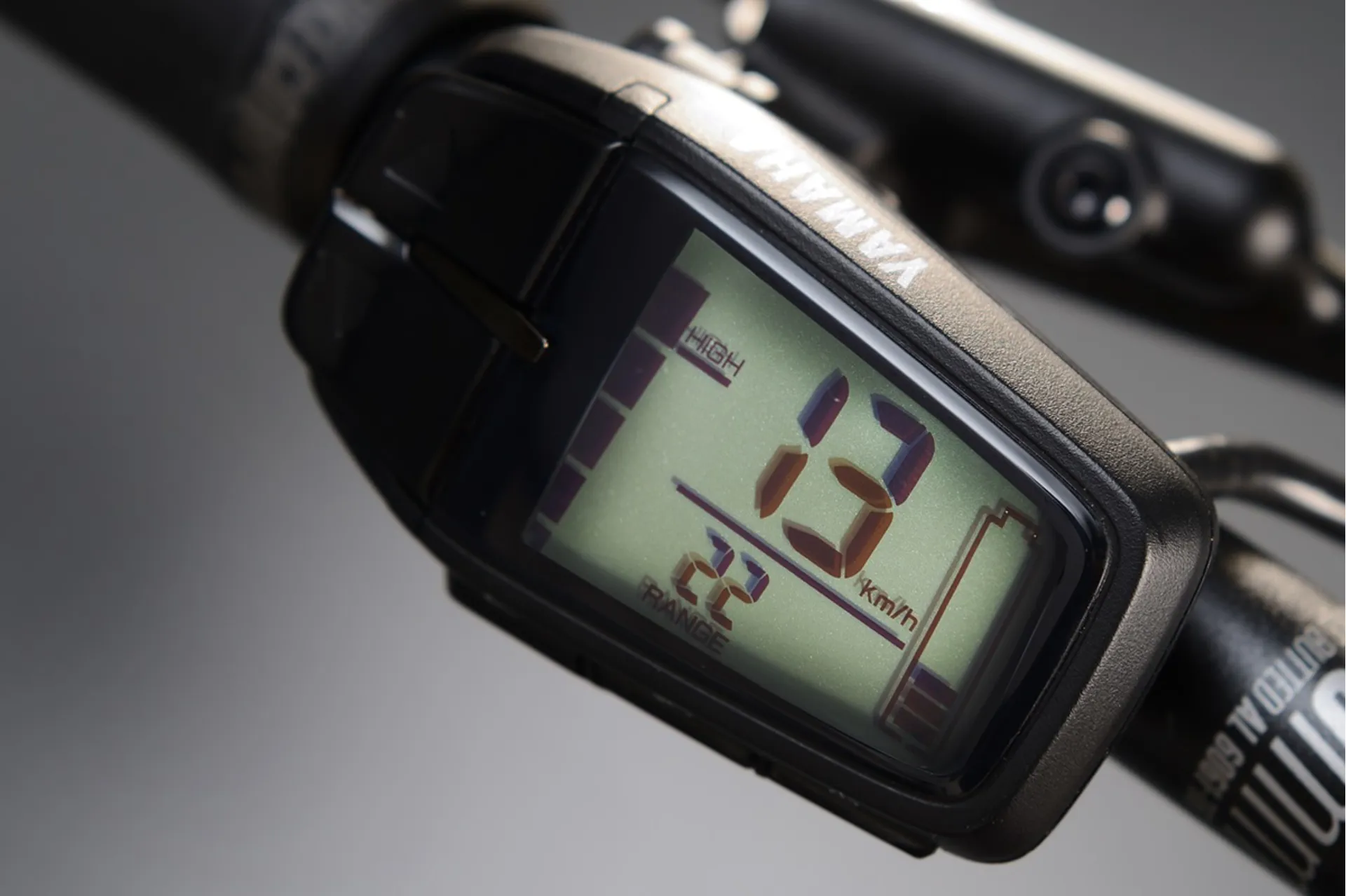

Display
Yamaha Side Switch

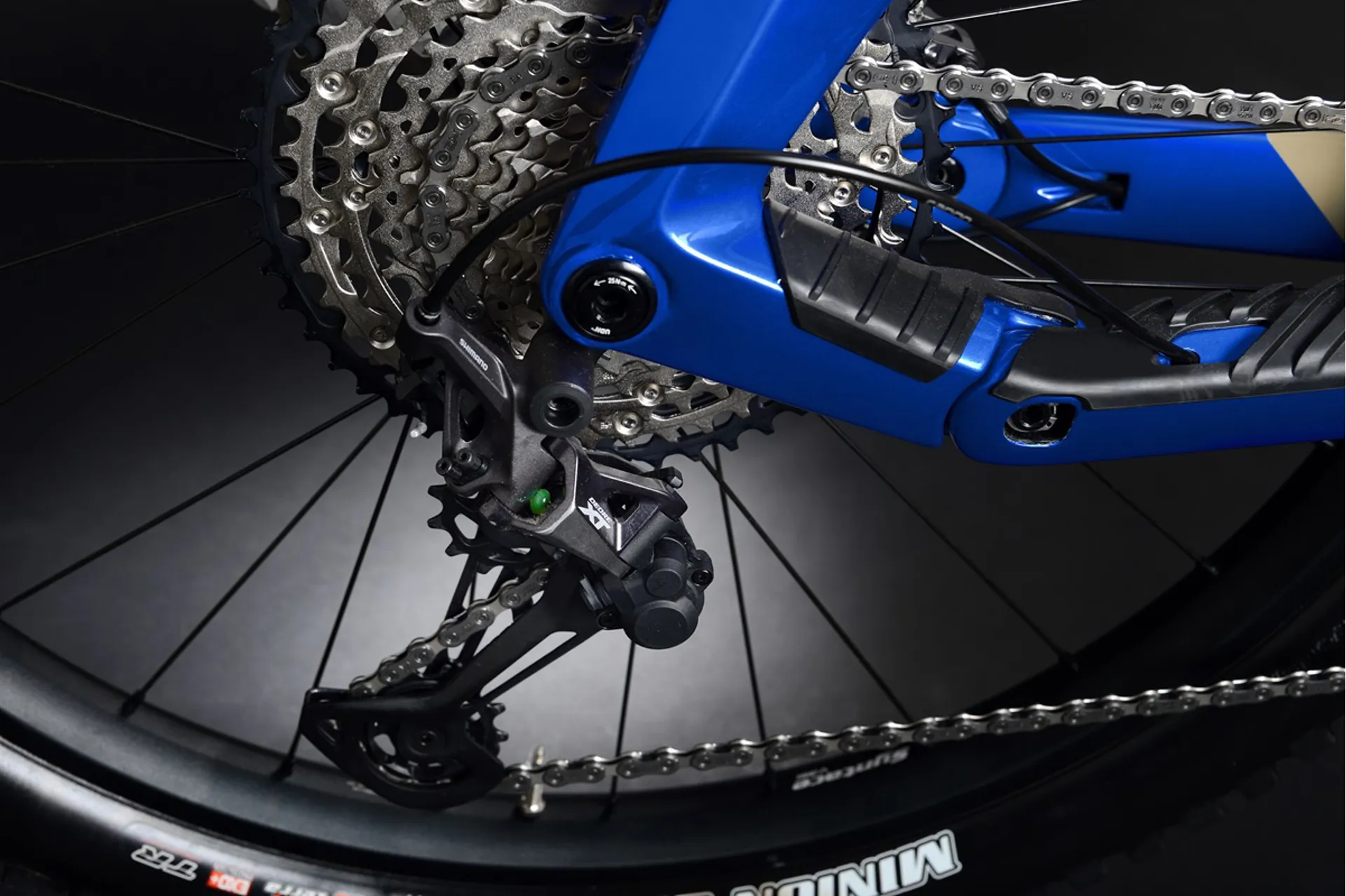

Sprocket
Shimano M7100, 10-51 teeth
Chain Ring
Aluminium, Haibike Components The Chainring, 38
Shift Lever
Shimano Deore XT M8100, trigger switch
Charger
Yamaha quick charger 4A
Brake Lever
Shimano Deore XT M8100, aluminium
Front Wheel Hub
Syntace V Hub
Rear Wheel Hub
Syntace V Hub
Spokes
Syntace Straight Pull butted

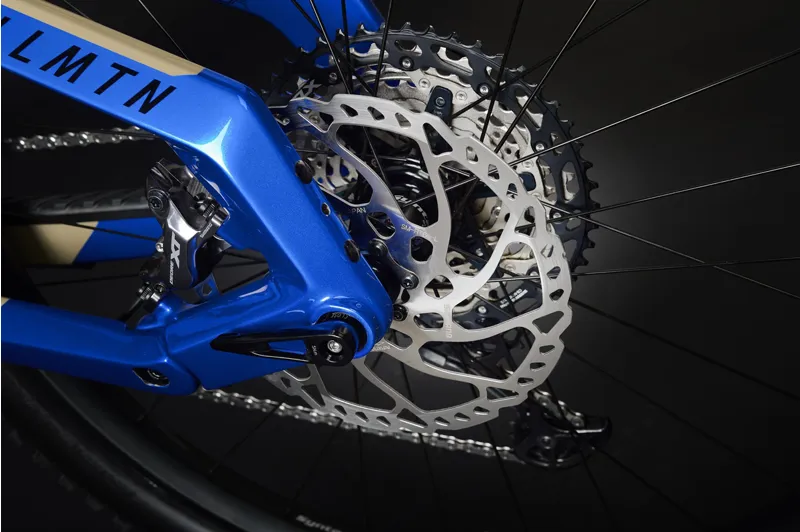

Brake Disc (Front)
Shimano Deore XT M8120, 203mm

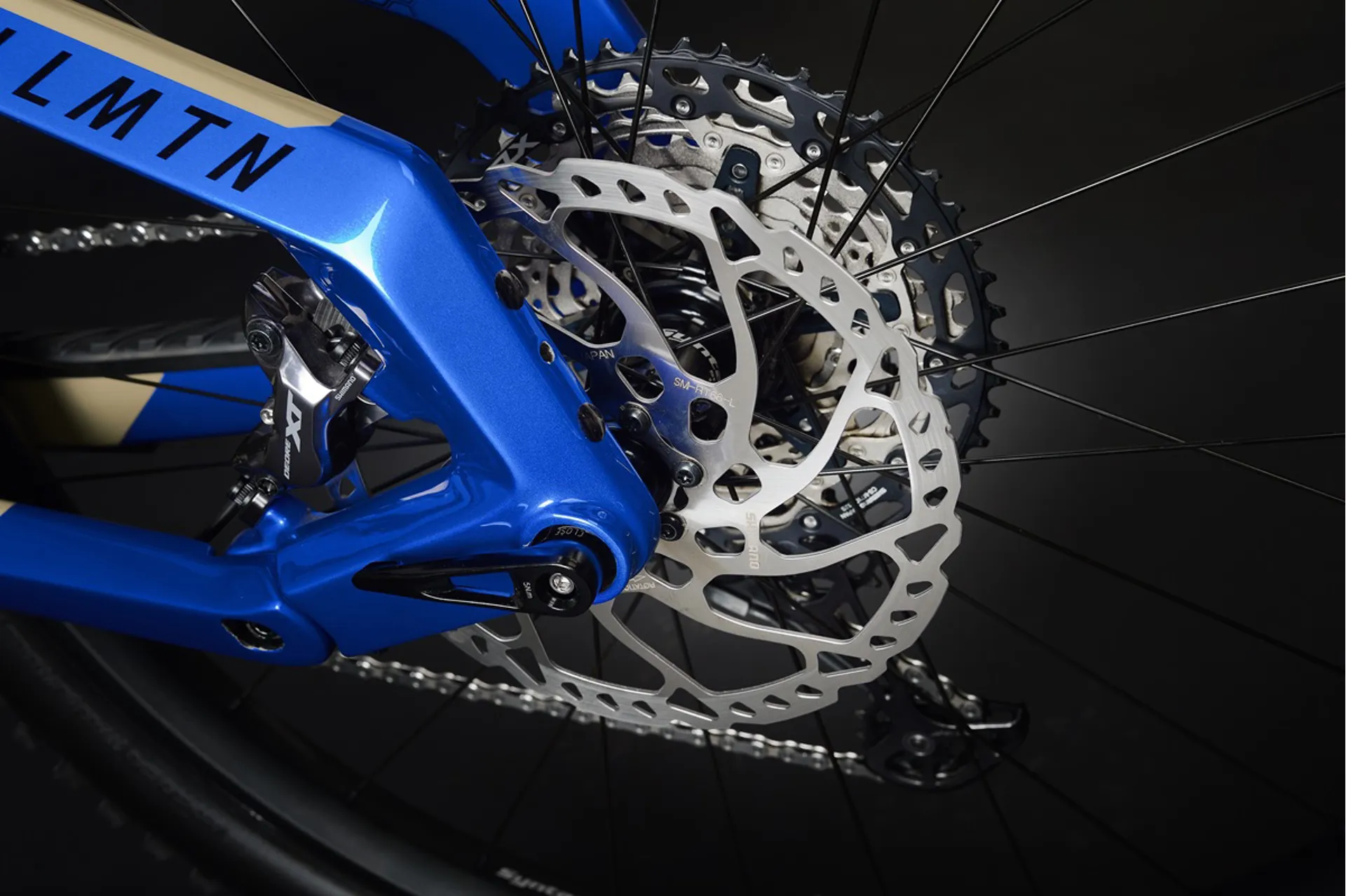

Brake Disc (Rear)
Shimano Deore XT M8120, 203mm
Tyre
Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 71-584
Rim
Syntace V30i, eyed, double-walled rim, aluminium
Handlebar
Haibike Components TheBar +++ Gravity 780mm
Stem
Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
Seat Post
Haibike Components Dropper-Post Remote 31.6, telescope, aluminium
Pedals
Freeridepedal aluminium, mit Reflektor
Permitted Total Weight
120.0 kg

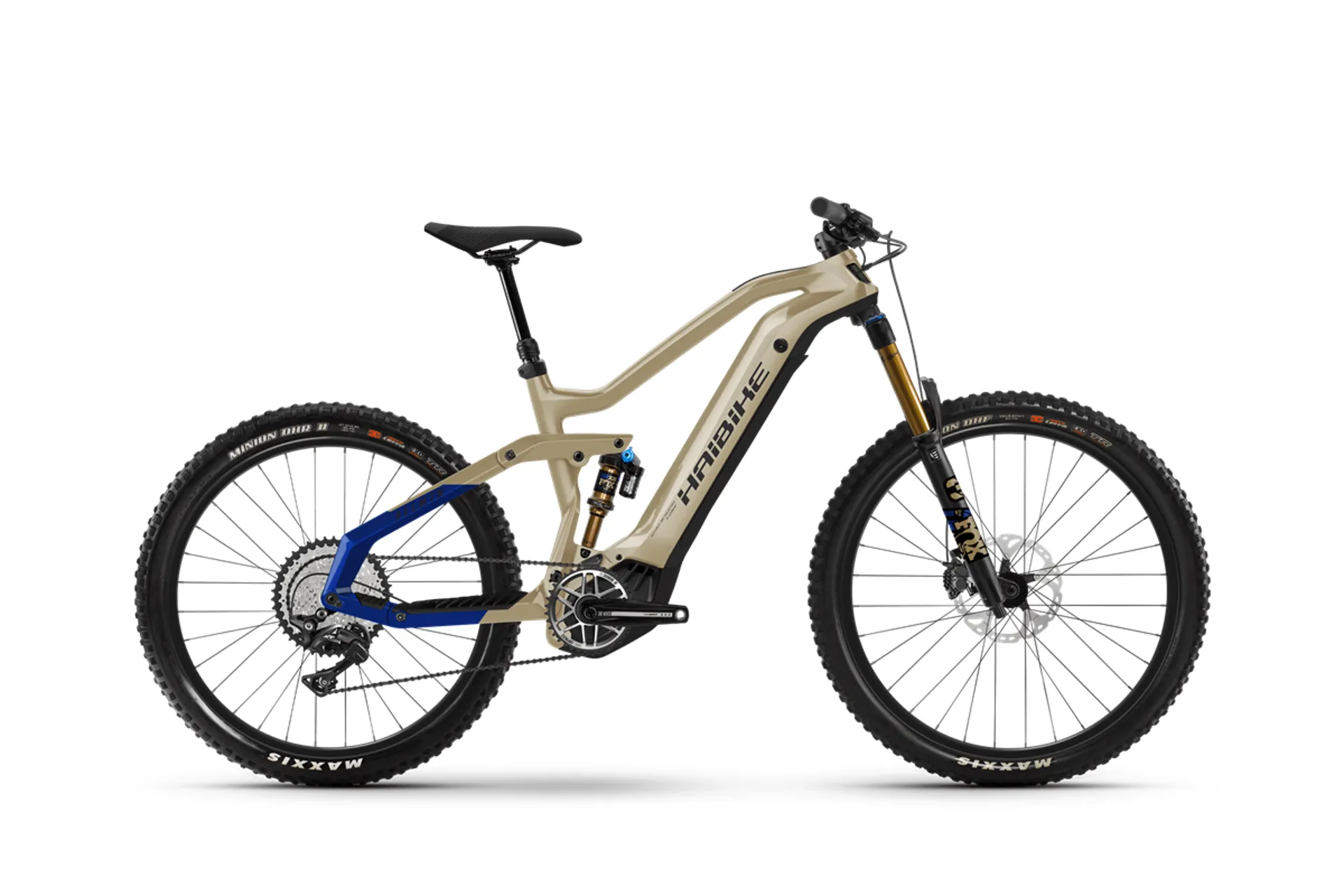

Bicycle Type
MTB All Mountain
Frame height [cm]
41 cm*; 44 cm*; 47 cm*; 51 cm*;
