The all new Haibike Trekking 5 with Yamaha PW-S2 system and 720Wh battery suitable for Heavy riders up to 130Kg
The all new Haibike Trekking 5 with Yamaha PW-S2 system and 720Wh battery suitable for Heavy riders up to 130Kg
Haibike

Haibike Trekking 5 Yamaha eBike PW-S2 720Wh acacia

£2,350.00 £3,249.00 28% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable. If shipping costs are subsidised the actual shipping costs incurred will be recovered from the original payment before any refund is issued. Any charges incurred by us will be recouped before a final eachange or refund value is settled.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. Our actual costs (not the subsidised amount you may have paid) for shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our stores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

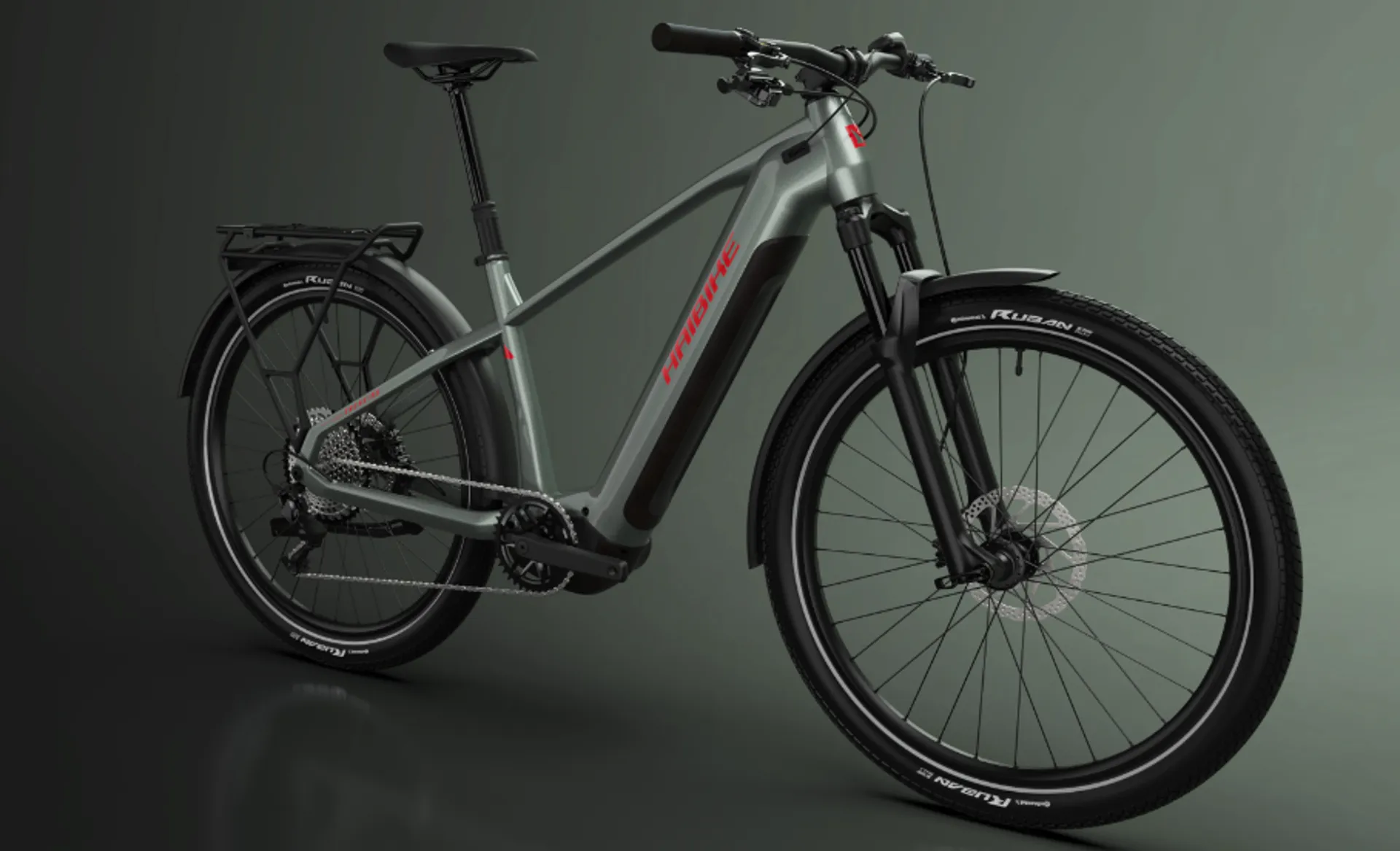

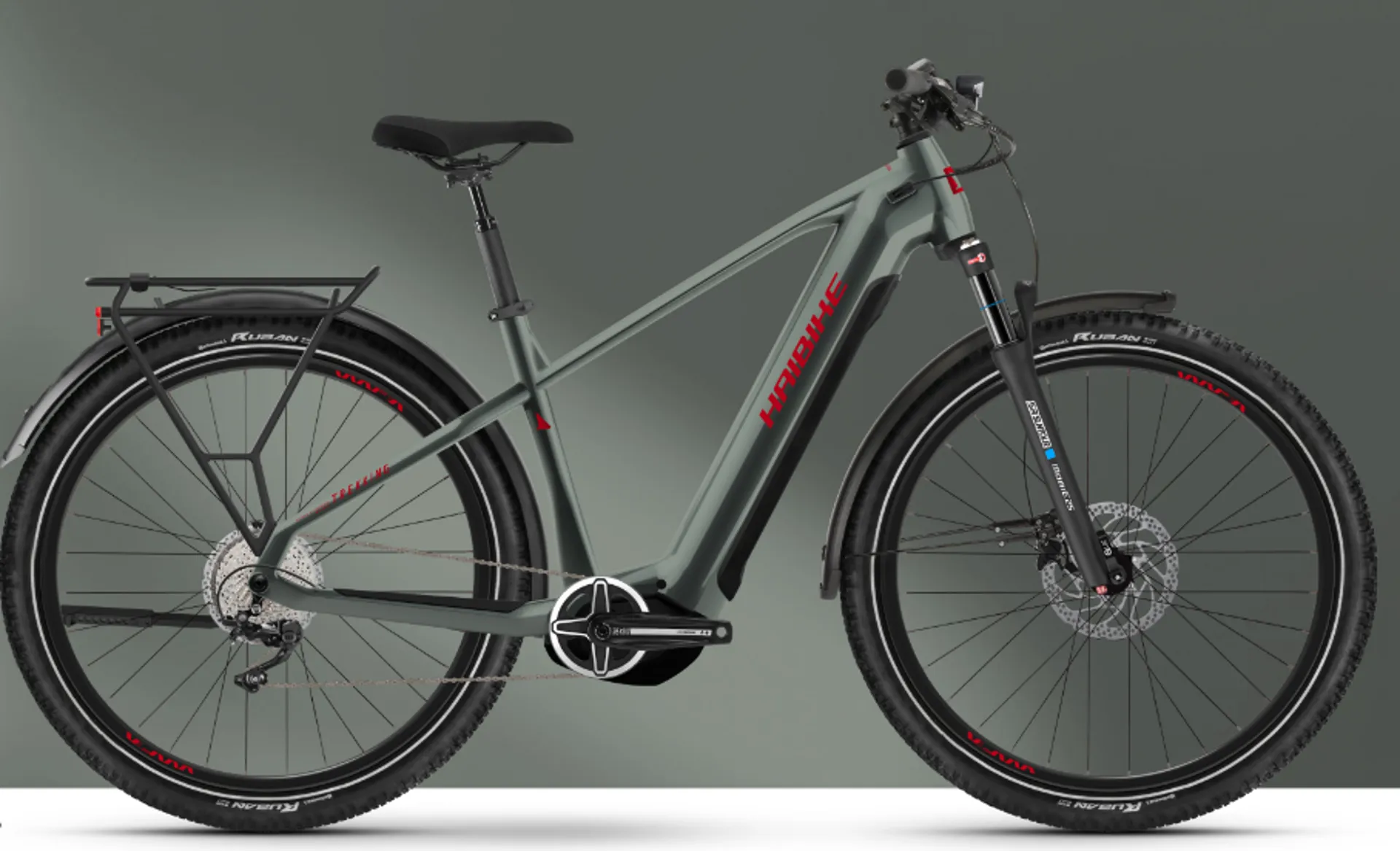

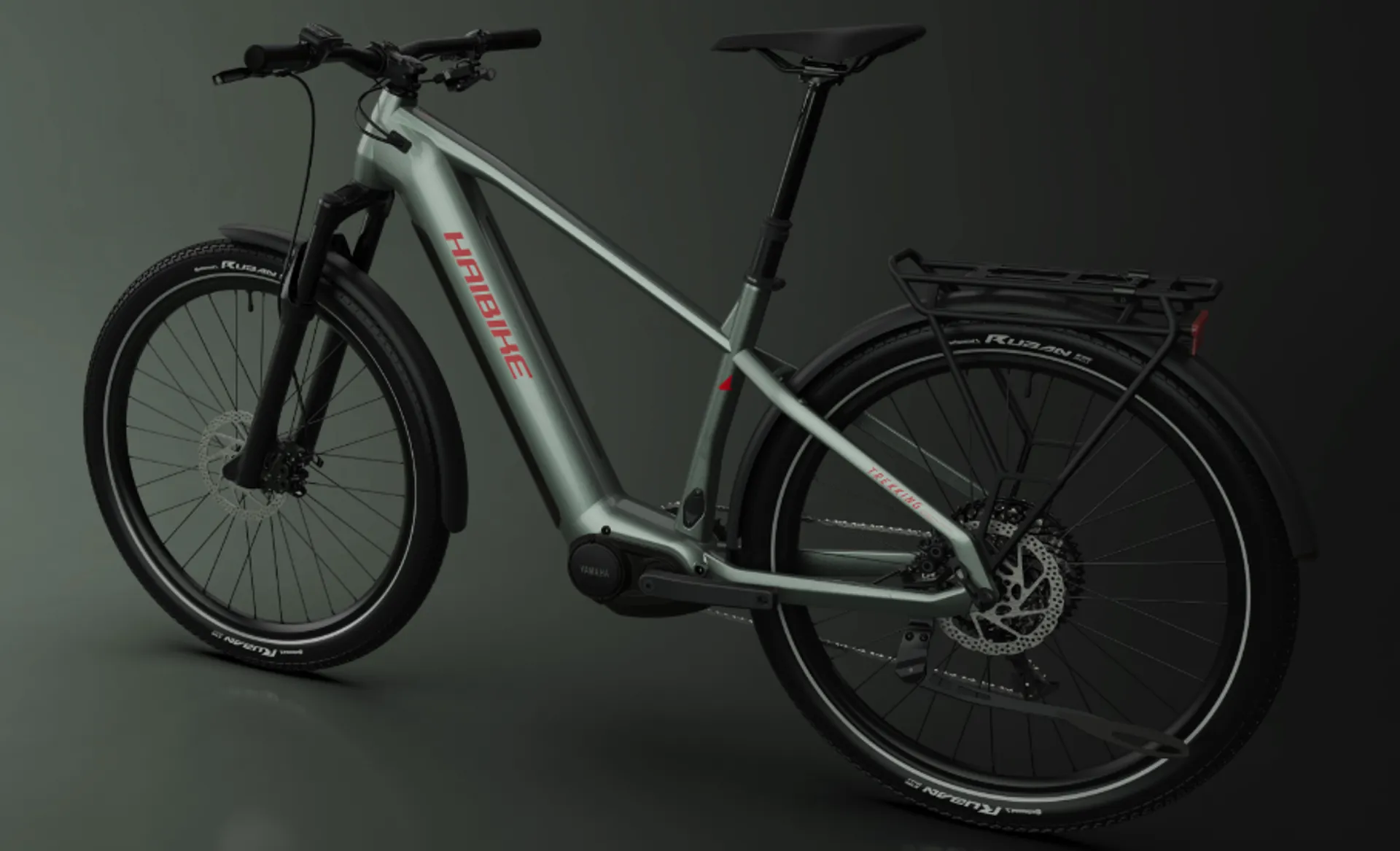

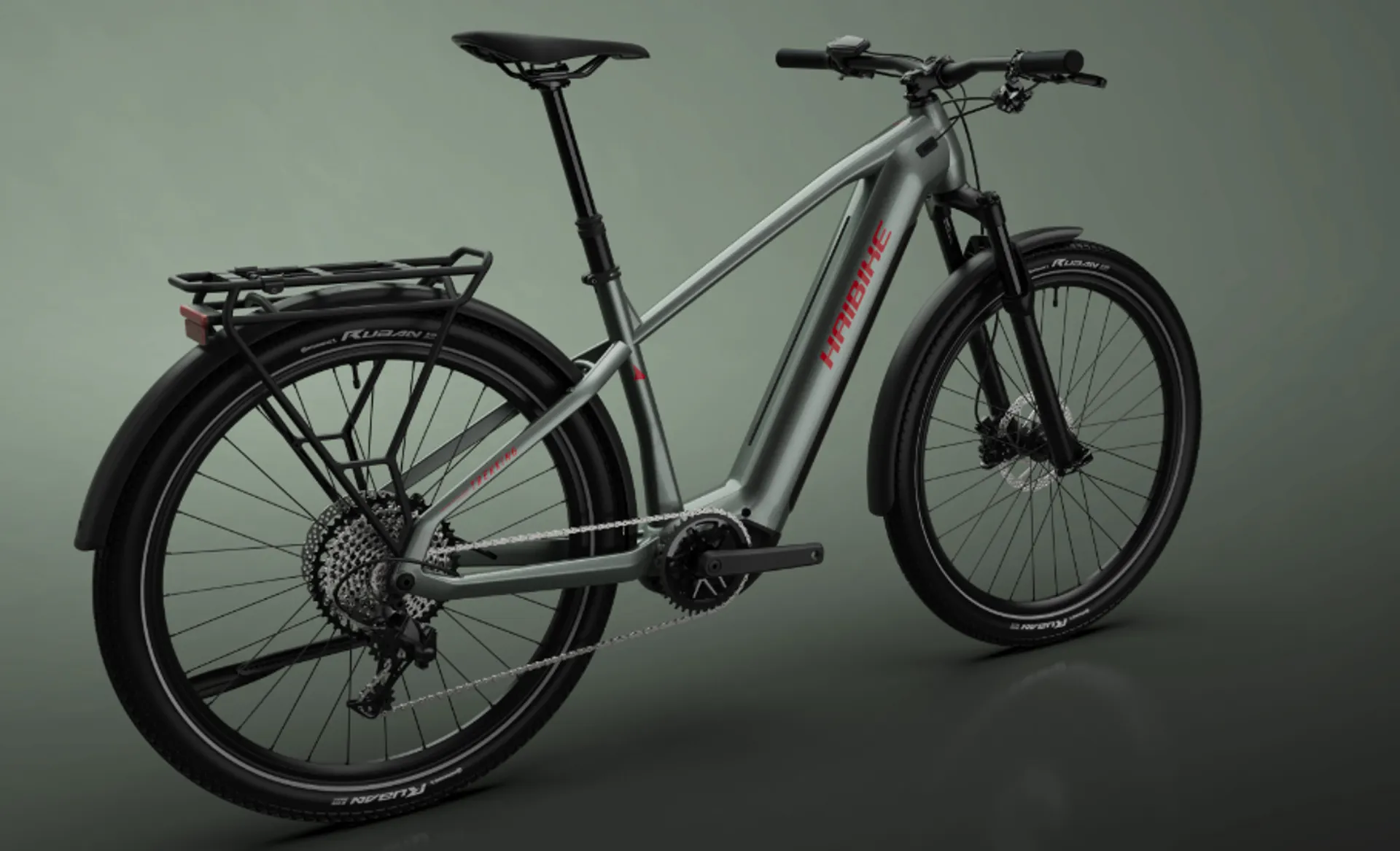

Haibike Trekking 5 Yamaha eBike PW-S2 720Wh acacia

Season:2023

Brand:Haibike

Code:HTMP1RED

The all new Haibike Trekking 5 with Yamaha PW-S2 system and 720Wh battery suitable for heavier riders up to 130Kg

Suitable for:

Commuting, Touring, Leisure on road, tow paths, old railway tracks and forest cycleways. - 100mm travel front suspension

Overview:

The lightweight and powerful Yamaha PW-S2 motor offers you plenty of support with 75 Nm of torque. You can easily carry luggage and tow cargo or large pets.

With the Shimano Deore 11-speed rear derailleur you will always find the right gear ratio even on steep climbs. The 100 mm suspension fork from RockShox and robust 27.5" tyres round out the perfect equipment for moderate off-road use.

eGroupset

The Yamaha PW-S2 motor is so smooth and quiet in it's power delivery and despite being 20% smaller than it's predecessor. You can achieve a lot with the 75Nm of turning force available from this motor ad at only 2.85Kg the Yamaha PW-S2 is very light. Haibike use the complete Yamaha system and so you get Japanese cells in your lithium battery which usually translates into a long life with market leading degredation rate meaning you maintain a long range for longer.
Technical Information

Haibike Trekking 5 Specifications


ENGINE

Yamaha, PW-S2, 250W, 75 Nm


DISPLAY

Side Switch


BATTERY

InTube, 720 Wh


FORK

SR Suntour, Mobie 25 LOR, Lockout, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle


CRANK ARM

Miranda, Kies


BRAKE (FRONT)

Shimano, MT410, Hydraulic disc brakes


BRAKE (REAR)

Shimano, MT410, Hydraulic disc brakes


TUBE

Dunlop valve


RIM

Schürmann, Yak25, with eyelets, hollow rim, Aluminium


CLAMPING RING

Quick Release, Quick release, 38.1 mm


REAR DERAILLEUR

Shimano, Deore M5100


SHIFT LEVER

Shimano, Deore M5100, Trigger switch


BOTTOM BRACKET

integrated in the motor


SPROCKET

Shimano, M5100, 11 - 51 teeth


CHAIN

Shimano, CN-M6100


CHAINRING

Steel, 38 teeth


CHAIN GUIDE

Nylon directmount


BRAKE LEVER

Shimano, MT402, Aluminium,


BRAKE DISC (FRONT)

Shimano, RT30-M, 180 mm


BRAKE DISC (REAR)

Shimano, RT30-M, 180 mm


TYRE

Continental, Ruban Reflex, 27.5" x 2.3"


FRONT WHEEL HUB

Shimano, MT400, Centerlock


REAR WHEEL HUB

Shimano, MT400-B, Centerlock


SPOKES

Sapim, Leader, Black


HANDLEBAR

Ergoriser, oversize, 720 mm


STEM

XLC, A-Head verstellbar, A-head, 31.8 mm


HEADSET

Feimin, A-Head Tapered, Aluminium, Cartridge


SADDLE

Selle Royal, Essenza


SEAT POST

Aluminium, Patent, 34.9 mm


PEDALS

VP, E461, Aluminium, with Reflector


HEADLIGHT

Herrmans, H-Black MR4, 40 lm


REAR LIGHT

Spanninga, Aerline 2 Brake


DYNAMO

via system battery


CARRIER

Systemgepäckträger MIK, 25 kg


FENDERS

Curana, Apollo 70, Aluminium


STAND

Ursus, Mooi, Rear stand


PERMITTED TOTAL WEIGHT

130.0 kg


GEAR SHIFT

Shimano

Sizing Information

Haibike Trekking 5 Sizing Geometry

FRAME SIZE (I.E. S, M, ...)SMLXLXXL
AFRAME HEIGHT (CM)40.0 cm45.0 cm50.0 cm55.0 cm60.0 cm
BSEAT TUBE ANGLE74.0 degrees74.0 degrees74.0 degrees74.0 degrees74.0 degrees
DSEAT ANGLE74.0 degrees74.0 degrees74.0 degrees74.0 degrees74.0 degrees
EHEAD TUBE LENGTH140.0 mm140.0 mm155.0 mm170.0 mm180.0 mm
FHEAD TUBE ANGLE (DEGREES)68.0 degrees68.0 degrees68.0 degrees68.0 degrees68.0 degrees
GTOP TUBE HORIZONTAL610.0 mm620.0 mm635.0 mm658.0 mm680.0 mm
HCHAIN STAY LENGTH465.0 mm465.0 mm465.0 mm465.0 mm465.0 mm
IBOTTOM BRACKET DROP-60.0 mm-60.0 mm-60.0 mm-60.0 mm-60.0 mm
JWHEELBASE1171.0 mm1181.0 mm1198.0 mm1223.0 mm1246.0 mm
KSTACK656.0 mm656.0 mm670.0 mm684.0 mm693.0 mm
LREACH422.0 mm432.0 mm443.0 mm462.0 mm481.0 mm
